Order no.: 1004200052

Documents to download

Format	Name	Size
PDF	Katalogový list	1 045 kB

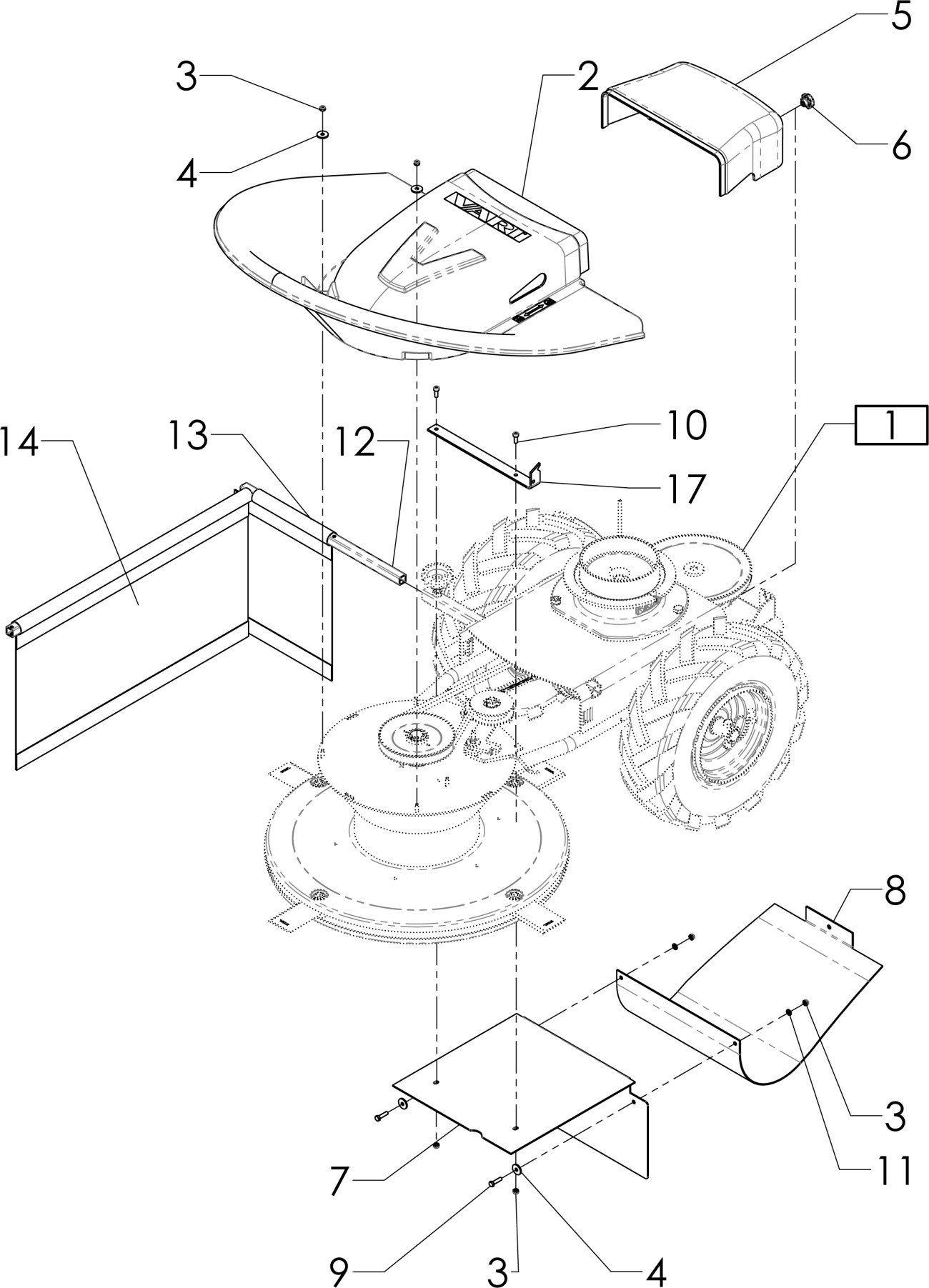

Technical drawing

Spare part list

Position		Name	Order no.	Price incl. VAT
1		BDR-650A Základ #1 2004200054	2004200054
2		in stock Disc cover #2 2004200046	2004200046	1 294,70 Kč	1 294,70 Kč
3		in stock Nut #3 105518	105518	0,60 Kč	0,60 Kč
4		in stock Washer #4 189589	189589	1,20 Kč	1,20 Kč
5		in stock Upper gearbox cover #5 2004200058	2004200058	665,50 Kč	665,50 Kč
6		in stock Star grip #6 51321461064	51321461064	37,50 Kč	37,50 Kč
7		in stock Lower frame cover #7 3001400010	3001400010	242,00 Kč	242,00 Kč
8		in stock Lower gearbox cover #8 3003900021	3003900021	319,40 Kč	319,40 Kč
9		in stock Bolt #9 51309503117	51309503117	1,20 Kč	1,20 Kč
10		last 2 pcs Bolt #10 182516	182516	1,80 Kč	1,80 Kč
11		in stock Washer #11 189581	189581	0,60 Kč	0,60 Kč
12		in stock Screen holder #12 2005100011	2005100011	1 125,30 Kč	1 125,30 Kč
13		in stock Rear screen #13 3005100013	3005100013	102,80 Kč	102,80 Kč
14		in stock Side screen #14 3005100012	3005100012	205,70 Kč	205,70 Kč
15		Label #15 3004200056	3004200056
16		unavailable Sticker - VARI #16 3003500030	3003500030
17		Spring stopper #17 3004200045	3004200045
