Belt Protections

Belt Protections

Order no.: RL98H-10

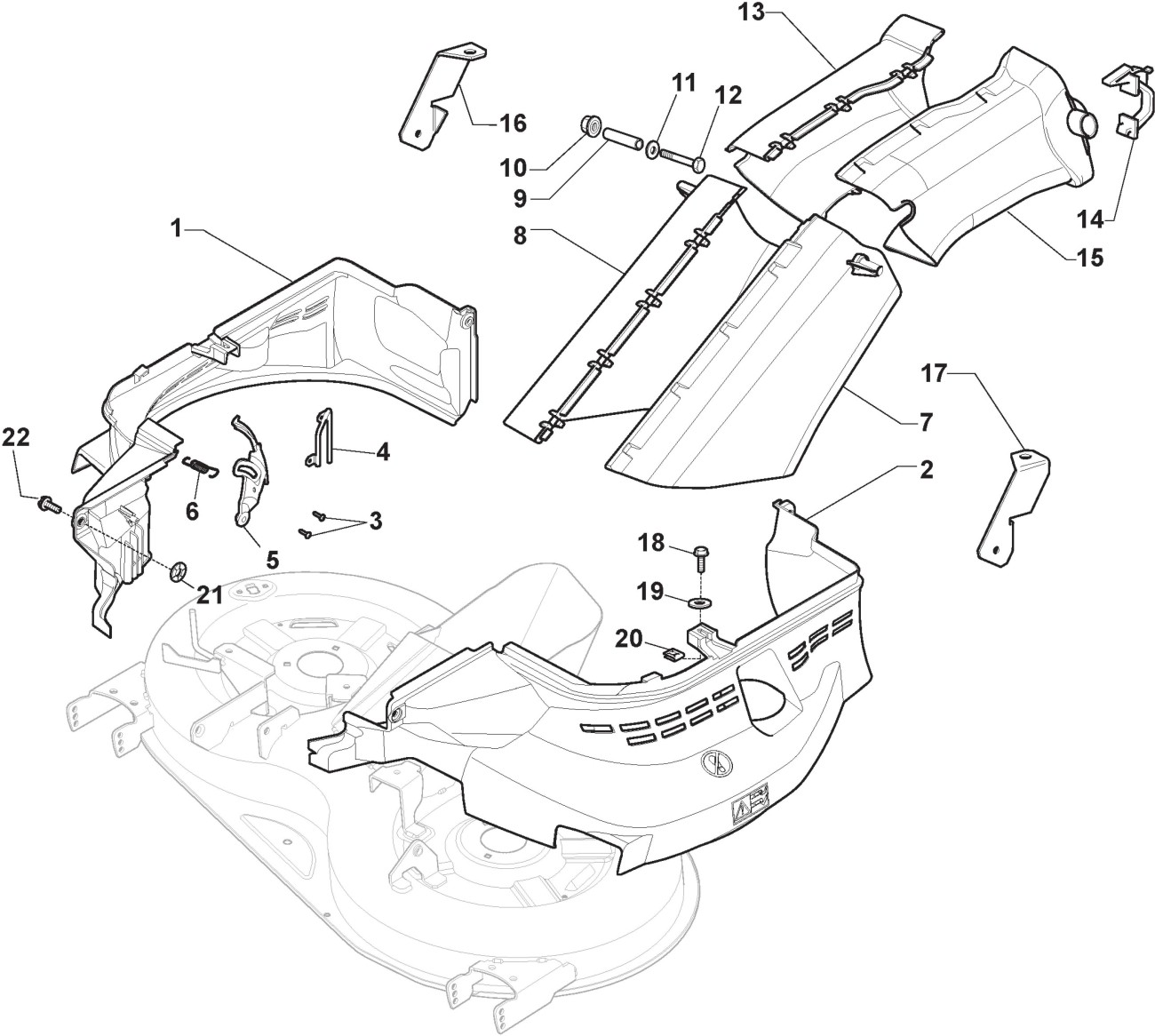

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Conveyor #1 325060174	325060174
2	Conveyor #2 325060175	325060175
3	Screw #3 112735110	112735110
4	Bracket #4 382270309	382270309
5	Bracket #5 325547346	325547346
6	Spring #6 125430213	125430213
7	? 0 pcs in stock Conveyor #7 325108065	325108065	496,10 Kč	496,10 Kč
8	Conveyor #8 325108064	325108064
9	Spacer #9 125160071	125160071
9	Spacer #9 125160109	125160109
10	last 3 pcs Nut #10 112154510	112154510	36,30 Kč	36,30 Kč
11	Washer #11 112521340	112521340
12	Screw #12 112792425	112792425
13	Conveyor #13 325108056	325108056
14	? 0 pcs in stock Clamp #14 325774499	325774499	72,60 Kč	72,60 Kč
15	? 0 pcs in stock Conveyor #15 325108057	325108057	375,10 Kč	375,10 Kč
16	? 0 pcs in stock Clamp #16 325774527	325774527	90,80 Kč	90,80 Kč
17	Clamp #17 325774529	325774529
18	Screw #18 112789008	112789008
19	? 0 pcs in stock Washer #19 112523020	112523020	43,60 Kč	43,60 Kč
20	? 0 pcs in stock Plate #20 112437503	112437503	54,40 Kč	54,40 Kč
21	? 0 pcs in stock Crown Fastener #21 112604899	112604899	43,60 Kč	43,60 Kč
22	? 0 pcs in stock Screw #22 125943011	125943011	266,20 Kč	266,20 Kč
