Engine - Carburettor, Tank
Engine - Carburettor, Tank
Engine - Carburettor, Tank
Order no.:
RL98H-17

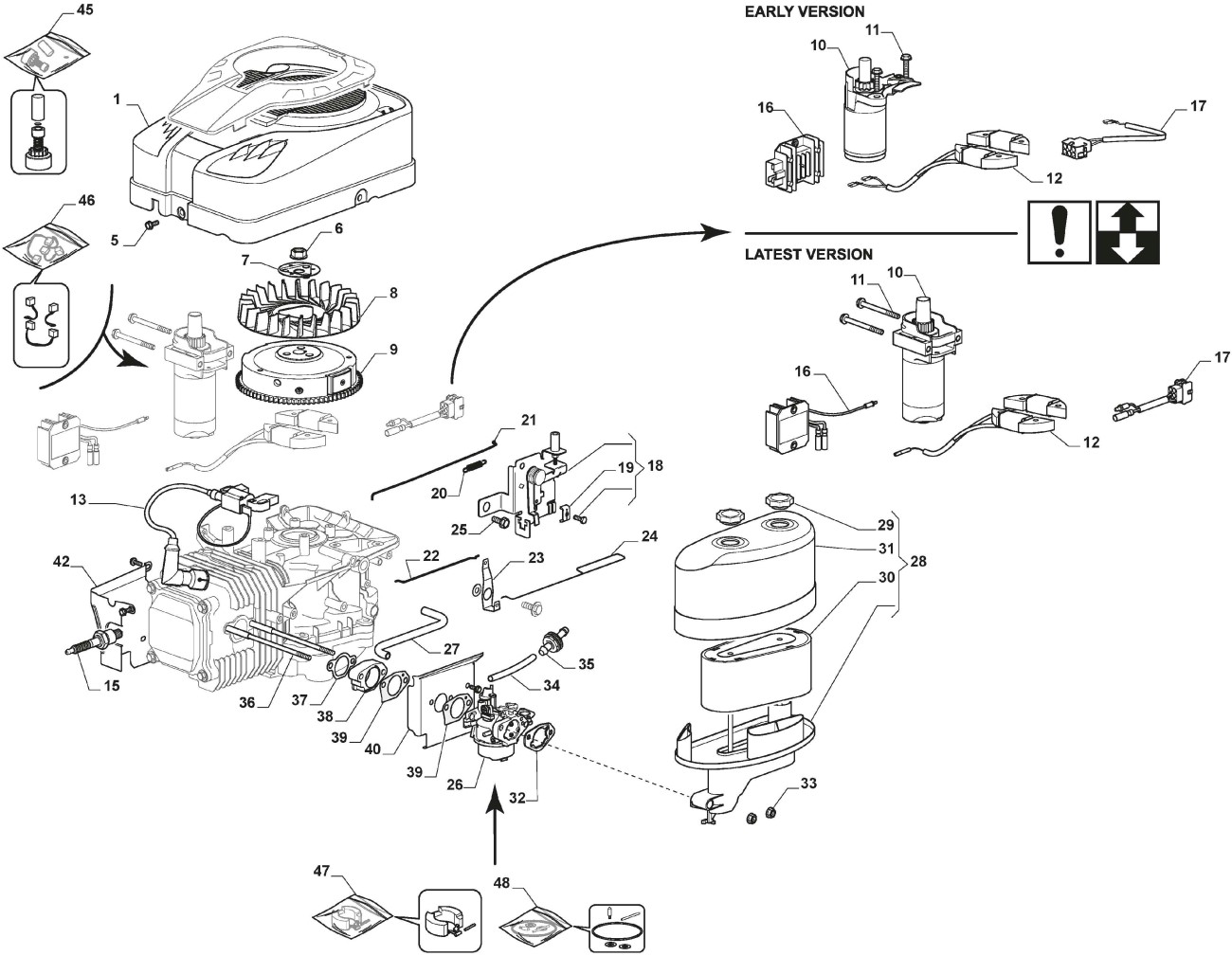

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
1
Cover
#1
118550516
118550516
Question
5
?
0 pcs in stock
Screw
#5
112791213
112791213
60,50 Kč
Buy
60,50 Kč
6
Nut
#6
118550237
118550237
Question
7
?
0 pcs in stock
Starter Cup
#7
118550236
118550236
175,40 Kč
Buy
175,40 Kč
8
?
0 pcs in stock
Flywheel Fan
#8
118550235
118550235
713,90 Kč
Buy
713,90 Kč
9
Flywheel Ass.Y
#9
118550234
118550234
Question
10
Start Motor Assy
#10
118551440
118551440
Replacement
11
Screw
#11
112691100
112691100
Question
12
Coil Assy, Charge
#12
118551441
118551441
Question
13
last 1 pc
Elettronic Coil
#13
118551438
118551438
1 210,00 Kč
Buy
1 210,00 Kč
15
in stock
Spark Plug
#15
9400024400
9400024400
121,00 Kč
Buy
121,00 Kč
16
last 1 pc
Rectfier
#16
118551428
118551428
1 258,40 Kč
Buy
1 258,40 Kč
17
Output Wire, Rectifier
#17
118551439
118551439
Question
18
Remote Control Assy
#18
118550331
118550331
Question
19
Casing Clamp
#19
118550212
118550212
Question
20
Spring
#20
118550213
118550213
Question
21
Governor Link
#21
118551219
118551219
Question
22
Rod Choke
#22
118551218
118551218
Question
23
?
0 pcs in stock
Bracket
#23
118551267
118551267
159,70 Kč
Buy
159,70 Kč
24
Throttle Rod
#24
118551221
118551221
Question
25
Bolt
#25
118551277
118551277
Question
26
last 1 pc
Carburetor
#26
118551515
118551515
1 936,00 Kč
Buy
1 936,00 Kč
27
Breather Fule Pipe
#27
118550225
118550225
Question
28
Air Cleaner Assy
#28
118550202
118550202
Replacement
29
last 1 pc
Knob
#29
118550201
118550201
214,20 Kč
Buy
214,20 Kč
30
in stock
Air Filter
#30
118550199
118550199
580,80 Kč
Buy
580,80 Kč
31
Air Cleaner Cover
#31
118550200
118550200
Question
32
?
0 pcs in stock
Air Filter Gasket
#32
118550762
118550762
181,50 Kč
Buy
181,50 Kč
33
?
0 pcs in stock
Nut
#33
112292102
112292102
48,40 Kč
Buy
48,40 Kč
34
Fuel Pipe
#34
118551514
118551514
Question
35
Fuel Filter
#35
118550354
118550354
Replacement
36
Double-Screw Bolt
#36
118551279
118551279
Question
37
?
0 pcs in stock
Intake Manifold Gasket
#37
118551263
118551263
53,20 Kč
Buy
53,20 Kč
38
last 1 pc
Intake Manifold
#38
118551265
118551265
181,50 Kč
Buy
181,50 Kč
39
?
0 pcs in stock
Carburetor Gasket
#39
118551262
118551262
53,20 Kč
Buy
53,20 Kč
40
Guard
#40
118551259
118551259
Question
42
Guard
#42
118551260
118551260
Question
45
Kit Repair
#45
118550365
118550365
Question
46
Brushhold
#46
118550332
118550332
Question
47
Kit Repair, Carburettor
#47
118550440
118550440
Question
48
Carburettor Gasket Set
#48
118550442
118550442
Question
