Cutting Plate Lifting

Cutting Plate Lifting

Order no.: RL84H-7

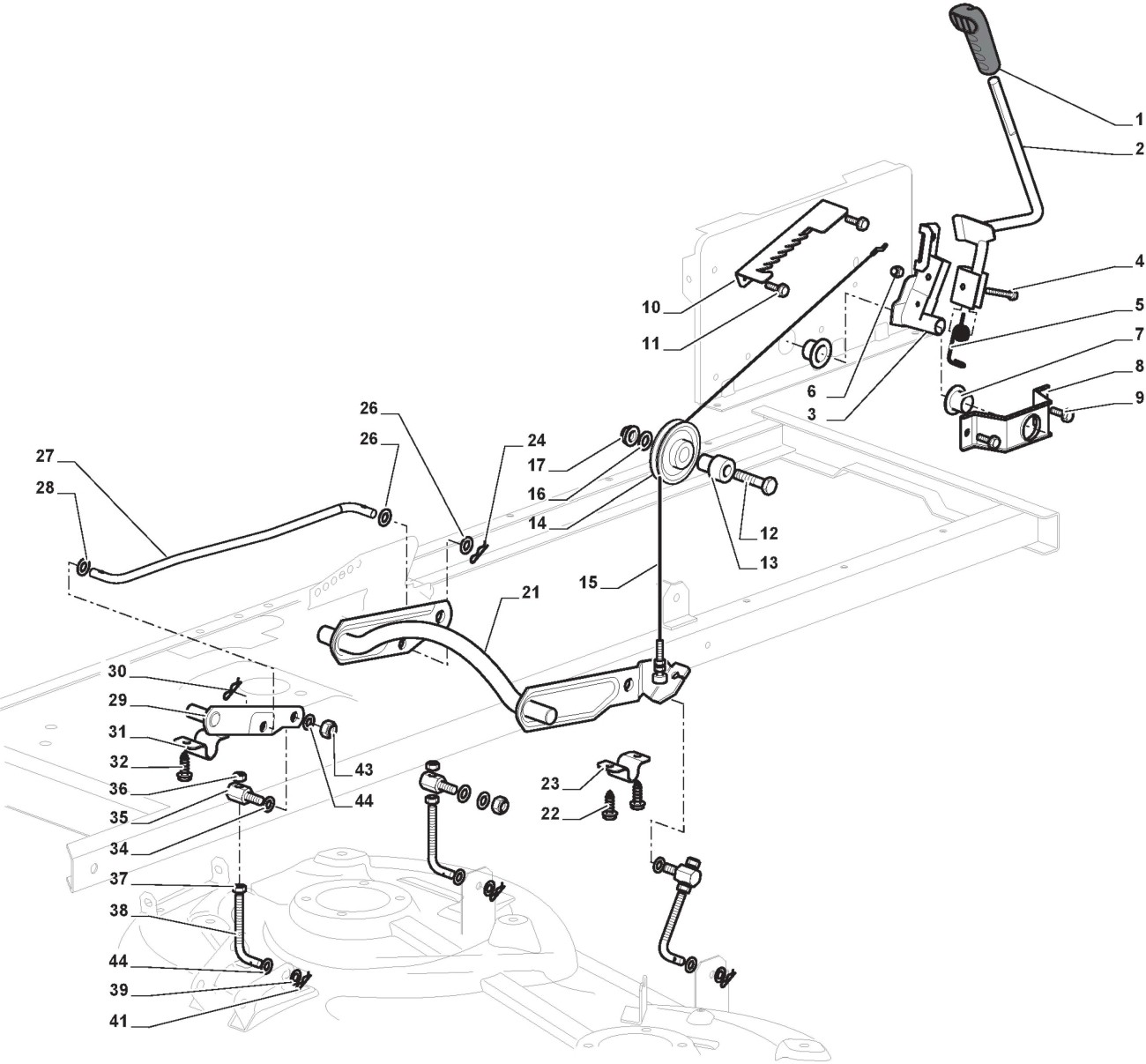

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Knob #1 325394533	325394533
2	Lever #2 382318255	382318255
3	Lifting Axle Assy #3 382318231	382318231
4	Screw #4 112674700	112674700
5	Spring #5 125430261	125430261
6	last 3 pcs Nut #6 112154510	112154510	36,30 Kč	36,30 Kč
7	Bushing #7 325038006	325038006
8	Support #8 325785297	325785297
9	Screw #9 125943009	125943009
10	Steering Sector #10 325735515	325735515
11	Screw #11 125943009	125943009
12	Screw #12 112793701	112793701
13	Bushing #13 125040636	125040636
14	Pulley #14 125601579	125601579
15	last 3 pcs Wire #15 382004620	382004620	440,40 Kč	440,40 Kč
16	Washer #16 112523060	112523060
17	Nut #17 112293201	112293201
21	last 1 pc Axle #21 382318297	382318297	726,00 Kč	726,00 Kč
22	Screw #22 112735599	112735599
23	Plate #23 325547231	325547231
24	Cotter Pin #24 124487997	124487997
24	Cotter Pin #24 124487997	124487997
26	Antifriction Washer #26 325670010	325670010
26	Antifriction Washer #26 325670010	325670010
27	Connecting Rod #27 125033109	125033109
29	Axle #29 382318293	382318293
31	Plate #31 325547231	325547231
32	Screw #32 112735599	112735599
34	Washer #34 325670008	325670008
34	Washer #34 325670008	325670008
35	Pin #35 125510170	125510170
36	Nut #36 112156602	112156602
37	Nut #37 112295200	112295200
38	? 0 pcs in stock Tie Rod #38 125840012	125840012	423,50 Kč	423,50 Kč
41	Cotter Pin #41 124487998	124487998
43	Nut #43 112156602	112156602
44	? 0 pcs in stock Washer #44 112521360	112521360	43,60 Kč	43,60 Kč
