Home
SPARE PARTS
VARI LAWNMOWERS AND LAWN TRACTORS
3556 VARI RL 98 H
Brake And Gearbox Controls
Brake And Gearbox Controls
Brake And Gearbox Controls
Order no.:
RL84H-5

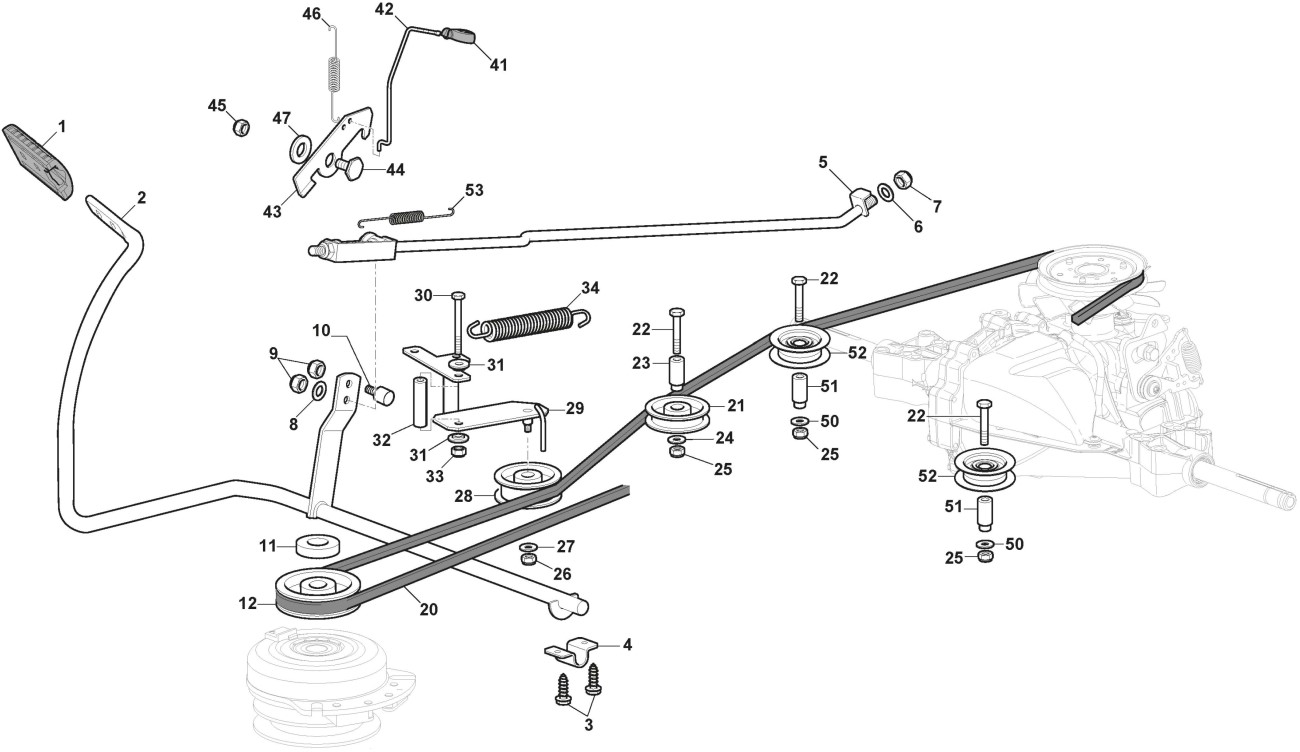

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
1
Clamp Cover
#1
325110409
325110409
Inquiry
2
Pedal
#2
382000641
382000641
Inquiry
3
Screw
#3
112735599
112735599
Inquiry
4
Plate
#4
325547231
325547231
Inquiry
5
Rod
#5
382000636
382000636
Inquiry
6
?
0 pcs in stock
Washer
#6
112521360
112521360
43,60 Kč
Buy
43,60 Kč
7
Nut
#7
112156602
112156602
Inquiry
8
Antifriction Washer
#8
325670011
325670011
Inquiry
9
?
0 pcs in stock
Nut
#9
112155000
112155000
42,40 Kč
Buy
42,40 Kč
10
Pin
#10
125510166
125510166
Inquiry
11
Spacer
#11
125160021
125160021
Inquiry
12
?
0 pcs in stock
Pulley
#12
125601577
125601577
1 270,50 Kč
Buy
1 270,50 Kč
20
in stock
Trapezoidal Belt
#20
135062020
135062020
1 331,00 Kč
Buy
1 331,00 Kč
21
less than 5 pcs
Pulley
#21
325601599
325601599
484,00 Kč
Buy
484,00 Kč
22
Screw
#22
112691400
112691400
Inquiry
23
Spacer
#23
125160107
125160107
Inquiry
24
Washer
#24
112523060
112523060
Inquiry
24
Washer
#24
112523060
112523060
Inquiry
24
Washer
#24
112523060
112523060
Inquiry
25
?
0 pcs in stock
Nut
#25
112155000
112155000
42,40 Kč
Buy
42,40 Kč
26
?
0 pcs in stock
Nut
#26
112155000
112155000
42,40 Kč
Buy
42,40 Kč
28
last 1 pc
Pulley
#28
125601554
125601554
726,00 Kč
Buy
726,00 Kč
29
?
0 pcs in stock
Lever
#29
382318245
382318245
544,50 Kč
Buy
544,50 Kč
30
Screw
#30
112691600
112691600
Inquiry
31
Bushing
#31
125038021
125038021
Inquiry
32
Spacer
#32
125160027
125160027
Inquiry
33
?
0 pcs in stock
Nut
#33
112155000
112155000
42,40 Kč
Buy
42,40 Kč
34
Spring
#34
125430262
125430262
Inquiry
41
Knob
#41
325394534
325394534
Inquiry
42
Rod
#42
125033113
125033113
Inquiry
43
Hook
#43
325253011
325253011
Inquiry
44
Pin
#44
122524970
122524970
Inquiry
45
?
0 pcs in stock
Nut
#45
112155000
112155000
42,40 Kč
Buy
42,40 Kč
46
Spring
#46
125430213
125430213
Inquiry
50
last 1 pc
Washer
#50
112521350
112521350
48,40 Kč
Buy
48,40 Kč
51
Spacer
#51
125160111
125160111
Inquiry
52
Pulley
#52
125601608
125601608
Replacement
53
Spring
#53
125430269
125430269
Inquiry
