ENGINE II

ENGINE II

Order no.: MP1504-L10

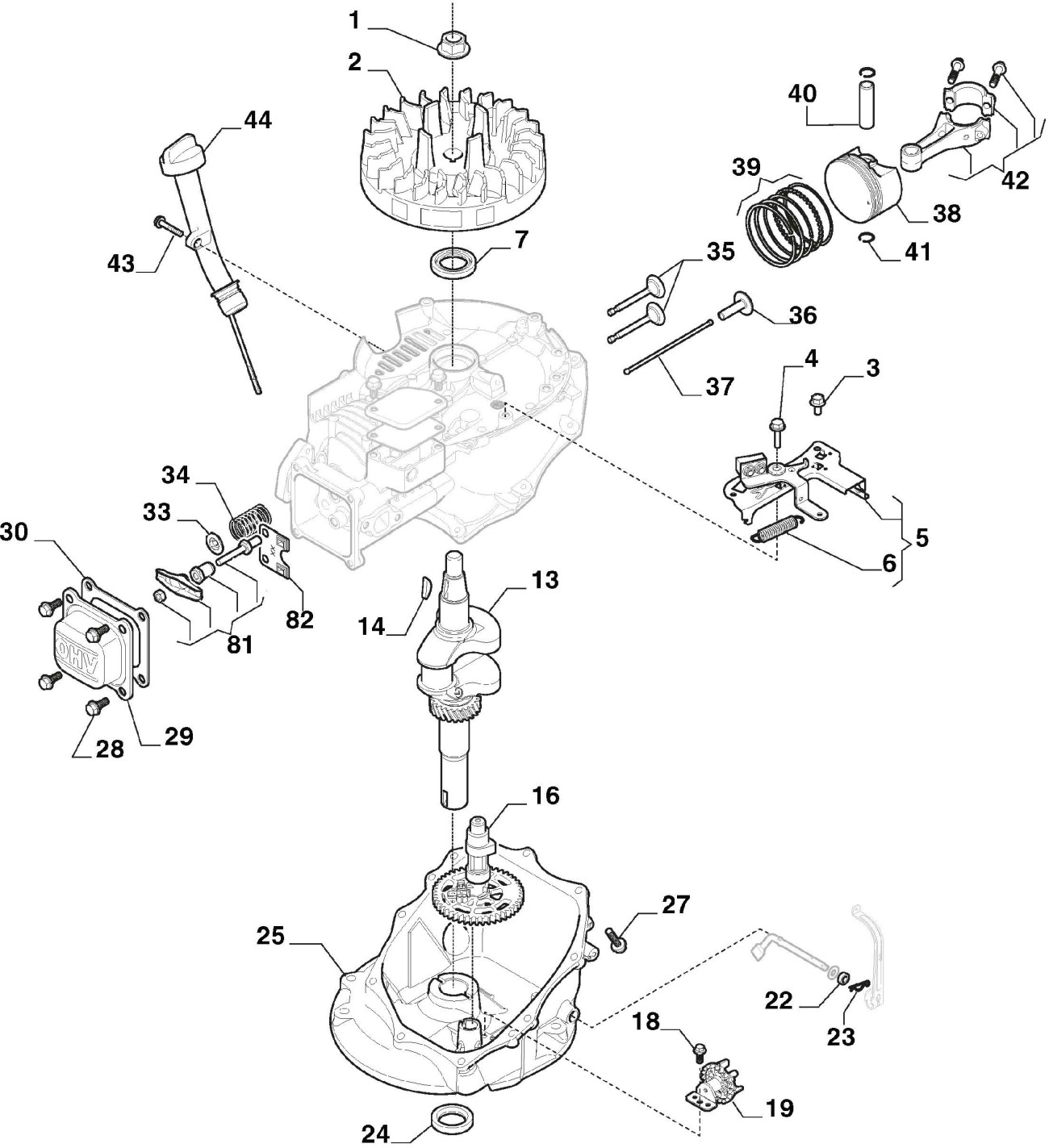

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Nut #1 118550336	118550336
2	Flywheel Ass.Y #2 118552512	118552512
3	Bolt #3 118551277	118551277
4	Screw #4 112791500	112791500
5	Flywheel Brake/Stop Switch Assy #5 118551486	118551486
6	Spring #6 118551522	118551522
7	? 0 pcs in stock Oil Seal #7 118550300	118550300	169,40 Kč	169,40 Kč
13	last 1 pc Crankshaft #13 118551484	118551484	3 146,00 Kč	3 146,00 Kč
14	? 0 pcs in stock Woodruff Key #14 118550288	118550288	145,20 Kč	145,20 Kč
16	? 0 pcs in stock Camshaft Assy #16 118551448	118551448	871,20 Kč	871,20 Kč
18	Screw #18 112789000	112789000
19	Speed Governor Assy #19 118551460	118551460
22	Oil Seal #22 118550935	118550935
23	Cotter Pin #23 118550856	118550856
24	? 0 pcs in stock Oil Seal #24 118550379	118550379	157,30 Kč	157,30 Kč
25	Crankcase #25 118552520	118552520
27	Screw #27 112791500	112791500
28	Bolt #28 118551276	118551276
29	Cover Comp., Head #29 118550891	118550891
30	Packing Head Cover #30 118550892	118550892
31	Valve Arm Set #31 118550893	118550893
32	Plate #32 118550894	118550894
33	Retainer #33 118550895	118550895
34	Spring #34 118550896	118550896
35	Valve Assy, Intake + Exhaust #35 118550910	118550910
36	Valve Lifter #36 118551449	118551449
37	Push Rod #37 118551251	118551251
38	Piston ass.y #38 118552518	118552518
39	Piston, Ring Set #39 118551445	118551445
40	Piston Pin #40 118550915	118550915
41	Washer, Piston Pin #41 118550914	118550914
42	Connecting Rod Assy #42 118551446	118551446
43	Screw #43 112791500	112791500
44	? 0 pcs in stock Oil Filler Assy #44 118551444	118551444	302,50 Kč	302,50 Kč
