Home
SPARE PARTS
VARI LAWNMOWERS AND LAWN TRACTORS
3566 MP1 504G
Height Adjusting
Height Adjusting
Height Adjusting
Order no.:
MP1504-L1

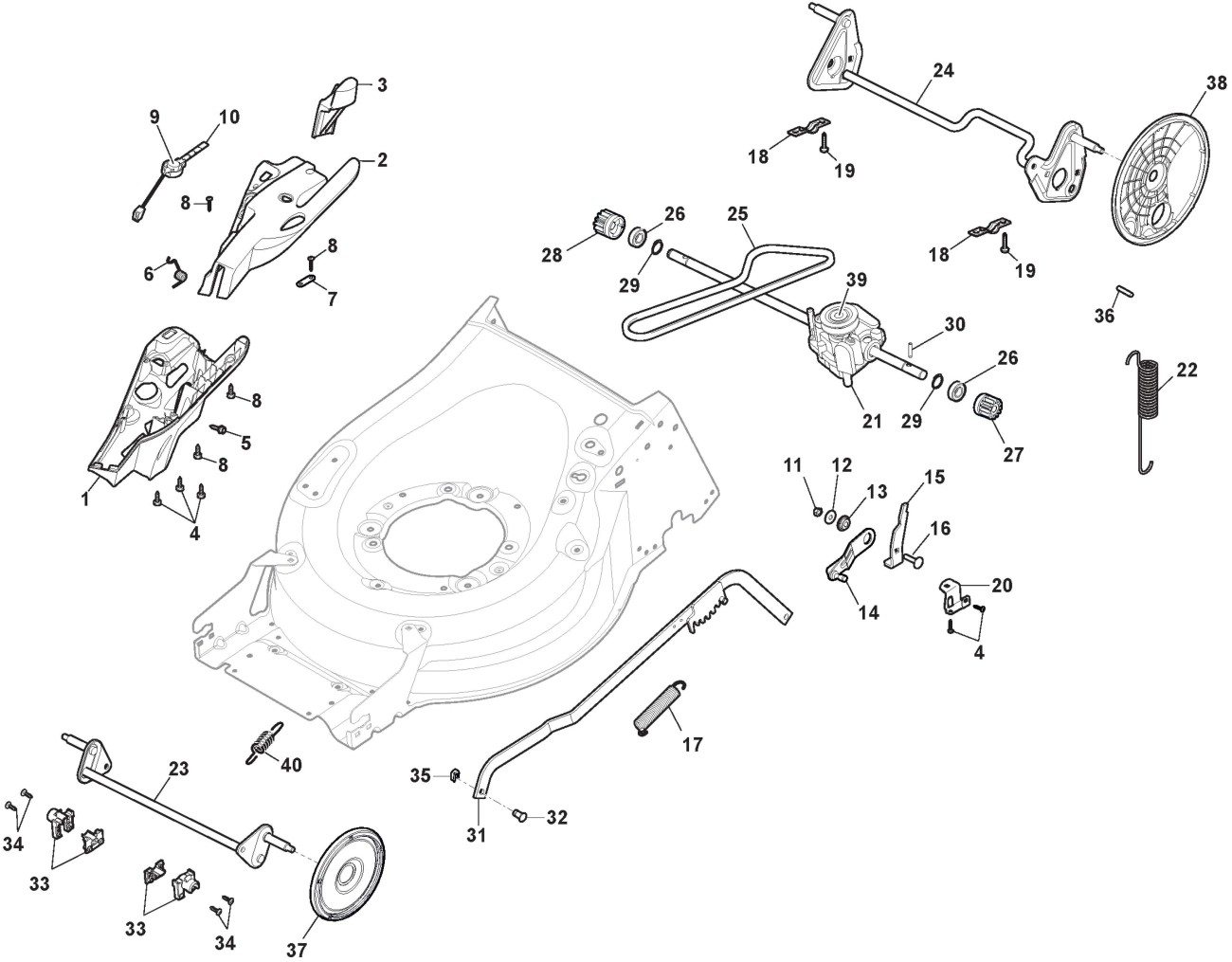

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
1
Lower Cover
#1
322055262
322055262
Question
2
Upper Cover
#2
322055263
322055263
Question
3
last 1 pc
Button
#3
322602026
322602026
108,90 Kč
Buy
108,90 Kč
4
Screw
#4
112728699
112728699
Replacement
5
Screw
#5
125943004
125943004
Question
6
last 1 pc
Spring
#6
122450477
122450477
48,40 Kč
Buy
48,40 Kč
7
?
0 pcs in stock
Plate
#7
322981471
322981471
36,30 Kč
Buy
36,30 Kč
8
less than 5 pcs
Screw
#8
112728697
112728697
36,30 Kč
Buy
36,30 Kč
9
last 1 pc
Lens
#9
322602027
322602027
50,80 Kč
Buy
50,80 Kč
10
last 1 pc
Visualizer
#10
322602028
322602028
42,40 Kč
Buy
42,40 Kč
11
last 3 pcs
Nut
#11
112154510
112154510
36,30 Kč
Buy
36,30 Kč
12
Washer
#12
112523040
112523040
Question
13
Pin
#13
122517873
122517873
Question
14
last 3 pcs
Lever, Height Adjustment
#14
381003475
381003475
242,00 Kč
Buy
242,00 Kč
15
Bracket
#15
322778475
322778475
Question
16
Screw
#16
112815270
112815270
Question
17
?
0 pcs in stock
Spring
#17
122450480
122450480
66,60 Kč
Buy
66,60 Kč
18
Plate
#18
322545152
322545152
Question
19
less than 5 pcs
Screw
#19
112728697
112728697
36,30 Kč
Buy
36,30 Kč
20
Bracket
#20
322778473
322778473
Question
21
Gear Box
#21
181003114
181003114
Question
22
Spring
#22
122450478
122450478
Question
23
Front Wheel Axle
#23
381302885
381302885
Question
24
Rear Wheel Axle
#24
381302889
381302889
Question
25
in stock
Belt
#25
135063900
135063900
242,00 Kč
Buy
242,00 Kč
26
last 1 pc
Bearing
#26
119216035
119216035
90,80 Kč
Buy
90,80 Kč
27
last 2 pcs
Left Pinion
#27
122570134
122570134
217,80 Kč
Buy
217,80 Kč
28
last 2 pcs
Right Pinion
#28
122570133
122570133
217,80 Kč
Buy
217,80 Kč
29
Seeger
#29
112608600
112608600
Question
30
?
0 pcs in stock
Pin
#30
122753000
122753000
42,40 Kč
Buy
42,40 Kč
31
Wheels Control Rod
#31
381002045
381002045
Question
32
last 1 pc
Pin
#32
122519823
122519823
60,50 Kč
Buy
60,50 Kč
33
?
0 pcs in stock
322785305
#33
322785305
322785305
72,60 Kč
Buy
72,60 Kč
34
less than 5 pcs
Screw
#34
112728697
112728697
36,30 Kč
Buy
36,30 Kč
35
Plate
#35
112436051
112436051
Replacement
36
Pin
#36
112645708
112645708
Question
37
?
0 pcs in stock
Protection, Wheel
#37
322600145
322600145
48,40 Kč
Buy
48,40 Kč
38
Protection, Wheel
#38
322600208
322600208
Question
39
last 2 pcs
Pulley
#39
122601909
122601909
133,10 Kč
Buy
133,10 Kč
