Carburetor, Fuel Pump

Carburetor, Fuel Pump

Order no.: RL102H-21

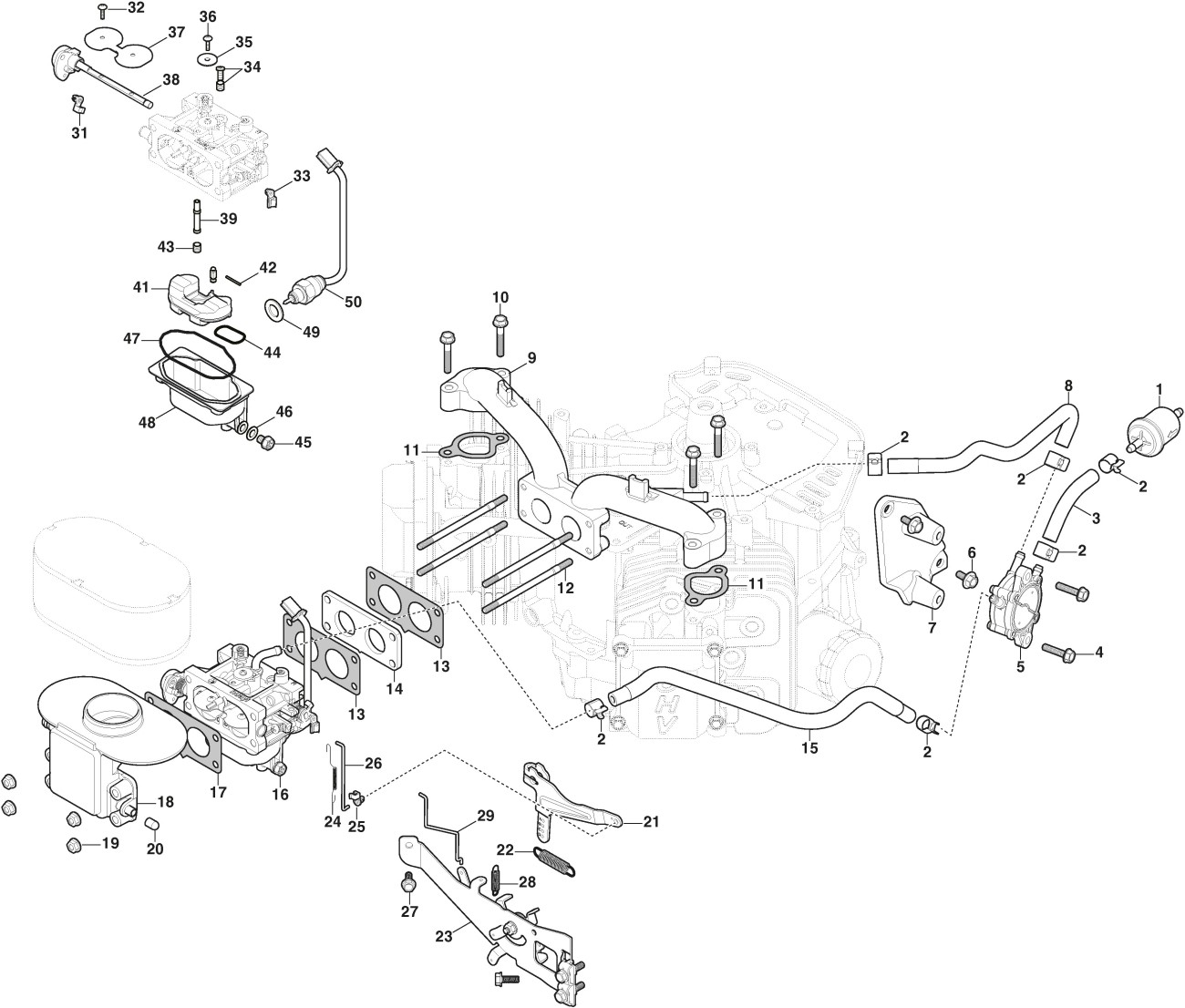

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	in stock Fuel Filter #1 118551572	118551572	290,40 Kč	290,40 Kč
2	Hose clamp #2 118551612	118551612
3	Fuel Pipe #3 118551605	118551605
5	last 1 pc Fuel pump #5 118551578	118551578	1 633,50 Kč	1 633,50 Kč
6	in stock Bolt #6 118551535	118551535	54,40 Kč	54,40 Kč
7	Clamp #7 118551579	118551579
8	Breather Tube #8 118551604	118551604
9	Intake Manifold #9 118551592	118551592
11	Gasket #11 118551574	118551574
12	Stud Bolt #12 118551335	118551335
13	Gasket #13 118551576	118551576
14	Spacer #14 118551577	118551577
15	Fuel Pipe #15 118551606	118551606
16	last 2 pcs Carburetor #16 118551631	118551631	3 799,40 Kč	3 799,40 Kč
17	Gasket #17 118551575	118551575
18	Air Cleaner Base #18 118551591	118551591
20	Protection #20 118551613	118551613
21	Arm Governor Assy #21 118551583	118551583
22	Spring #22 118551633	118551633
23	Throttle Lever #23 118551586	118551586
24	Spring #24 118551582	118551582
25	Retainer #25 118551588	118551588
26	Governor Link #26 118551580	118551580
28	Throttle Spring #28 118551614	118551614
29	Control Rod #29 118551585	118551585
31	Retainer #31 118551588	118551588
32	Screw #32 118552286	118552286
33	Clip #33 118552287	118552287
34	Idle Jet #34 118552288	118552288
35	Flat washer #35 118552289	118552289
36	Screw #36 118552290	118552290
37	Choke shutter #37 118552291	118552291
38	Choke Shutter Shaft #38 118552292	118552292
39	Jet Nozzle #39 118552293	118552293
41	Float Set #41 118552294	118552294
42	Pin #42 118552295	118552295
43	Adjustable Jet Nozzle #43 118552305	118552305
44	Gasket #44 118552297	118552297
45	Screw #45 118552298	118552298
46	Flat washer #46 118552299	118552299
47	Gasket #47 118552300	118552300
48	Chamber Set, Float #48 118552301	118552301
49	Flat washer #49 118552302	118552302
50	last 1 pc Magnetic Valve #50 118552303	118552303	1 125,30 Kč	1 125,30 Kč
