4590 VARI RL 102H
Brake And Gearbox Controls
Brake And Gearbox Controls
Brake And Gearbox Controls
Order no.:
RL102H-4

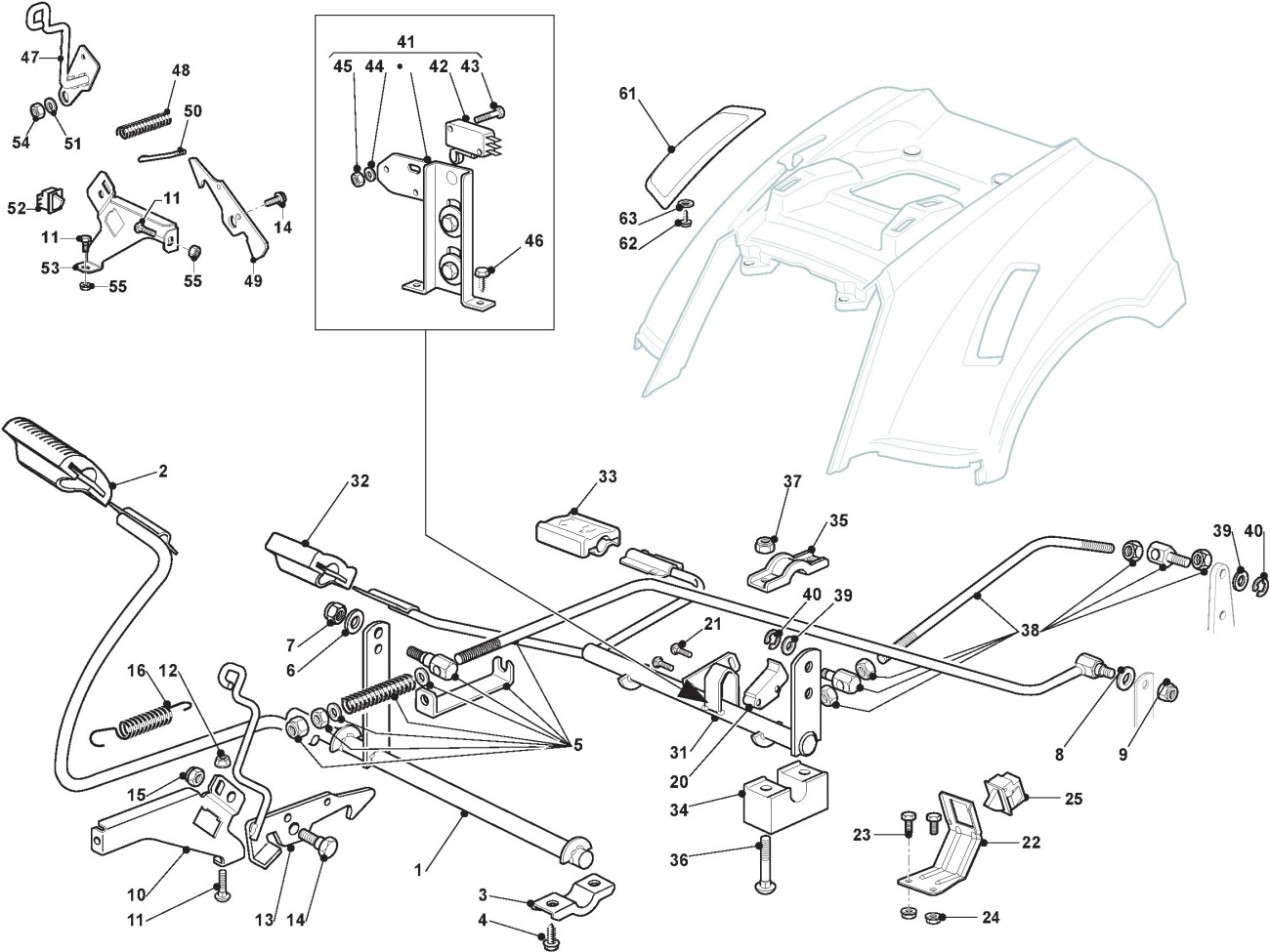

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
1
Pedal
#1
382500037
382500037
Question
2
Clamp Cover
#2
325110416
325110416
Question
3
Plate
#3
325547037
325547037
Question
3
Plate
#3
325547037
325547037
Question
4
Screw
#4
112735599
112735599
Question
5
Rod
#5
382000577
382000577
Question
6
last 1 pc
Washer
#6
112521350
112521350
48,40 Kč
Buy
48,40 Kč
7
?
0 pcs in stock
Nut
#7
112155000
112155000
42,40 Kč
Buy
42,40 Kč
8
last 1 pc
Washer
#8
112521350
112521350
48,40 Kč
Buy
48,40 Kč
9
?
0 pcs in stock
Nut
#9
112155000
112155000
42,40 Kč
Buy
42,40 Kč
10
Support
#10
325785261
325785261
Question
10
Support
#10
325785261
325785261
Question
11
Screw
#11
112815200
112815200
Question
12
?
0 pcs in stock
Nut
#12
112292102
112292102
48,40 Kč
Buy
48,40 Kč
13
Brake Lever
#13
382318289
382318289
Question
13
Brake Lever
#13
382318289
382318289
Question
14
Pin
#14
122524970
122524970
Question
15
?
0 pcs in stock
Nut
#15
112155000
112155000
42,40 Kč
Buy
42,40 Kč
16
Spring
#16
125430213
125430213
Question
20
Cam
#20
325060034
325060034
Question
21
Screw
#21
112735404
112735404
Question
22
Plate
#22
325547375
325547375
Question
23
Screw
#23
112793102
112793102
Question
24
Nut
#24
112293201
112293201
Question
25
in stock
Microswitch
#25
119410623
119410623
169,40 Kč
Buy
169,40 Kč
31
Drive Pedal
#31
382000605
382000605
Question
32
Clamp Cover Front
#32
325110417
325110417
Question
33
Clamp Cover Rear
#33
325110418
325110418
Question
34
Support
#34
325785185
325785185
Question
36
Screw
#36
112815245
112815245
Question
37
last 3 pcs
Nut
#37
112154510
112154510
36,30 Kč
Buy
36,30 Kč
38
Rod
#38
382000609
382000609
Question
39
Washer
#39
112523040
112523040
Question
40
Benzing Ring
#40
112000940
112000940
Question
41
Switch Ass.Y
#41
382394853
382394853
Question
42
in stock
Micro Switch
#42
119410609
119410609
605,00 Kč
Buy
605,00 Kč
43
Screw
#43
112735602
112735602
Question
44
Grower
#44
112581100
112581100
Question
45
Nut
#45
112290791
112290791
Question
46
Screw
#46
112735110
112735110
Question
48
Spring
#48
125430213
125430213
Question
49
Brake Hook
#49
325253007
325253007
Question
50
Rod
#50
125033119
125033119
Question
51
Bushing
#51
122041980
122041980
Question
52
last 3 pcs
Microswitch
#52
119410622
119410622
169,40 Kč
Buy
169,40 Kč
54
Nut
#54
112155010
112155010
Question
55
?
0 pcs in stock
Nut
#55
112292102
112292102
48,40 Kč
Buy
48,40 Kč
61
Cover (Hydro)
#61
325207171
325207171
Question
62
?
0 pcs in stock
Screw
#62
112735402
112735402
43,60 Kč
Buy
43,60 Kč
63
?
0 pcs in stock
Washer
#63
112523050
112523050
36,30 Kč
Buy
36,30 Kč
