Grass-Catcher

Grass-Catcher

Order no.: RL102H-11

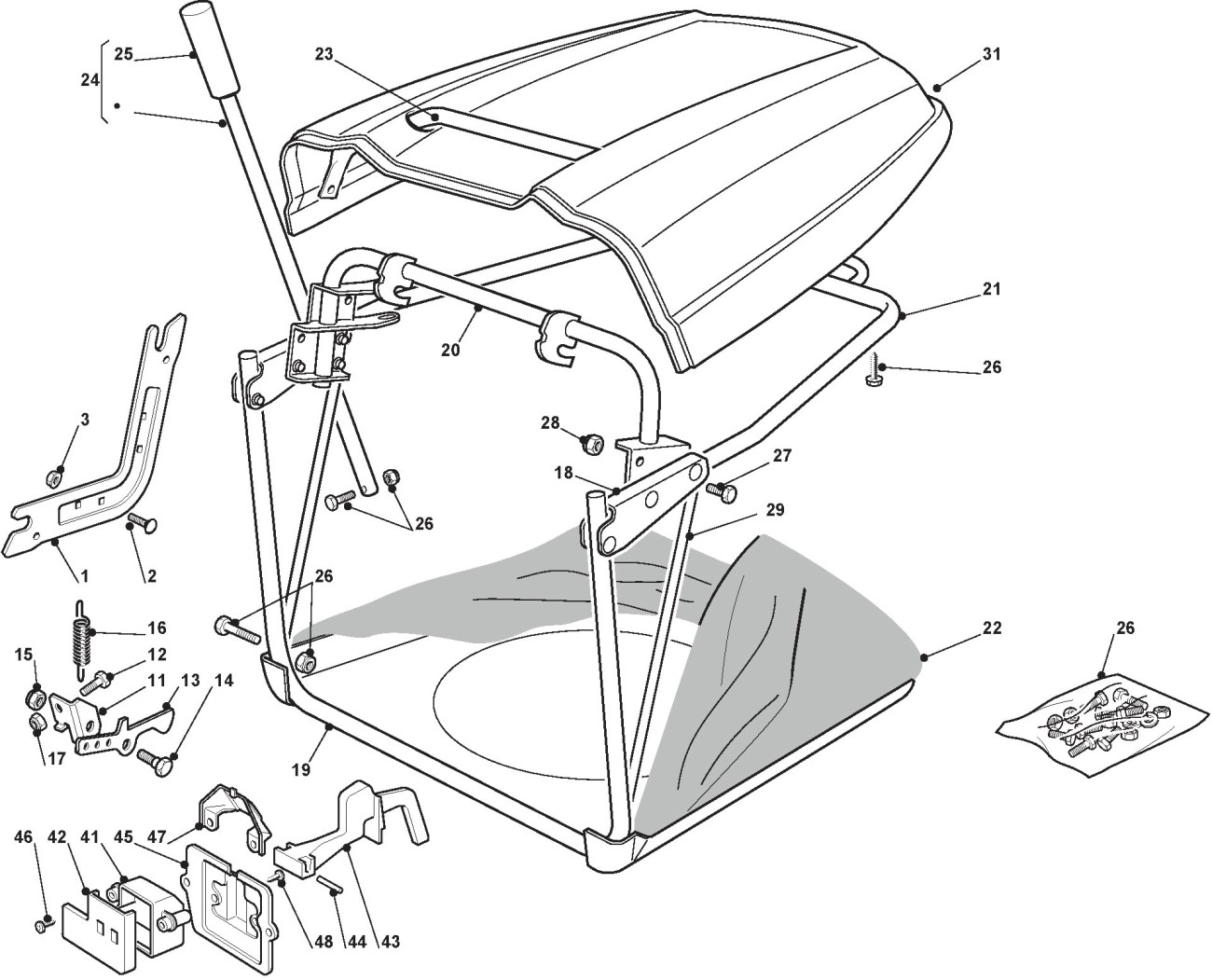

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Support #1 325785275	325785275
2	Screw #2 112818690	112818690
3	Nut #3 112293201	112293201
11	Bracket #11 325755031	325755031
12	Screw #12 112789000	112789000
13	Bracket #13 325774315	325774315
14	Pin #14 125510080	125510080
15	? 0 pcs in stock Nut #15 112292102	112292102	48,40 Kč	48,40 Kč
16	Spring #16 122450432	122450432
17	Nut #17 112154330	112154330
18	Bracket #18 382774251	382774251
19	Grasscatcher Frame #19 382800099	382800099
20	Grasscatcher Hooking Frame #20 382800103	382800103
21	Front Frame #21 382800101	382800101
22	Grasscatcher #22 182105973	182105973
23	Front Handle #23 382394003	382394003
24	Rod #24 382869023	382869023
25	? 0 pcs in stock Knob #25 125394508	125394508	144,00 Kč	144,00 Kč
26	Screw #26 382180048	382180048
27	Screw #27 112815240	112815240
28	last 3 pcs Nut #28 112154510	112154510	36,30 Kč	36,30 Kč
29	Stiffening #29 325650115	325650115
31	Red Grass-Catcher Cover #31 325110320	325110320
41	Grassc.Full Micro Protection Tcj-F #41 125600041	125600041
42	Grasscatcher Micro Prot Cover #42 125600042	125600042
43	? 0 pcs in stock Full Grassc. Microswtich Cover #43 125318124	125318124	48,40 Kč	48,40 Kč
44	Pin #44 112400030	112400030
45	Micro Protection #45 325785272	325785272
46	Screw #46 112728510	112728510
47	Empty Micro Grassc.Protection Cover #47 125600048	125600048
48	Screw #48 112735110	112735110
