MOTOR

unavailable

MOTOR

Order no.: 1E34FL

Documents to download
Format Name Size
PDF Katalogový list 213 kB

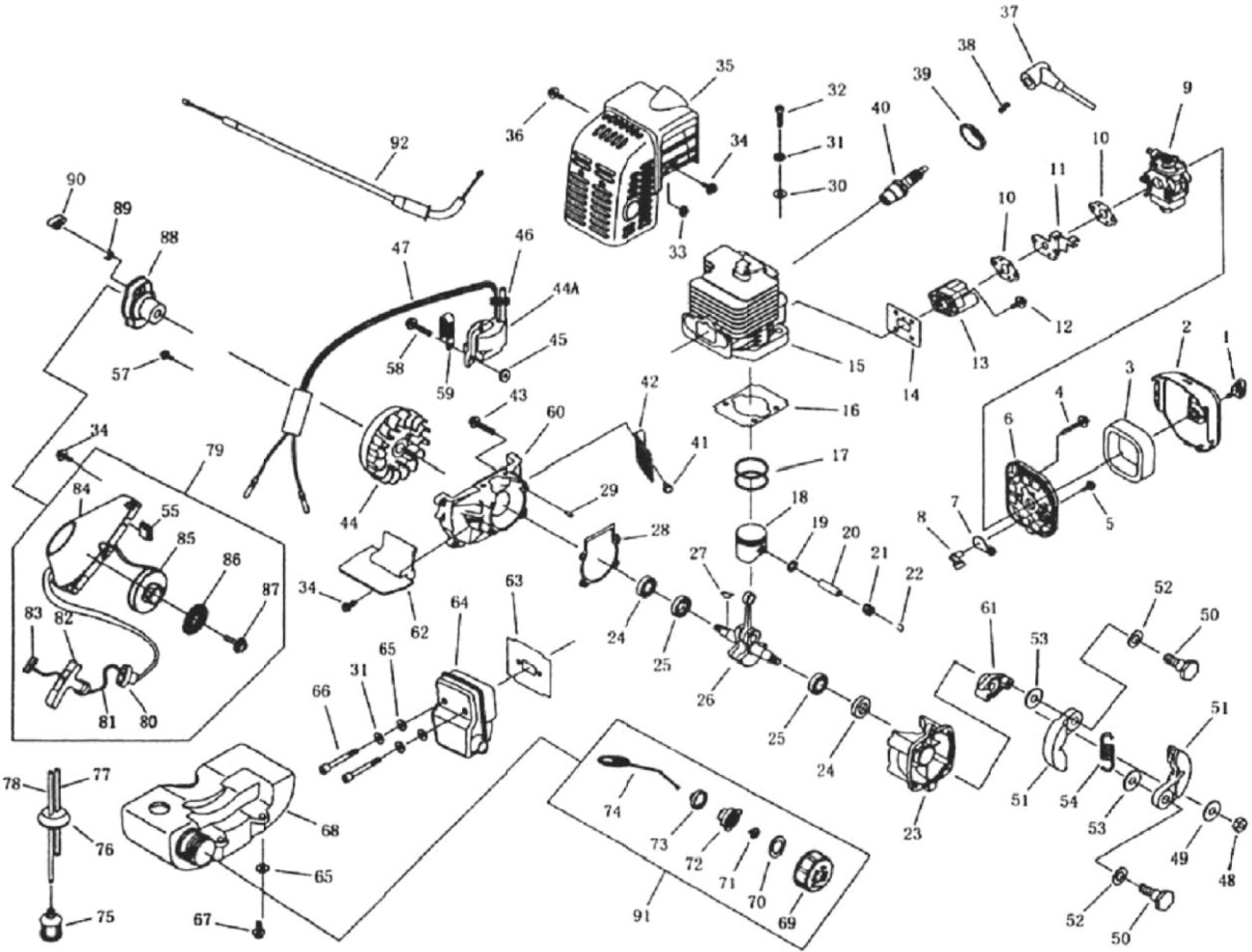

Technical drawing
MOTOR
Spare part list
Position Name Order no. Price incl. VAT
1 unavailable Screw
#1 1E34F.1.2
1E34F.1.2
2 in stock Cleaner outside cover
#2 1E34F.1-4
1E34F.1-4
48,40 Kč
48,40 Kč
3 unavailable Cleaner element
#3 1E34F.1-1
1E34F.1-1
4 unavailable Screw M5x16
#4 GB9074.4
GB9074.4
5 unavailable Screw ST4.2x18
#5 GB845
GB845
6 unavailable Cleaner inside cover
#6 1E34F.1.1
1E34F.1.1
7 in stock Choke
#7 1E34F.1-3
1E34F.1-3
2,40 Kč
2,40 Kč
8 unavailable Choke handle
#8 1E34F.1-2
1E34F.1-2
9 in stock Carburettor
#9 1E34FL.3
1E34FL.3
687,30 Kč
687,30 Kč
10 in stock Gasket
#10 1E34F-1
1E34F-1
7,30 Kč
7,30 Kč
11 in stock Stand
#11 1E32FL-1
1E32FL-1
43,60 Kč
43,60 Kč
12 unavailable Screw M5x16
#12 GB9074.4
GB9074.4
13 unavailable Inlet manifold
#13 1E34F.4
1E34F.4
14 in stock Cylinder washer
#14 1E34F-2
1E34F-2
8,50 Kč
8,50 Kč
15 in stock Cylinder
#15 1E34FL-1
1E34FL-1
825,20 Kč
825,20 Kč
16 in stock Cylinder washer
#16 1E34F-9
1E34F-9
10,90 Kč
10,90 Kč
17 in stock Piston ring
#17 1E34F.6-5
1E34F.6-5
26,60 Kč
26,60 Kč
18 unavailable Piston
#18 1E34FL.6-6
1E34FL.6-6
19 in stock Stop ring
#19 1E34F.6-1
1E34F.6-1
27,80 Kč
27,80 Kč
20 in stock Piston pin
#20 1E34FL.6-3
1E34FL.6-3
35,10 Kč
35,10 Kč
21 in stock Needle bearing
#21 1E34F.6-4
1E34F.6-4
55,70 Kč
55,70 Kč
22 in stock Piston pin circlet
#22 1E34F.6-2
1E34F.6-2
3,60 Kč
3,60 Kč
23 in stock Crank case
#23 1E32FL.4-1
1E32FL.4-1
193,60 Kč
193,60 Kč
24 in stock Seal
#24 1E36F.2
1E36F.2
14,50 Kč
14,50 Kč
25 unavailable Bearing 6202/2RS
#25 GBT276
GBT276
26 in stock Crank shaft
#26 1E32FL.3.1
1E32FL.3.1
825,20 Kč
825,20 Kč
27 in stock Key
#27 1E40FP-3Z.3-1
1E40FP-3Z.3-1
3,60 Kč
3,60 Kč
28 in stock Crank case gasket
#28 1E34F.7-2
1E34F.7-2
9,70 Kč
9,70 Kč
29 unavailable Pin 3x10
#29 GBT119.2
GBT119.2
30 unavailable Washer 5
#30 GB848
GB848
31 unavailable Washer 5
#31 GB93
GB93
32 unavailable Screw M5x25
#32 GBT70.1
GBT70.1
33 unavailable Gasket
#33 1E32FL-4
1E32FL-4
34 unavailable Screw M5x16
#34 GB9074.4
GB9074.4
35 in stock Guide cover
#35 1E32FL-2
1E32FL-2
145,20 Kč
145,20 Kč
36 unavailable Screw ST4.2x18
#36 GB845
GB845
37 in stock Plug cap
#37 1E34F.5-2
1E34F.5-2
32,70 Kč
32,70 Kč
38 in stock Click spring
#38 1E40F-3A.8-2
1E40F-3A.8-2
5,40 Kč
5,40 Kč
39 in stock Plug cover
#39 1E34F.5-3
1E34F.5-3
21,80 Kč
21,80 Kč
40 in stock Spark plug
#40 RCJ6Y
RCJ6Y
110,10 Kč
110,10 Kč
41 unavailable Screw M5x16
#41 GB9074.4
GB9074.4
42 unavailable Guide cover
#42 1E32FL-9
1E32FL-9
43 unavailable Screw M5x16
#43 GB9074.4
GB9074.4
44 in stock Fly wheel
#44 1E32FL.5.1
1E32FL.5.1
330,30 Kč
330,30 Kč
45 unavailable Gasket
#45 1E32FL-6
1E32FL-6
46 unavailable Primary cord grommet
#46 1E34F.5-1
1E34F.5-1
47 in stock Cord comp.
#47 1E34F.5.1
1E34F.5.1
10,90 Kč
10,90 Kč
48 unavailable Nut M8x1
#48 GB6171
GB6171
49 unavailable Washer 8
#49 GB97.1
GB97.1
50 in stock Clutch step screw
#50 1E34F-12
1E34F-12
36,30 Kč
36,30 Kč
51 unavailable Clutch shoe comp.
#51 1E34F.10.1
1E34F.10.1
52 unavailable Washer
#52 1E34F-13
1E34F-13
53 unavailable Washer
#53 1E34F-11
1E34F-11
54 unavailable Clutch spring
#54 1E34F.10-1
1E34F.10-1
55 unavailable Rubber plug
#55 1E32FL-10
1E32FL-10
57 unavailable Screw M5x16
#57 GB9074.4
GB9074.4
58 unavailable Screw M5x16
#58 GB9074.4
GB9074.4
59 in stock Clip
#59 1E40F-3A.9
1E40F-3A.9
6,00 Kč
6,00 Kč
60 in stock Crank case
#60 1E32FL.4-2
1E32FL.4-2
193,60 Kč
193,60 Kč
61 unavailable Stand
#61 1E32FL-3
1E32FL-3
62 unavailable Brace
#62 1E32FL-8
1E32FL-8
63 in stock Gasket
#63 1E34F-3
1E34F-3
19,40 Kč
19,40 Kč
64 in stock Muffler ass’y
#64 1E32FL.1
1E32FL.1
196,00 Kč
196,00 Kč
65 unavailable Washer 5
#65 GB96
GB96
66 unavailable Screw M5x25
#66 GBT70.1
GBT70.1
67 unavailable Screw M5x16
#67 GB9074.3
GB9074.3
68 in stock Fuel tank
#68 1E32FL.6.1
1E32FL.6.1
65,30 Kč
65,30 Kč
69 unavailable Fuel tank lid
#69 1E32FL.6.2-1
1E32FL.6.2-1
70 unavailable Gasket
#70 CG420.1.3.1-2
CG420.1.3.1-2
71 unavailable Air inlet mouth
#71 EB-415.4.1.1-1
EB-415.4.1.1-1
72 unavailable Inside cover
#72 1E32FL.6.2-2
1E32FL.6.2-2
73 unavailable Lid
#73 1E32FL.6.2-3
1E32FL.6.2-3
74 unavailable Chain
#74 1E32FL.6.2-4
1E32FL.6.2-4
75 unavailable Cleaner
#75 1E34F.9.2-3
1E34F.9.2-3
76 unavailable Pr. cord grommet
#76 1E36FF.8.1-1
1E36FF.8.1-1
77 unavailable Inlet fuel pipe
#77 1E34F.9.2-1
1E34F.9.2-1
78 unavailable Outlet fuel pipe
#78 1E34F.9.2-2
1E34F.9.2-2
79 unavailable Starter
#79 1E34FL.1
1E34FL.1
80 unavailable Rope guide
#80 1E34F.11.1-1
1E34F.11.1-1
81 unavailable Rope
#81 1E34F.11-3
1E34F.11-3
82 unavailable Starter handle
#82 1E36F.1-1
1E36F.1-1
83 unavailable Gasket
#83 1E36F.1-5
1E36F.1-5
84 unavailable Start cover ass’y
#84 1E34FL.11.1
1E34FL.11.1
85 in stock Starter rope reel
#85 1E34F.11-2
1E34F.11-2
33,90 Kč
33,90 Kč
86 unavailable Recoil spring
#86 1E34F.11-1
1E34F.11-1
87 unavailable Screw M5x10
#87 GB9074.6
GB9074.6
88 less than 5 pcs Start reel
#88 1E32FL.2
1E32FL.2
41,10 Kč
41,10 Kč
89 unavailable Starter pawl
#89 1E34F.8-1
1E34F.8-1
90 unavailable Starter pawl spring
#90 1E34F.8-2
1E34F.8-2
91 unavailable Fuel tank lid comp.
#91 1E32FL.6.2
1E32FL.6.2
92 in stock Cable comp.
#92 SLP600B.1.2
SLP600B.1.2
38,70 Kč
38,70 Kč
441 less than 5 pcs Coil
#441 1E32FL.5.2
1E32FL.5.2
494,90 Kč
494,90 Kč
