Order no.: 1006500054

Documents to download

Format	Name	Size
PDF	Katalogový list	981 kB

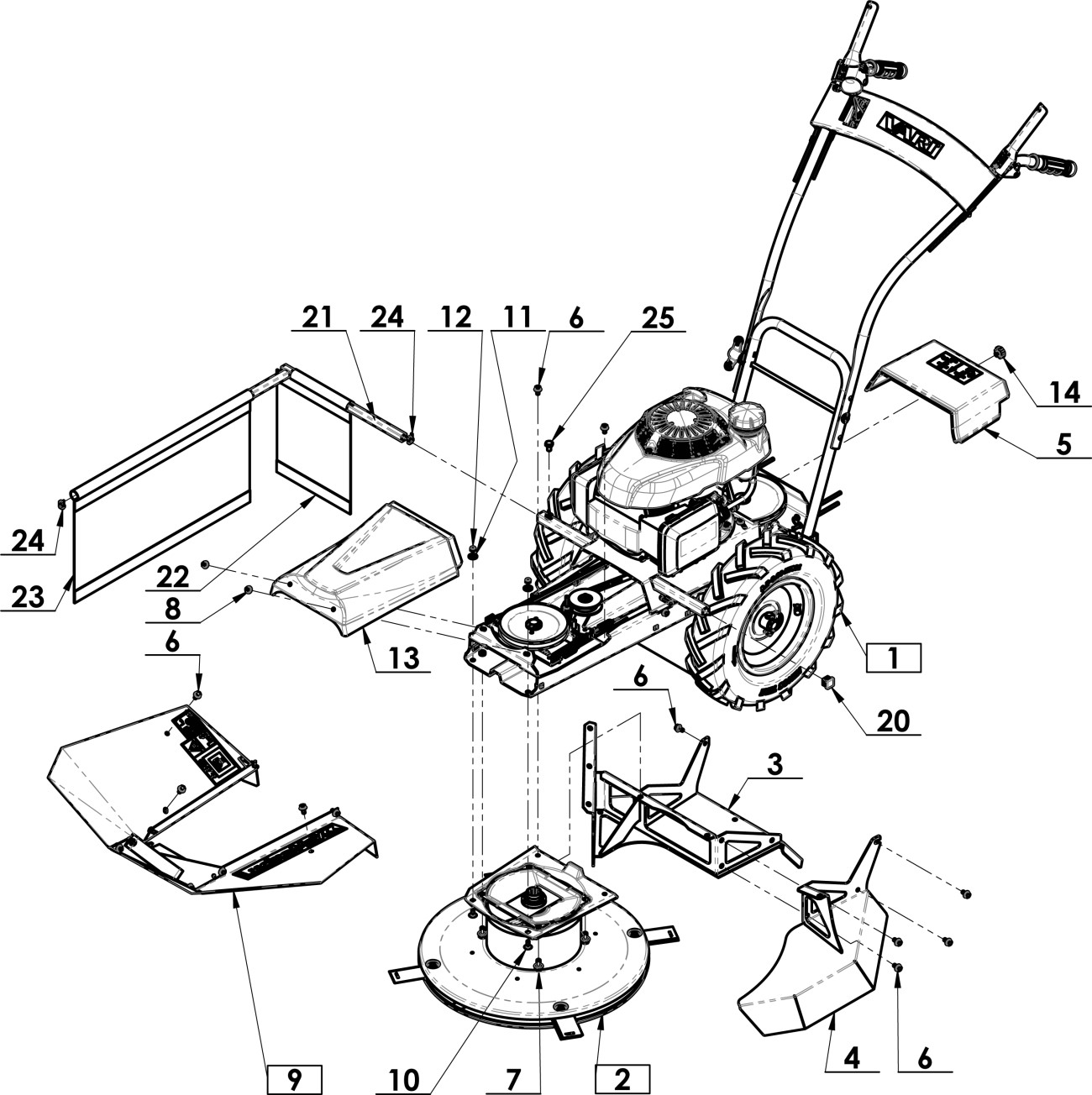

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Multifunctional chassis #1 2004400125	2004400125
2	Adapter #2 2004400130	2004400130
3	Cover #3 2006500040	2006500040
4	last 1 pc Left guard #4 3006500041	3006500041	1 101,10 Kč	1 101,10 Kč
5	in stock Gear cover #5 3004400021	3004400021	381,20 Kč	381,20 Kč
6	in stock Bolt #6 51309900007	51309900007	2,40 Kč	2,40 Kč
7	in stock Bolt #7 51309900011	51309900011	4,80 Kč	4,80 Kč
8	in stock Nut #8 51311900005	51311900005	1,00 Kč	1,00 Kč
9	Cover #9 2006500042	2006500042
10	in stock Bolt #10 51309019076	51309019076	2,40 Kč	2,40 Kč
11	in stock Washer #11 195530	195530	0,60 Kč	0,60 Kč
12	in stock Nut #12 168516	168516	0,60 Kč	0,60 Kč
13	last 2 pcs Belt cover #13 3004400098	3004400098	441,60 Kč	441,60 Kč
14	in stock Control elemen #14 51321461064	51321461064	37,50 Kč	37,50 Kč
15	unavailable Sticker #15 3003500020	3003500020
16	unavailable Sticker Gear shifting #16 3003900033	3003900033
17	unavailable Sticker #17 3003500030	3003500030
18	Sticker #18 3004400129	3004400129
19	unavailable Sticker #19 3208731160	3208731160
20	in stock Square cap #20 169506	169506	2,40 Kč	2,40 Kč
21	in stock Mud flap beam - weldment #21 2005100011	2005100011	968,00 Kč	968,00 Kč
22	in stock Rear mud flap #22 3005100013	3005100013	102,80 Kč	102,80 Kč
23	in stock Lateral mud flap #23 3005100012	3005100012	205,70 Kč	205,70 Kč
24	in stock Páska stahovací 3,6x200 #24 189525	189525	3,00 Kč	3,00 Kč
25	in stock Bolt #25 169512	169512	3,60 Kč	3,60 Kč
26	Label #26 3006500053	3006500053
