Frame

Rám předmontovaný

Order no.: 1298565163_1

Documents to download
Format Name Size
PDF Katalogový list 223 kB

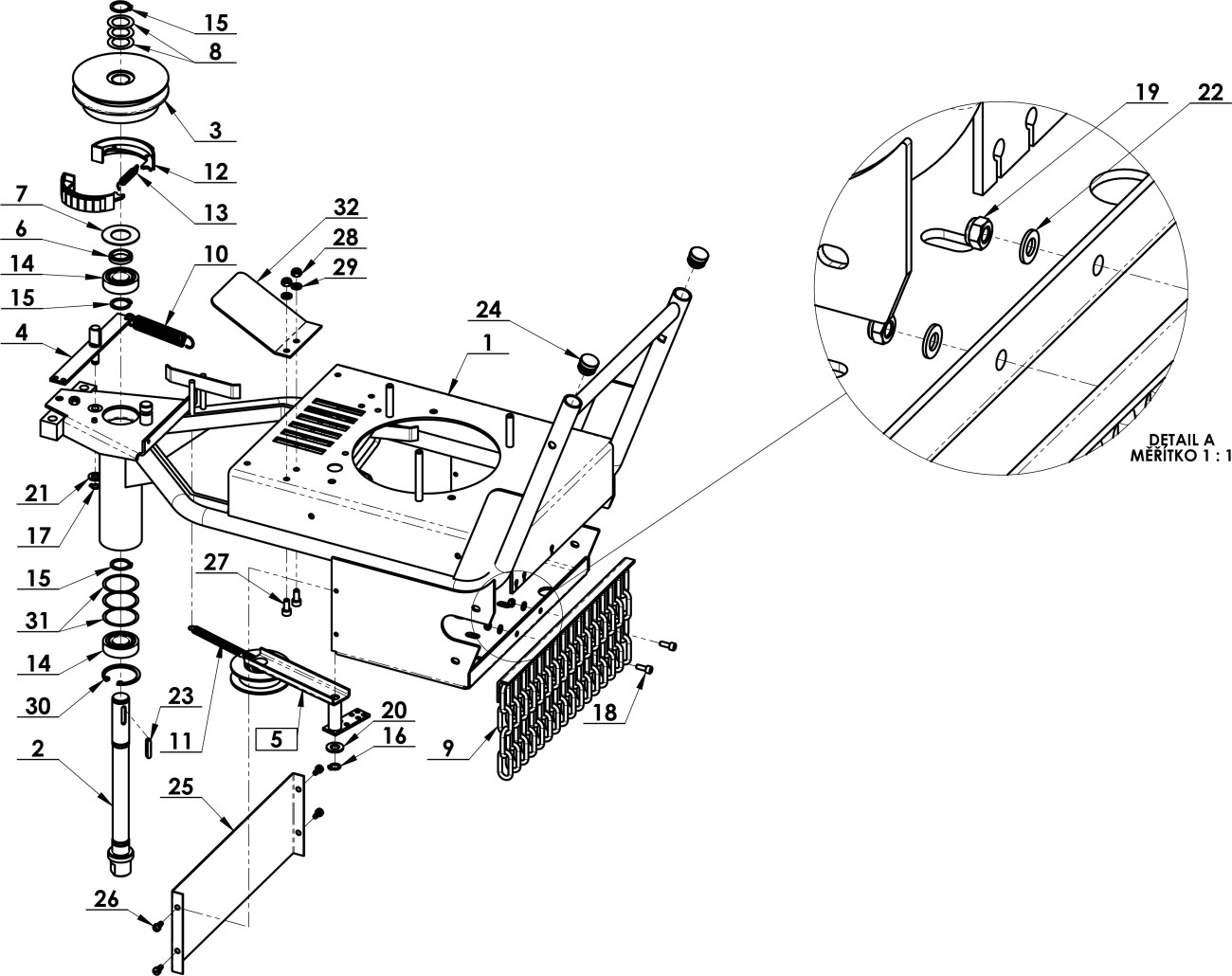

Technical drawing
Rám předmontovaný
Spare part list
Position Name Order no. Price incl. VAT
1 0 pcs in stock Mulcher frame - weldment
#1 182028
182028
7 383,40 Kč
7 383,40 Kč
2 in stock Blade shaft
#2 182023
182023
1 996,50 Kč
1 996,50 Kč
3 in stock Driven pulley
#3 182007
182007
3 980,90 Kč
3 980,90 Kč
4 Brake toggle
#4 189013
189013
5 in stock Roller assembly
#5 189005
189005
1 210,00 Kč
1 210,00 Kč
6 in stock Distance ring
#6 189011
189011
36,30 Kč
36,30 Kč
7 in stock Cover
#7 189012
189012
118,60 Kč
118,60 Kč
8 in stock Spacer ring
#8 127041
127041
1,80 Kč
1,80 Kč
9 in stock Barrier - weldment
#9 189007
189007
1 172,50 Kč
1 172,50 Kč
10 in stock Spring
#10 169514
169514
19,40 Kč
19,40 Kč
11 in stock Spring
#11 189516
189516
24,20 Kč
24,20 Kč
12 in stock Brake shoe
#12 189014
189014
515,50 Kč
515,50 Kč
13 in stock Brake shoe spring
#13 189511
189511
42,40 Kč
42,40 Kč
14 0 pcs in stock Bearing
#14 9943158
9943158
72,60 Kč
72,60 Kč
15 in stock Retaining ring
#15 110515
110515
1,80 Kč
1,80 Kč
16 in stock Retaining ring
#16 6021519
6021519
1,20 Kč
1,20 Kč
17 last 1 pc Retaining ring
#17 195534
195534
0,60 Kč
0,60 Kč
18 last 2 pcs Bolt
#18 182516
182516
1,80 Kč
1,80 Kč
19 in stock Nut
#19 105518
105518
0,60 Kč
0,60 Kč
20 in stock Washer
#20 189567
189567
1,20 Kč
1,20 Kč
21 in stock Washer
#21 131517
131517
0,60 Kč
0,60 Kč
22 in stock Washer
#22 189581
189581
0,60 Kč
0,60 Kč
23 in stock Key
#23 189574
189574
12,10 Kč
12,10 Kč
24 The stopper ring
#24 189524
189524
25 Cover plate
#25 182037
182037
26 Bolt
#26 170516
170516
27 in stock Bolt
#27 182514
182514
1,20 Kč
1,20 Kč
28 in stock Nut
#28 168516
168516
0,60 Kč
0,60 Kč
29 in stock Washer
#29 189571
189571
0,60 Kč
0,60 Kč
30 in stock Retaining ring
#30 136506
136506
5,40 Kč
5,40 Kč
31 in stock Spacer ring
#31 110012
110012
2,40 Kč
2,40 Kč
32 Deflector
#32 182022
182022
