1000500142

1000500142

1000500142

Order no.: 1000500142

Documents to download
Format Name Size
PDF Katalogový list 1 252 kB

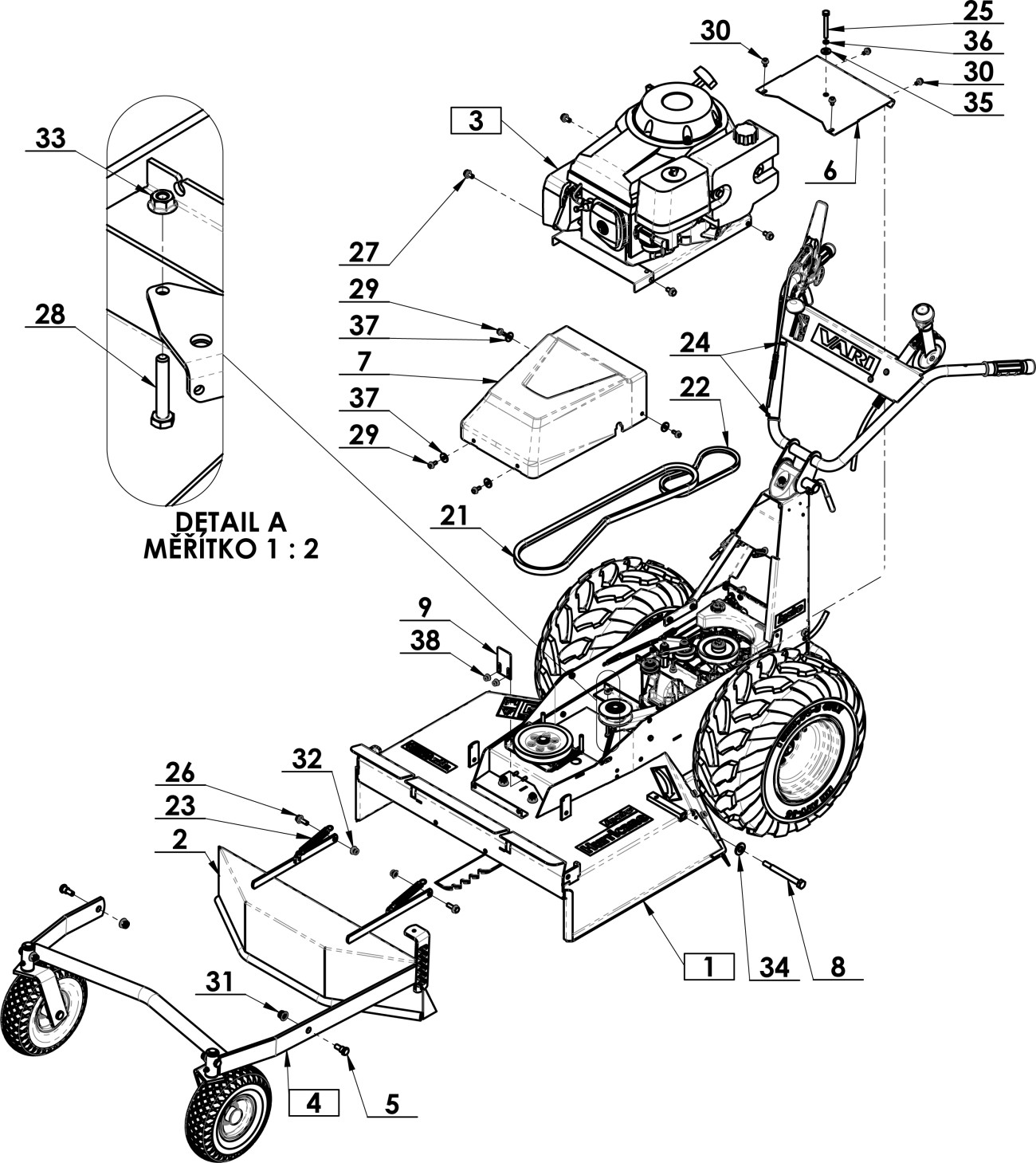

Technical drawing
1000500142
Spare part list
Position Name Order no. Price incl. VAT
1 Frame
#1 2000500149
2000500149
2 last 3 pcs Front cover weldment
#2 184060
184060
4 000,30 Kč
4 000,30 Kč
3 Engine
#3 2000500056
2000500056
4 Guiding Wheels
#4 2000500148
2000500148
5 in stock Bolt
#5 182038
182038
453,80 Kč
453,80 Kč
6 Upper gearbox cover
#6 3000500147
3000500147
7 last 1 pc Cover
#7 3000500116
3000500116
847,00 Kč
847,00 Kč
8 Bolt
#8 3000500146
3000500146
9 Front belt guide
#9 3000500145
3000500145
10 unavailable Sticker
#10 3208731063
3208731063
11 unavailable Sticker - Dangerous area
#11 3208731139
3208731139
12 Sticker
#12 3003500051
3003500051
13 unavailable Sticker
#13 3004400024
3004400024
14 unavailable Sticker
#14 3208731019
3208731019
15 Sticker
#15 3003500050
3003500050
16 unavailable Sticker Accelerator lever
#16 3208731020
3208731020
17 Sticker
#17 3000500113
3000500113
18 Sticker
#18 3000500117
3000500117
19 Sticker
#19 3000500118
3000500118
20 Label
#20 3000500144
3000500144
21 in stock V- belt
#21 184563
184563
1 084,20 Kč
1 084,20 Kč
22 0 pcs in stock V-Belt
#22 51272212115
51272212115
181,50 Kč
181,50 Kč
23 in stock Spring
#23 169514
169514
19,40 Kč
19,40 Kč
24 0 pcs in stock Tightening tape
#24 51283297052
51283297052
2,40 Kč
2,40 Kč
25 0 pcs in stock Bolt
#25 51309201091
51309201091
2,40 Kč
2,40 Kč
26 in stock Bolt
#26 51309900032
51309900032
9,70 Kč
9,70 Kč
27 in stock Bolt
#27 51309900011
51309900011
4,80 Kč
4,80 Kč
28 in stock Bolt
#28 184587
184587
1,20 Kč
1,20 Kč
29 in stock Bolt
#29 51309203129
51309203129
3,60 Kč
3,60 Kč
30 in stock Bolt
#30 51309900007
51309900007
2,40 Kč
2,40 Kč
31 in stock Nut
#31 51311900015
51311900015
6,00 Kč
6,00 Kč
32 in stock Nut
#32 51311120099
51311120099
3,60 Kč
3,60 Kč
33 in stock Nut
#33 51311900005
51311900005
1,00 Kč
1,00 Kč
34 Washer
#34 51311212708
51311212708
35 in stock Washer
#35 150536
150536
1,20 Kč
1,20 Kč
36 in stock Washer
#36 104574
104574
0,60 Kč
0,60 Kč
37 in stock Washer
#37 169508
169508
1,20 Kč
1,20 Kč
38 in stock Nut
#38 51309900034
51309900034
4,80 Kč
4,80 Kč
39 Sachet
#39 2000500143
2000500143
40 Foil
#40 51283781005
51283781005
