Order no.: 1005800097

Documents to download

Format	Name	Size
PDF	Katalogový list	621 kB

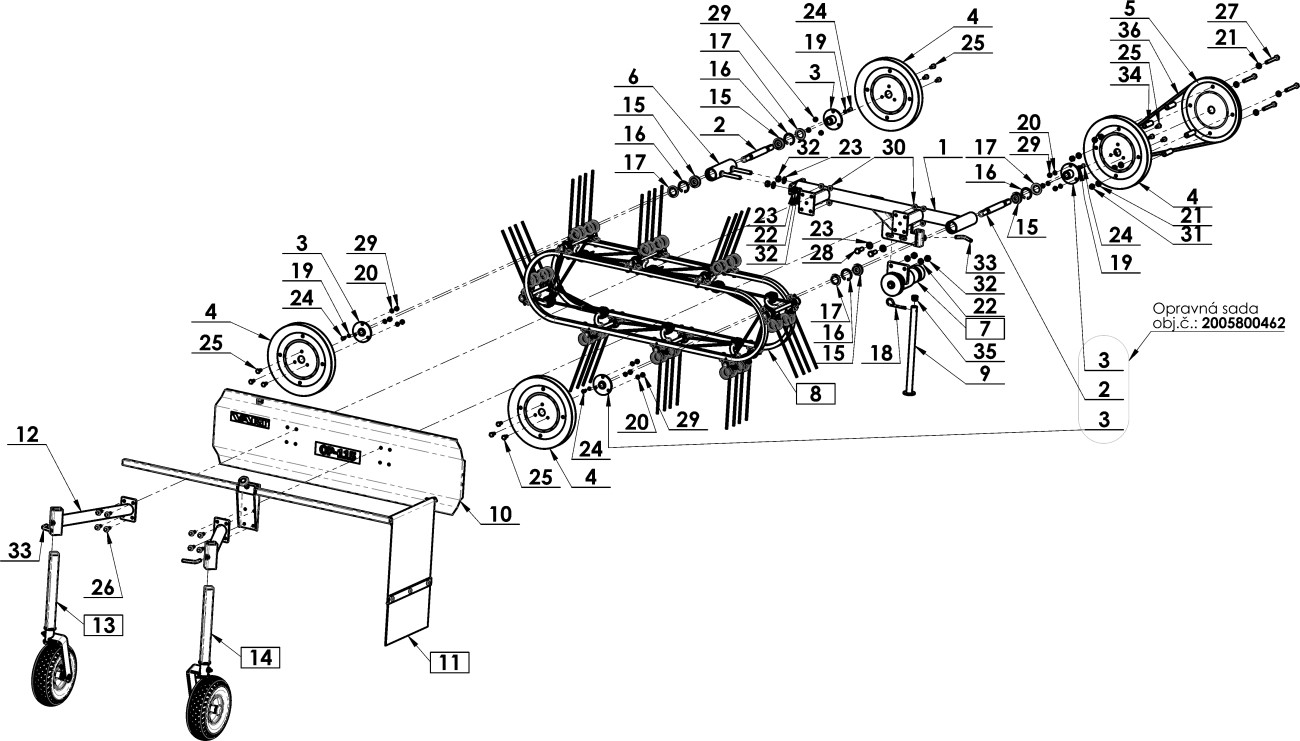

Technical drawing

Spare part list

Position		Name	Order no.	Price incl. VAT
1		? 0 pcs in stock Frame #1 194505	194505	5 687,00 Kč	5 687,00 Kč
2		Support leg #2 194511	194511
3		Cover #3 194504	194504
4		Belt with tines #4 2005800123	2005800123
5		less than 5 pcs Flange #5 2005800112	2005800112	3 388,00 Kč	3 388,00 Kč
6		Housing #6 194506	194506
7		last 1 pc hub #7 2005800128	2005800128	726,00 Kč	726,00 Kč
7		last 1 pc Hub #7 194523	194523	726,00 Kč	726,00 Kč
8		? 0 pcs in stock Sheave #8 194521	194521	750,20 Kč	750,20 Kč
9		Sheave #9 194529	194529
10		last 1 pc Aperture #10 2005800116	2005800116	1 815,00 Kč	1 815,00 Kč
11		? 0 pcs in stock Wheel arm weldment #11 194503	194503	810,70 Kč	810,70 Kč
12		Wheel #12 2005800252	2005800252
13		Wheel #13 2005800113	2005800113
14		Pillar #14 3005800132	3005800132
15		? 0 pcs in stock Shaft #15 3005800133	3005800133	556,60 Kč	556,60 Kč
15		last 3 pcs HRIDEL BEZDRAZKOVA PR-18MM #15 194522	194522	677,60 Kč	677,60 Kč
16		in stock Bolt #16 150538	150538	0,70 Kč	0,70 Kč
17		in stock Bolt #17 189548	189548	1,80 Kč	1,80 Kč
18		in stock Bolt #18 51309900032	51309900032	9,70 Kč	9,70 Kč
19		? 0 pcs in stock Bolt #19 170525	170525	6,20 Kč	6,20 Kč
20		Bolt #20 51309503853	51309503853
21		less than 5 pcs Nut #21 104572	104572	0,60 Kč	0,60 Kč
22		in stock Nut #22 51311900006	51311900006	1,80 Kč	1,80 Kč
23		last 3 pcs Nut #23 106529	106529	3,60 Kč	3,60 Kč
24		in stock Nut #24 106531	106531	2,40 Kč	2,40 Kč
25		in stock Washer #25 127520	127520	4,80 Kč	4,80 Kč
26		in stock Washer #26 110538	110538	1,20 Kč	1,20 Kč
27		in stock Washer #27 189567	189567	1,20 Kč	1,20 Kč
28		in stock Washer #28 106532	106532	1,20 Kč	1,20 Kč
29		in stock Washer #29 104503	104503	1,20 Kč	1,20 Kč
30		in stock Washer #30 108505	108505	1,20 Kč	1,20 Kč
31		Washer #31 51311214088	51311214088
32		in stock Bearing #32 9943158	9943158	72,60 Kč	72,60 Kč
33		in stock Retaining ring #33 136506	136506	5,40 Kč	5,40 Kč
34		Handle #34 194510	194510
35		The stopper ring #35 189524	189524
36		Label #36 3005800099	3005800099
37		in stock Split spin #37 108501	108501	41,10 Kč	41,10 Kč
38		in stock Belt #38 51482489121	51482489121	121,00 Kč	121,00 Kč
