Order no.: 1005800098

Documents to download

Format	Name	Size
PDF	Katalogový list	628 kB

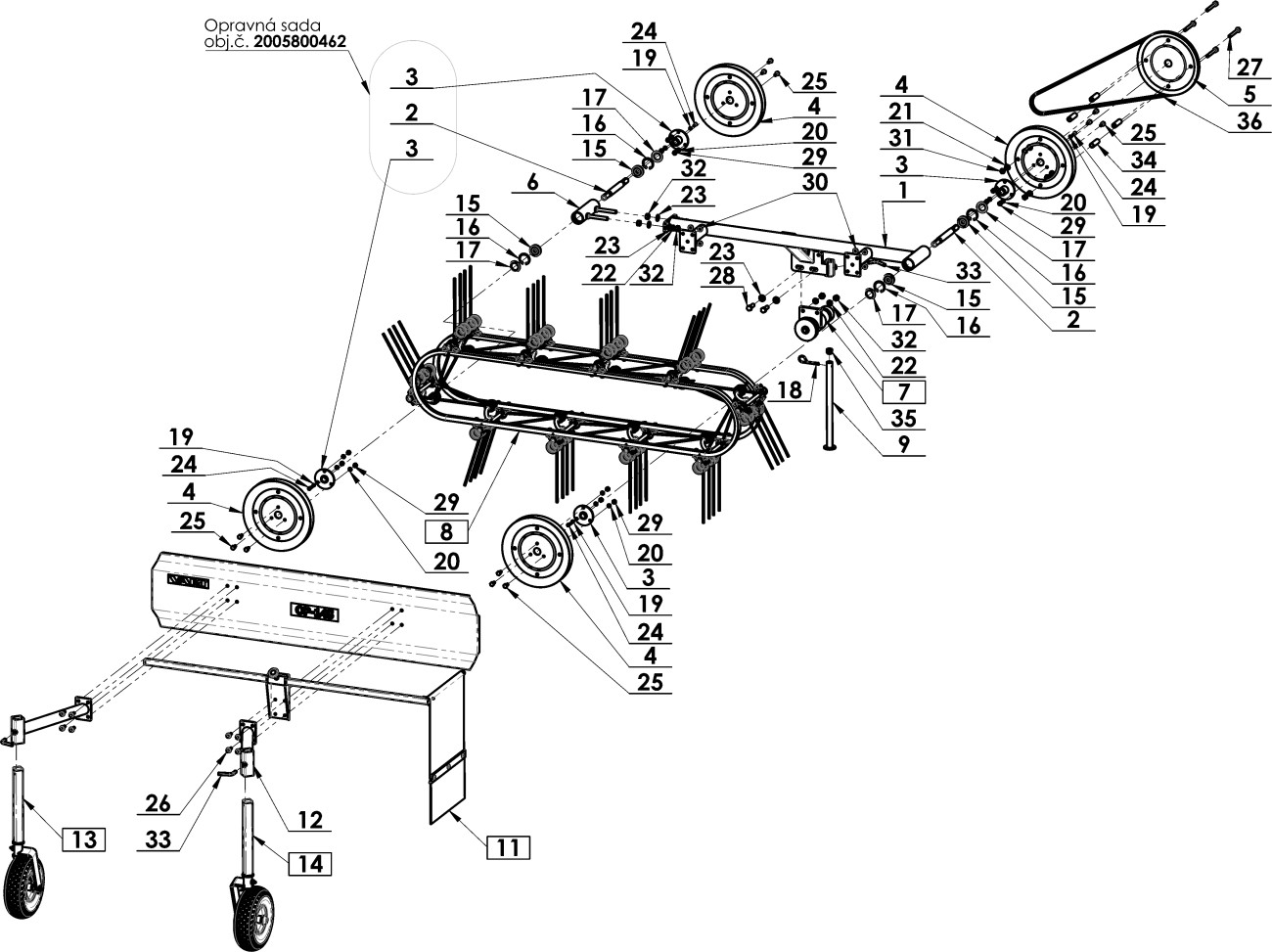

Technical drawing

Spare part list

Position		Name	Order no.	Price incl. VAT
1		Frame #1 2005800136	2005800136
2		? 0 pcs in stock Shaft #2 3005800133	3005800133	556,60 Kč	556,60 Kč
3		? 0 pcs in stock hub #3 2005800128	2005800128	726,00 Kč	726,00 Kč
4		? 0 pcs in stock Sheave #4 194521	194521	750,20 Kč	750,20 Kč
5		Sheave #5 194529	194529
6		Housing #6 194506	194506
7		in stock Flange #7 2005800112	2005800112	3 388,00 Kč	3 388,00 Kč
8		Belt with tines #8 2005800135	2005800135
9		Leg #9 194511	194511
10		Cover #10 2005800137	2005800137
11		last 2 pcs Aperture #11 2005800116	2005800116	2 057,00 Kč	2 057,00 Kč
12		? 0 pcs in stock Wheel arm weldment #12 194503	194503	810,70 Kč	810,70 Kč
13		Wheel #13 2005800252	2005800252
14		Wheel #14 2005800113	2005800113
15		in stock Bearing #15 9943158	9943158	72,60 Kč	72,60 Kč
16		in stock Retaining ring #16 136506	136506	7,30 Kč	7,30 Kč
17		Ring #17 51311733138	51311733138
18		in stock Split spin #18 108501	108501	41,10 Kč	41,10 Kč
19		in stock Washer #19 127520	127520	4,80 Kč	4,80 Kč
20		in stock Washer #20 110538	110538	1,20 Kč	1,20 Kč
21		in stock Washer #21 189567	189567	1,20 Kč	1,20 Kč
22		Washer #22 51309019214	51309019214
23		in stock Washer #23 104503	104503	1,20 Kč	1,20 Kč
24		in stock Bolt #24 150538	150538	1,50 Kč	1,50 Kč
25		in stock Bolt #25 189548	189548	1,80 Kč	1,80 Kč
26		in stock Bolt #26 51309900032	51309900032	9,70 Kč	9,70 Kč
27		? 0 pcs in stock Bolt #27 170525	170525	6,20 Kč	6,20 Kč
28		Bolt #28 51309503853	51309503853
29		in stock Nut #29 104572	104572	0,60 Kč	0,60 Kč
30		in stock Nut #30 51311900006	51311900006	1,80 Kč	1,80 Kč
31		in stock Nut #31 106529	106529	3,60 Kč	3,60 Kč
32		in stock Nut #32 106531	106531	2,40 Kč	2,40 Kč
33		Handle #33 194510	194510
34		Pillar #34 3005800132	3005800132
35		The stopper ring #35 189524	189524
36		in stock Belt #36 51482489124	51482489124	169,40 Kč	169,40 Kč
37		Sticker #37 3003500082	3003500082
38		Label #38 3005800101	3005800101
99		? 0 pcs in stock Set #99 2005800462	2005800462	1 754,50 Kč	1 754,50 Kč
