Order no.: 1000700123

Documents to download

Format	Name	Size
PDF	Katalogový list	567 kB

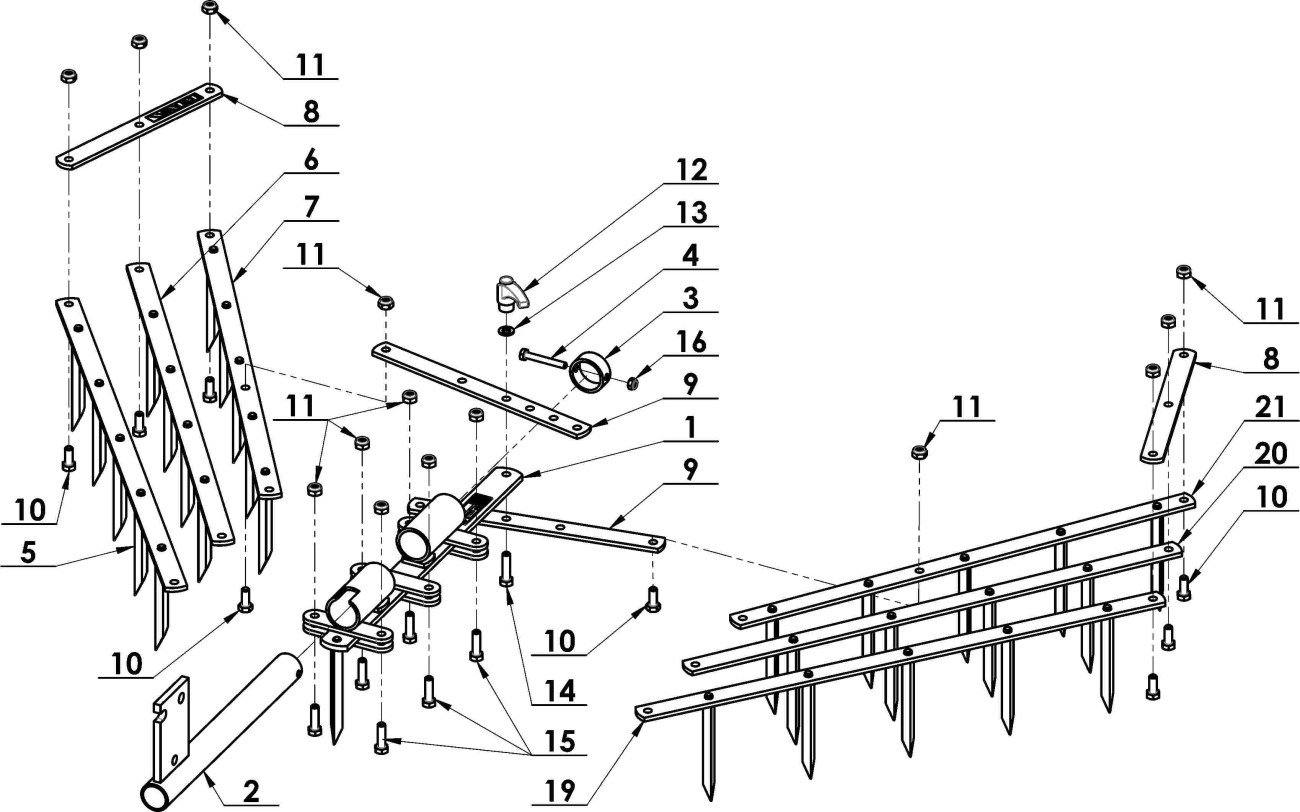

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Frame #1 113009	113009
2	last 3 pcs Shaft assembly #2 113010	113010	1 391,50 Kč	1 391,50 Kč
3	? 0 pcs in stock Stop #3 113011	113011	307,30 Kč	307,30 Kč
4	? 0 pcs in stock Bolt #4 171511	171511	3,60 Kč	3,60 Kč
5	Front arm right #5 113022	113022
6	Middle arm right #6 113024	113024
7	? 0 pcs in stock Rear arm right #7 113026	113026	2 057,00 Kč	2 057,00 Kč
8	Connecting arm #8 113015	113015
9	Left brace #9 113016	113016
10	in stock Bolt #10 111518	111518	4,80 Kč	4,80 Kč
11	in stock Nut #11 195527	195527	4,20 Kč	4,20 Kč
12	less than 5 pcs Lever #12 113501	113501	106,50 Kč	106,50 Kč
13	in stock Washer #13 189567	189567	1,20 Kč	1,20 Kč
14	in stock Bolt #14 106535	106535	7,90 Kč	7,90 Kč
15	last 3 pcs Bolt #15 51309203163	51309203163	6,00 Kč	6,00 Kč
16	in stock Nut #16 104622	104622	1,20 Kč	1,20 Kč
17	Label #17 3000700126	3000700126
18	in stock SAMOLEPKA VARI 90x16 BILA #18 3208731073B	3208731073B	19,40 Kč	19,40 Kč
19	Front arm left #19 113021	113021
20	Middle arm left #20 113023	113023
21	? 0 pcs in stock Rear arm left #21 113025	113025	2 057,00 Kč	2 057,00 Kč
