Order no.: 1002200023

Documents to download

Format	Name	Size
PDF	Katalogový list	121 kB

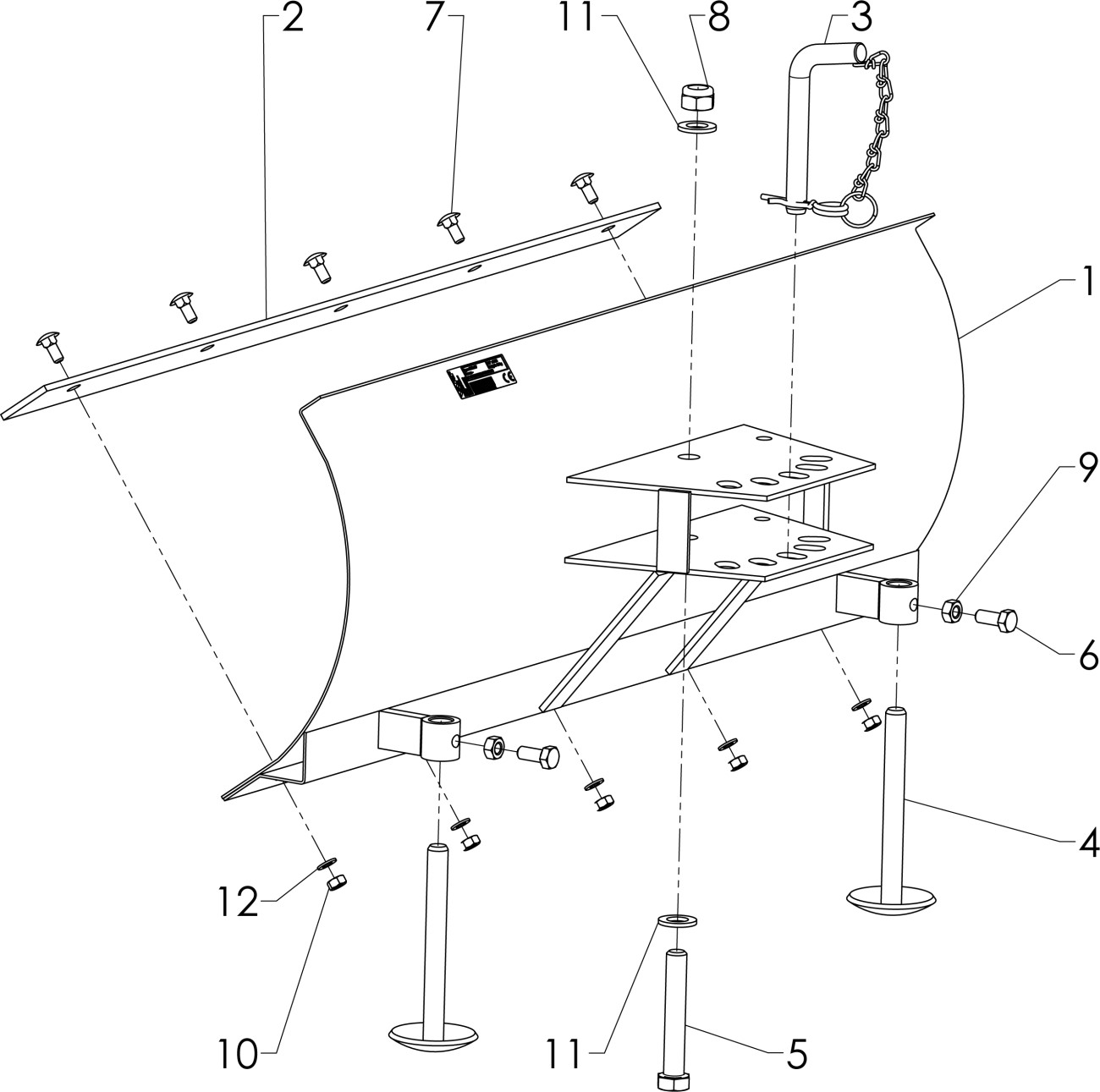

Technical drawing

Spare part list

Position		Name	Order no.	Pieces	Price incl. VAT
1		? 0 pcs in stock Ploughshare #1 1 pc 194001	194001	1	4 780,70 Kč	4 780,70 Kč
2		less than 5 pcs Blade #2 1 pc 194004	194004	1	399,30 Kč	399,30 Kč
3		in stock Pin assembly #3 1 pc 121001	121001	1	1 142,20 Kč	1 142,20 Kč
4		last 2 pcs Sliding support #4 2 pcs 194003	194003	2	478,00 Kč	478,00 Kč
5		? 0 pcs in stock Bolt #5 1 pc 147512	147512	1	23,90 Kč	23,90 Kč
6		in stock Bolt #6 2 pcs 111518	111518	2	4,80 Kč	4,80 Kč
7		in stock Bolt #7 5 pcs 51309019088	51309019088	5	1,20 Kč	1,20 Kč
8		in stock Nut #8 1 pc 147513	147513	1	4,80 Kč	4,80 Kč
9		in stock Nut #9 2 pcs 106529	106529	2	3,60 Kč	3,60 Kč
10		in stock Nut #10 5 pcs 104572	104572	5	0,60 Kč	0,60 Kč
11		in stock Washer #11 2 pcs 189566	189566	2	2,40 Kč	2,40 Kč
12		in stock Washer #12 5 pcs 131517	131517	5	0,60 Kč	0,60 Kč
