Chassis

Podvozek jednoúčelový GCVX200

Order no.: 2004400304

Documents to download

Format	Name	Size
PDF	Katalogový list	521 kB

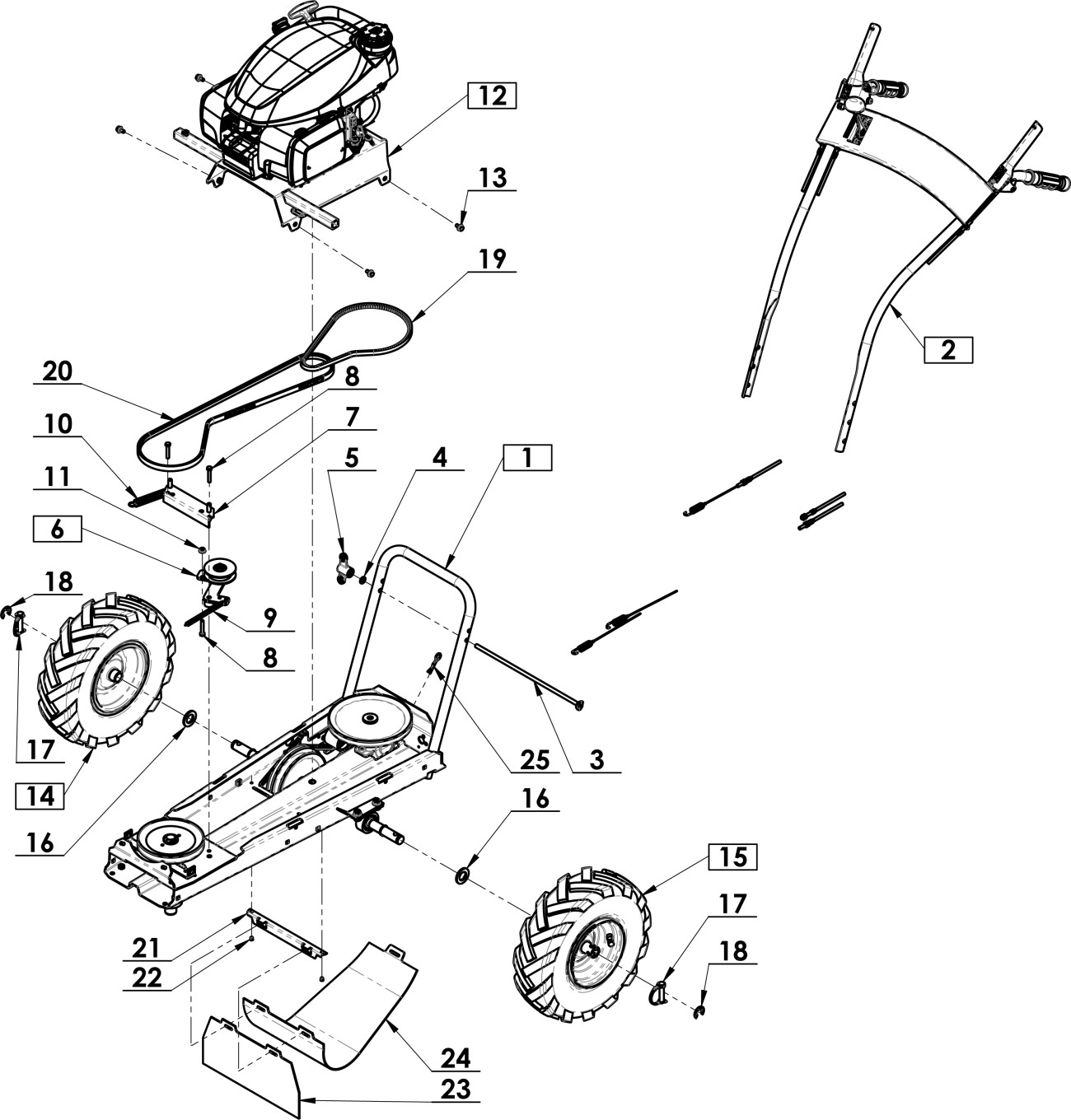

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Base #1 2004400001	2004400001
2	Handlebars #2 2003901072	2003901072
3	in stock Bolt #3 2004400063	2004400063	133,10 Kč	133,10 Kč
4	in stock Washer #4 131517	131517	0,60 Kč	0,60 Kč
5	in stock Wing nut #5 189521	189521	108,90 Kč	108,90 Kč
6	Disc pulley #6 2001400003	2001400003
7	in stock Guide #7 2004400012	2004400012	320,60 Kč	320,60 Kč
8	in stock Bolt #8 184587	184587	1,20 Kč	1,20 Kč
9	in stock Spring #9 184553	184553	16,90 Kč	16,90 Kč
10	in stock Spring #10 169514	169514	19,40 Kč	19,40 Kč
11	in stock Nut #11 51311900005	51311900005	1,00 Kč	1,00 Kč
12	Engine plate #12 2004400303	2004400303
13	in stock Bolt #13 51309900007	51309900007	2,40 Kč	2,40 Kč
14	? 0 pcs in stock Right wheel #14 2001400049	2001400049	1 161,60 Kč	1 161,60 Kč
15	last 1 pc Left wheel #15 2001400048	2001400048	1 161,60 Kč	1 161,60 Kč
16	in stock Washer #16 124530	124530	3,00 Kč	3,00 Kč
17	in stock Pin #17 182533	182533	42,40 Kč	42,40 Kč
18	in stock Retaining ring #18 184621	184621	7,30 Kč	7,30 Kč
19	? 0 pcs in stock V-belt #19 51272212101	51272212101	157,30 Kč	157,30 Kč
20	in stock Belt #20 184531	184531	532,40 Kč	532,40 Kč
21	in stock Cover holder #21 3004400006	3004400006	83,50 Kč	83,50 Kč
22	in stock Tear rivet #22 51311698057	51311698057	4,80 Kč	4,80 Kč
23	in stock Mud flap #23 3004400007	3004400007	145,20 Kč	145,20 Kč
24	in stock Gearbox cover #24 3004400008	3004400008	223,80 Kč	223,80 Kč
25	in stock Cotter pin #25 106524	106524	27,80 Kč	27,80 Kč
