Engine

0 pcs in stock Engine
5 445,00 Kč

4 500,00 Kč bez DPH

MOTOR ZONGSHEN XP200A

Order no.: 51482489163
Weight: 13,1 kg

Documents to download
Format Name Size
JPG Katalogový list 1 482 kB

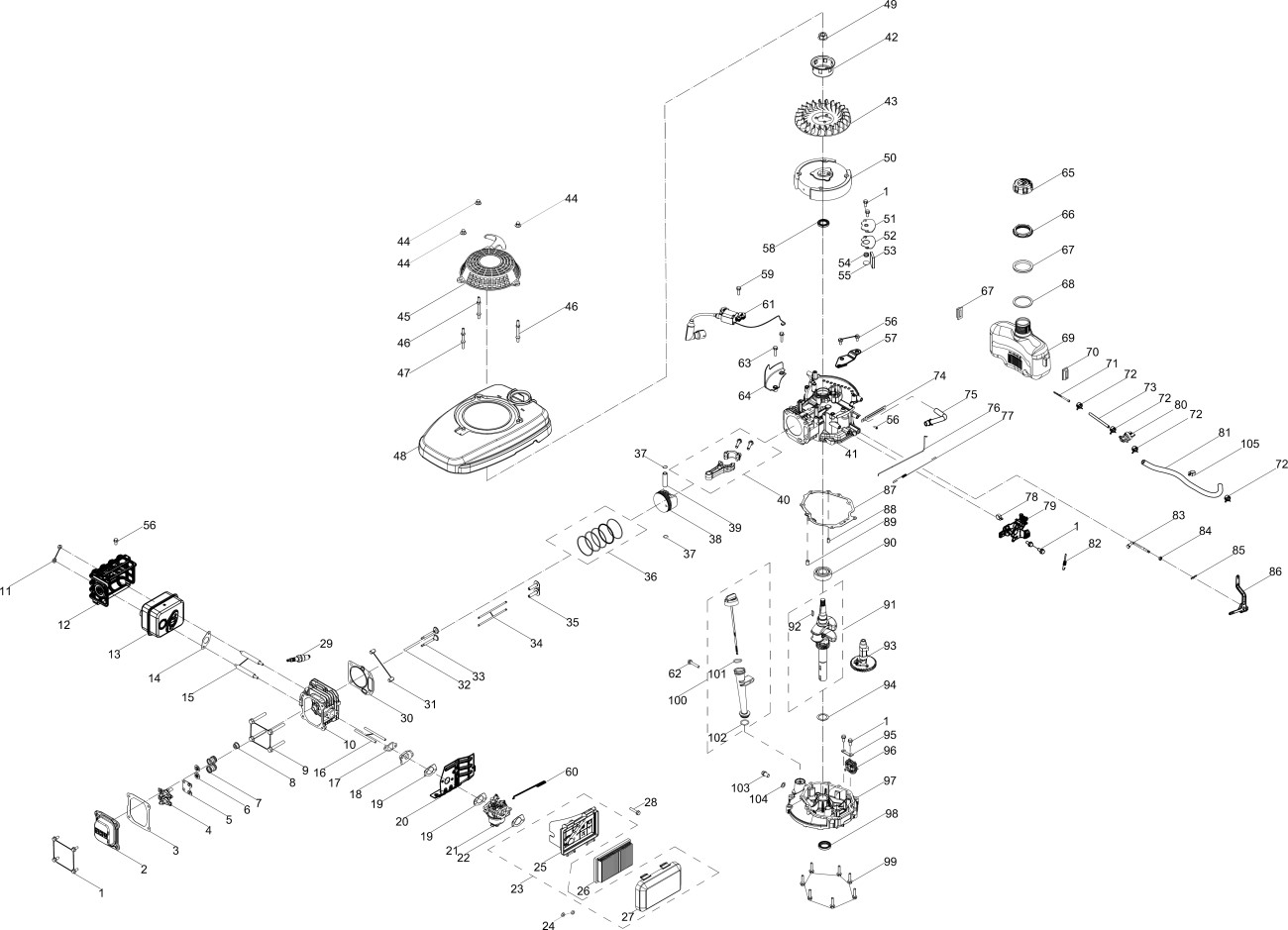

Technical drawing
MOTOR ZONGSHEN XP200A
Spare part list
Position Name Order no. Price incl. VAT
1 Bolt, M6x14
#1 100011262-0004
100011262-0004
2 in stock CYLINDER HEAD COVER
#2 100002308
100002308
36,30 Kč
36,30 Kč
3 in stock Gasket, Valve Cover
#3 100030069
100030069
24,20 Kč
24,20 Kč
4 in stock ROCKER ARM ASSEMBLY
#4 100004421
100004421
24,20 Kč
24,20 Kč
5 in stock Rocker Arm Base
#5 100063679
100063679
24,20 Kč
24,20 Kč
6 last 1 pc VALVE SPRING SEAT
#6 100004580
100004580
7,30 Kč
7,30 Kč
7 in stock VALVE SPRING
#7 100004565
100004565
7,30 Kč
7,30 Kč
8 in stock INTAKE VALVE SEAL
#8 100004598
100004598
12,10 Kč
12,10 Kč
9 Bolt, M8x54
#9 100002461-0002
100002461-0002
10 last 2 pcs Cylinder Head
#10 100066426
100066426
484,00 Kč
484,00 Kč
11 Nut, M6
#11 100011452-0010
100011452-0010
12 in stock Muffler Guard
#12 100130811
100130811
193,60 Kč
193,60 Kč
13 in stock Muffler
#13 100143916
100143916
242,00 Kč
242,00 Kč
14 in stock Gasket, Muffler
#14 100066439
100066439
30,20 Kč
30,20 Kč
15 in stock Stud, M6x98
#15 100061091-0001
100061091-0001
14,50 Kč
14,50 Kč
16 Stud, M6x87
#16 100010348-0001
100010348-0001
17 Těsnění izolátoru
#17 100053668
100053668
18 0 pcs in stock CARBURETOR INSULATOR
#18 100005603
100005603
12,10 Kč
12,10 Kč
19 in stock Gasket, Carburettor
#19 100074676
100074676
12,10 Kč
12,10 Kč
20 in stock Shroud
#20 100066441
100066441
24,20 Kč
24,20 Kč
21 0 pcs in stock Carburettor
#21 100094417-0001
100094417-0001
665,50 Kč
665,50 Kč
22 0 pcs in stock AIR FILTER GASKET
#22 100005946
100005946
12,10 Kč
12,10 Kč
23 in stock Air Filter Assembly
#23 100004649
100004649
181,50 Kč
181,50 Kč
24 Nut, M6
#24 100011463-0003
100011463-0003
26 28.02.2025 100004759 AIR FILTER ELEMENT XP-200
#26 100004759
100004759
190,00 Kč
190,00 Kč
28 Bolt, M6x30
#28 100011270-0007
100011270-0007
29 Zapalovací svíčka
#29 100009378
100009378
30 0 pcs in stock Gasket, Cylinder Head
#30 100010205
100010205
30,20 Kč
30,20 Kč
31 last 2 pcs DOWEL PIN 10x16
#31 100010558
100010558
8,50 Kč
8,50 Kč
32 in stock INTAKE VALVE
#32 100004523
100004523
36,30 Kč
36,30 Kč
33 0 pcs in stock EXHAUST VALVE
#33 100004547
100004547
36,30 Kč
36,30 Kč
34 in stock Push Rod
#34 100066141
100066141
36,30 Kč
36,30 Kč
35 in stock TAPPET
#35 100004262
100004262
14,50 Kč
14,50 Kč
36 last 3 pcs Piston Ring Set
#36 100003245
100003245
90,80 Kč
90,80 Kč
37 less than 5 pcs CIRCLIP, PISTON PIN
#37 100003221
100003221
1,20 Kč
1,20 Kč
38 in stock Piston
#38 100003079
100003079
145,20 Kč
145,20 Kč
39 in stock PISTON PIN
#39 100003125
100003125
60,50 Kč
60,50 Kč
40 in stock Connecting Rod Assembly
#40 100030472
100030472
302,50 Kč
302,50 Kč
41 in stock Crankcase
#41 100066428
100066428
1 089,00 Kč
1 089,00 Kč
42 in stock Starter Cup
#42 100007546-0001
100007546-0001
30,20 Kč
30,20 Kč
43 last 2 pcs COOLING FAN
#43 100007027
100007027
72,60 Kč
72,60 Kč
44 in stock NUT
#44 100008477-0001
100008477-0001
15,00 Kč
15,00 Kč
45 0 pcs in stock RECOIL STARTER
#45 100007217-0004
100007217-0004
690,00 Kč
690,00 Kč
46 in stock Stud, M6x78,5
#46 100010302-0001
100010302-0001
14,50 Kč
14,50 Kč
47 Stud, M6x74
#47 100010303-0001
100010303-0001
48 less than 5 pcs Inner Shroud
#48 100007673
100007673
145,20 Kč
145,20 Kč
49 Nut, M14x1,5
#49 100011462-0002
100011462-0002
50 last 1 pc Flywheel
#50 100053861
100053861
363,00 Kč
363,00 Kč
51 in stock Breather Cover
#51 100004053-0001
100004053-0001
18,20 Kč
18,20 Kč
52 in stock Gasket, Oil Filter
#52 100010260
100010260
12,10 Kč
12,10 Kč
53 in stock BREATHER SCREEN
#53 100004065
100004065
12,10 Kč
12,10 Kč
54 in stock BREATHER VALVE SPRING
#54 100008440
100008440
1,20 Kč
1,20 Kč
55 Breather Valve
#55 100140934
100140934
56 Bolt, M6x12
#56 100011261-0014
100011261-0014
57 in stock Shield
#57 100066440-0001
100066440-0001
18,20 Kč
18,20 Kč
58 in stock Oil Seal, ?22x?35x6
#58 100017640
100017640
18,20 Kč
18,20 Kč
59 Bolt, M6x20
#59 100011266-0010
100011266-0010
60 Páčka sytiče
#60 100712245
100712245
61 Ignition Module
#61 100009228-0002
100009228-0002
62 Bolt, M6x35
#62 100011271-0006
100011271-0006
63 Bolt, M6x25
#63 100011268-0009
100011268-0009
64 in stock Shield
#64 100007135
100007135
18,20 Kč
18,20 Kč
65 Fuel Cap
#65 100008754-0006
100008754-0006
66 in stock TANK NUT
#66 100008880
100008880
12,10 Kč
12,10 Kč
67 in stock DAMPING PAD, FUEL TANK
#67 100008662
100008662
29,00 Kč
29,00 Kč
68 last 1 pc VIBRATION PAD
#68 100008936
100008936
18,20 Kč
18,20 Kč
69 in stock FUEL TANK
#69 100008686-0001
100008686-0001
242,00 Kč
242,00 Kč
70 in stock GASKET, FUEL TANK
#70 100008663
100008663
14,50 Kč
14,50 Kč
71 in stock FUEL FILTER
#71 100009020
100009020
268,60 Kč
268,60 Kč
72 in stock CLAMP, FUEL HOSE
#72 100005136
100005136
6,00 Kč
6,00 Kč
73 Fuel Hose, ?6,3x?12,5x80
#73 100017739-0001
100017739-0001
74 CLAMP
#74 100000655
100000655
75 in stock Breather Hose
#75 100002858
100002858
12,10 Kč
12,10 Kč
76 in stock Throttle Linkage
#76 100007955
100007955
9,70 Kč
9,70 Kč
77 0 pcs in stock Idle Spring
#77 100007923
100007923
6,00 Kč
6,00 Kč
78 in stock WIRE CLAMP
#78 100000671
100000671
2,40 Kč
2,40 Kč
79 0 pcs in stock Governor Gear Bracket Assembly
#79 100008093-0001
100008093-0001
96,80 Kč
96,80 Kč
80 0 pcs in stock FUEL SWITCH
#80 100008900
100008900
121,00 Kč
121,00 Kč
81 Fuel Hose, ?6,3x?12,5x210
#81 100017740-0001
100017740-0001
82 Pružina regulátoru
#82 100713458
100713458
83 in stock Hřídel ramene regulátoru
#83 100007971
100007971
242,00 Kč
242,00 Kč
84 in stock OIL SEAL 6x11x4
#84 100017630
100017630
7,30 Kč
7,30 Kč
85 COTTER PIN
#85 100007986
100007986
86 Governor Lever
#86 100054663-0001
100054663-0001
87 in stock Gasket, Crankcase
#87 100053669
100053669
30,20 Kč
30,20 Kč
88 in stock DOWEL PIN 7x14
#88 100010544
100010544
8,50 Kč
8,50 Kč
89 in stock DOWEL PIN 9x14
#89 100010554
100010554
8,50 Kč
8,50 Kč
90 BEARING 6205
#90 100010680
100010680
91 0 pcs in stock Crankshaft XP-200A
#91 100051661
100051661
949,80 Kč
949,80 Kč
92 in stock WOODRUFF KEY
#92 100010577
100010577
3,60 Kč
3,60 Kč
93 last 2 pcs Camshaft
#93 100004293
100004293
181,50 Kč
181,50 Kč
94 in stock WASHER 25.4x34x1
#94 100010527-0001
100010527-0001
12,10 Kč
12,10 Kč
95 last 3 pcs GOVERNOR GEAR MOUNTING PLATE
#95 100008451
100008451
18,20 Kč
18,20 Kč
96 last 3 pcs GOVERNOR GEAR ASSEMBLY
#96 100008293
100008293
60,50 Kč
60,50 Kč
97 Kryt klikové skříně
#97 100126613
100126613
98 in stock GUFERO 25X40X7 SPODNI
#98 100017643
100017643
18,20 Kč
18,20 Kč
99 Bolt, M6x28
#99 100011269-0010
100011269-0010
100 in stock Dipstick
#100 100004118-0004
100004118-0004
60,50 Kč
60,50 Kč
101 in stock Těsnění měrky
#101 100004142
100004142
6,00 Kč
6,00 Kč
102 in stock Těsnění měrky
#102 100004141
100004141
6,00 Kč
6,00 Kč
103 Earth Bolt
#103 100010272-0001
100010272-0001
104 in stock WASHER 10x1.5x16
#104 100010459
100010459
1,20 Kč
1,20 Kč
105 in stock Clamp
#105 100052808
100052808
2,40 Kč
2,40 Kč
