1005801106

1005801106

Order no.: 1005801106

Documents to download

Format	Name	Size
PDF	Katalogový list	834 kB

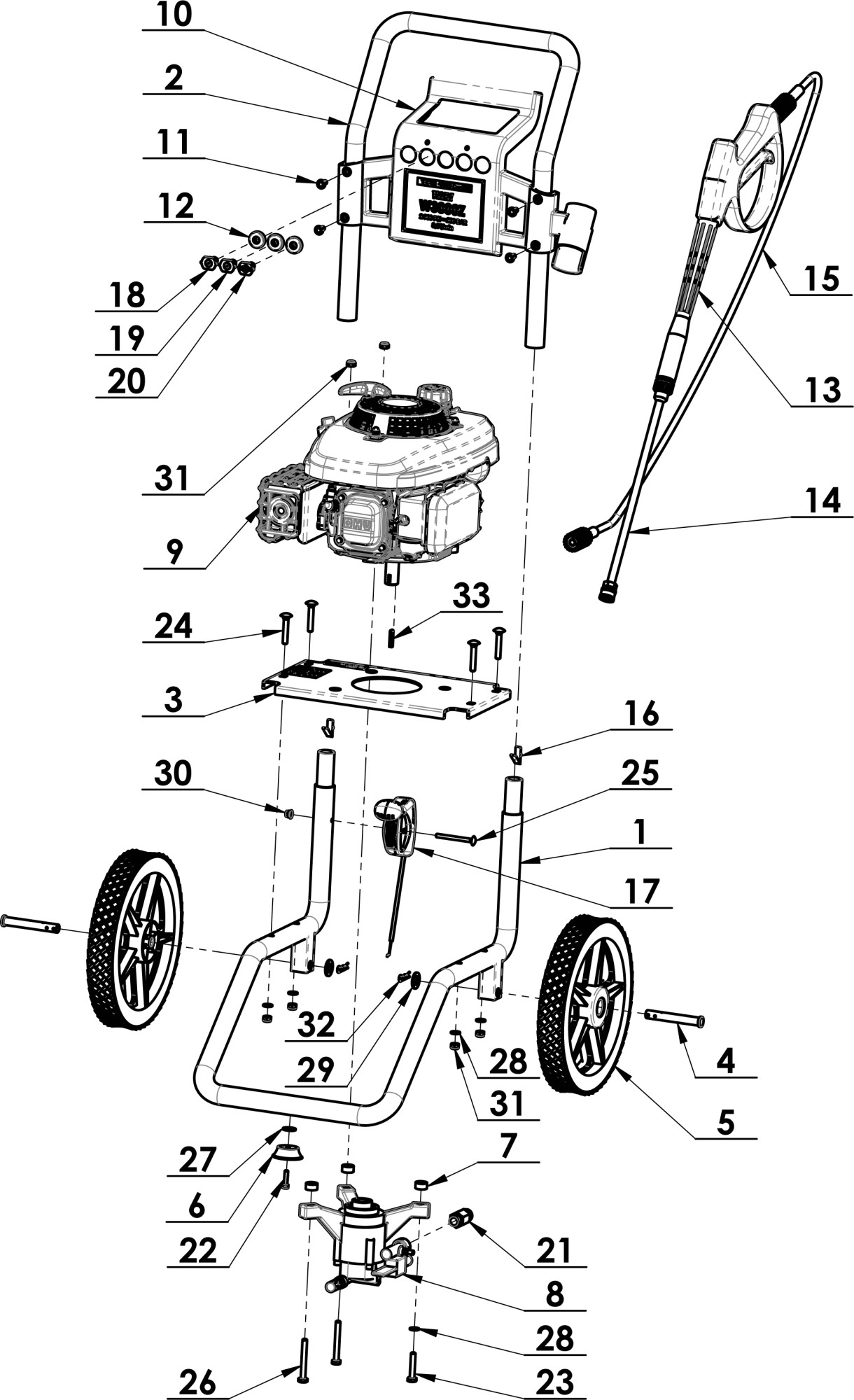

Technical drawing

Spare part list

Position		Name	Order no.	Price incl. VAT
1		Handle #1 FR101-LS302	FR101-LS302
2		Handle #2 FR101-US001	FR101-US001
3		Engine plate #3 HB201-MS002	HB201-MS002
4		Pin #4 AS000-WHP02	AS000-WHP02
5		Wheel #5 AP000-A16001.014	AP000-A16001.014
6		Stop #6 AB000-4909	AB000-4909
7		less than 5 pcs Pillar #7 SADTR-7508264	SADTR-7508264	29,00 Kč	29,00 Kč
8		last 1 pc MATICE UNIVERZALNI KOMPLETNI #8 PP000-001-05	PP000-001-05	242,00 Kč	242,00 Kč
8		in stock Pump #8 PA000-PWVR28-2.5H	PA000-PWVR28-2.5H	3 146,00 Kč	3 146,00 Kč
8		less than 5 pcs VENTIL TEPELNY #8 SA000-TRV14	SA000-TRV14	435,60 Kč	435,60 Kč
9		? 0 pcs in stock Engine #9 51482489163	51482489163	5 445,00 Kč	5 445,00 Kč
10		Holder #10 AP000-HH001	AP000-HH001
11		Clamp #11 AP000-605064	AP000-605064
12		Rubber washer #12 AB000-GR001	AB000-GR001
13		in stock High pressure pistol #13 AP000-PG001	AP000-PG001	701,80 Kč	701,80 Kč
14		in stock Extension #14 AS000-LA001	AS000-LA001	544,50 Kč	544,50 Kč
15		last 3 pcs Hose #15 AP000-HO002	AP000-HO002	1 149,50 Kč	1 149,50 Kč
16		Flexible clip #16 AS000-SC001	AS000-SC001
17		Lever #17 51532888078	51532888078
18		in stock Nozzle #18 ASY00-N2915	ASY00-N2915	72,60 Kč	72,60 Kč
19		in stock Nozzle #19 ASW00-N2940	ASW00-N2940	72,60 Kč	72,60 Kč
20		less than 5 pcs Nozzle #20 ASBS0-N0065	ASBS0-N0065	72,60 Kč	72,60 Kč
21		last 2 pcs Spojka mosazna velka #21 PP000-001-02	PP000-001-02	121,00 Kč	121,00 Kč
22		Screw #22 51309543017	51309543017
23		Bolt #23 169510	169510
24		in stock Bolt #24 189593	189593	3,60 Kč	3,60 Kč
25		Bolt #25 51309019089	51309019089
26		in stock Bolt #26 51309201095	51309201095	7,30 Kč	7,30 Kč
27		in stock Washer #27 169508	169508	1,20 Kč	1,20 Kč
28		in stock Washer #28 131517	131517	0,60 Kč	0,60 Kč
29		in stock Wascher #29 138512	138512	4,20 Kč	4,20 Kč
30		in stock Nut #30 51309900034	51309900034	4,80 Kč	4,80 Kč
31		in stock Nut #31 104622	104622	1,20 Kč	1,20 Kč
32		Cotter pin #32 CA000-39610	CA000-39610
33		Key #33 3000700064	3000700064
34		Sticker #34 LW000-VAR3000Z	LW000-VAR3000Z
35		Sticker #35 3208731064	3208731064
36		Label #36 3005801107	3005801107
