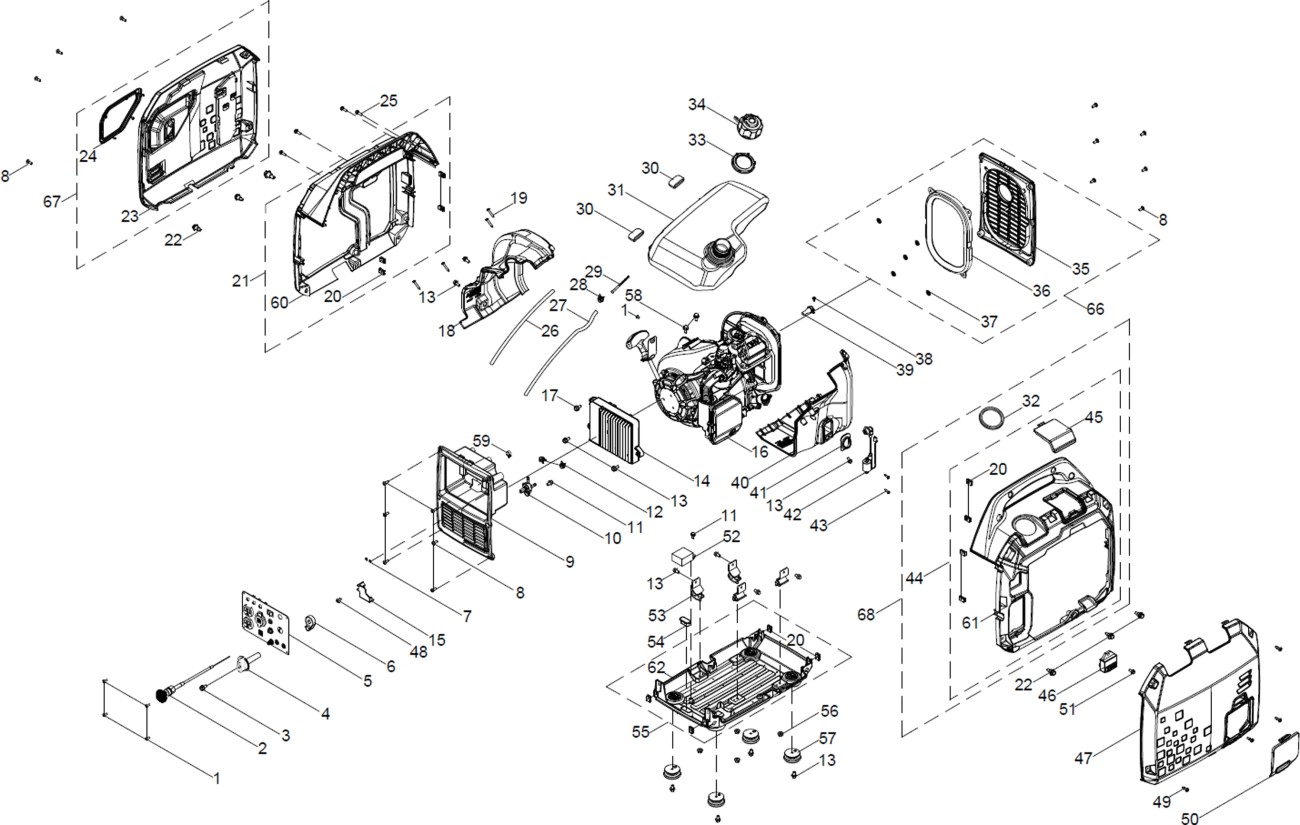

| 1 |
 |
Screw, M4x10
#1
100010946-0001
|
100010946-0001 |
|
|
| 2 |
|
Throttle Cable
#2
100074968
|
100074968 |
|
|
| 3 |
|
Bolt, M4x16
#3
100137684-0003
|
100137684-0003 |
|
|
| 4 |
|
Fuel Switch Lever
#4
100072724-0003
|
100072724-0003 |
|
|
| 5 |
|
Control Panel
#5
100095692-0006
|
100095692-0006 |
|
|
| 6 |
|
Main Shaft Slide
#6
100083841-0001
|
100083841-0001 |
|
|
| 7 |
|
Bearing Clamp Ring 1,8x6
#7
100091757
|
100091757 |
|
|
| 8 |
|
Bolt
#8
100081995
|
100081995 |
|
|
| 9 |
|
Left Hull
#9
100136366-0003
|
100136366-0003 |
|
|
| 10 |
|
Fuel Switch
#10
100126150
|
100126150 |
|
|
| 11 |
|
Bolt, M6x14
#11
100011571-0001
|
100011571-0001 |
|
|
| 12 |
|
Clamp 7,5
#12
100005149
|
100005149 |
|
|
| 13 |
|
Bolt, M6x12
#13
100011570-0001
|
100011570-0001 |
|
|
| 14 |
|
Inverter
#14
100160803
|
100160803 |
|
|
| 15 |
|
Block
#15
100714558
|
100714558 |
|
|
| 16 |
|
Engine ZS148FD/P-D
#16
1ZZDDF229
|
1ZZDDF229 |
|
|
| 17 |
|
Bolt, M5x12
#17
100011249-0003
|
100011249-0003 |
|
|
| 18 |
|
Cylinder Head Baffle
#18
100072874
|
100072874 |
|
|
| 19 |
|
Self-tapping Screw, ST4,2x25
#19
100011004-0001
|
100011004-0001 |
|
|
| 20 |
|
Fuel Tank Mount Thread Tab
#20
100050562
|
100050562 |
|
|
| 21 |
|
Left Hull
#21
100092440-0010
|
100092440-0010 |
|
|
| 22 |
|
Alignment Bolt
#22
100081994
|
100081994 |
|
|
| 23 |
|
Left Cover Board
#23
100097032-0006
|
100097032-0006 |
|
|
| 24 |
|
Appearance Protect
#24
100097035-0001
|
100097035-0001 |
|
|
| 25 |
|
Screw, M5x16
#25
100033079-0003
|
100033079-0003 |
|
|
| 26 |
|
Fuel Hose Jacket 9x11x215
#26
100131884
|
100131884 |
|
|
| 27 |
|
Fuel Hose
#27
100131883
|
100131883 |
|
|
| 28 |
|
Clamp 9,7x8
#28
100090871
|
100090871 |
|
|
| 29 |
|
in stock
FUEL FILTER
#29
100009020
|
100009020 |
268,60 Kč |
268,60 Kč
|
| 30 |
|
Damping Pad
#30
100072727
|
100072727 |
|
|
| 31 |
|
Fuel Tank
#31
100087371
|
100087371 |
|
|
| 32 |
|
Damping Pad
#32
100073150
|
100073150 |
|
|
| 33 |
|
Nut
#33
100008887
|
100008887 |
|
|
| 34 |
|
Fuel Cap
#34
100072726-0012
|
100072726-0012 |
|
|
| 35 |
|
Service Window
#35
100072721-0001
|
100072721-0001 |
|
|
| 36 |
|
Gasket, Muffler
#36
100072722
|
100072722 |
|
|
| 37 |
|
Bearing Clamp Ring 5,5x14
#37
100087972
|
100087972 |
|
|
| 38 |
|
Self-tappling Screw, ST4,2x9,5
#38
100011000-0001
|
100011000-0001 |
|
|
| 39 |
|
Spark Arrester
#39
100085794
|
100085794 |
|
|
| 40 |
|
Cylinder Head Baffle
#40
100072875
|
100072875 |
|
|
| 41 |
|
O-Ring, Dipstick
#41
100072878
|
100072878 |
|
|
| 42 |
|
Ignition Coil
#42
100075041
|
100075041 |
|
|
| 43 |
|
Self-tappling Screw, ST4,8x20
#43
100093250-0005
|
100093250-0005 |
|
|
| 44 |
|
Right Hull
#44
100092441-0007
|
100092441-0007 |
|
|
| 45 |
|
Service Window
#45
100092444-0005
|
100092444-0005 |
|
|
| 46 |
|
Ignition Module
#46
100087971
|
100087971 |
|
|
| 47 |
|
Right Cover Board
#47
100097033-0007
|
100097033-0007 |
|
|
| 48 |
|
Self-tappling Screw, ST4,2x10
#48
100011001-0004
|
100011001-0004 |
|
|
| 49 |
|
Phillips Bolt
#49
100718184
|
100718184 |
|
|
| 50 |
|
Oil Window
#50
100092445-0013
|
100092445-0013 |
|
|
| 51 |
|
BOLT M6x12
#51
100011261-0004
|
100011261-0004 |
|
|
| 52 |
|
Rectifier
#52
100124948
|
100124948 |
|
|
| 53 |
|
Damping Pad
#53
100072715
|
100072715 |
|
|
| 54 |
|
Damping Pad
#54
100072710
|
100072710 |
|
|
| 55 |
|
Switch Box Base
#55
100088546
|
100088546 |
|
|
| 56 |
|
NUT M6
#56
100011452-0003
|
100011452-0003 |
|
|
| 57 |
|
Rubber Cap
#57
100072712
|
100072712 |
|
|
| 58 |
|
Bolt, M6x18
#58
100033099-0006
|
100033099-0006 |
|
|
| 59 |
|
last 3 pcs
WIRE CLAMP
#59
100000671
|
100000671 |
2,40 Kč |
2,40 Kč
|
| 60 |
|
Left Hull
#60
100139137
|
100139137 |
|
|
| 61 |
|
Right Hull
#61
100139138
|
100139138 |
|
|
| 62 |
|
Switch Box Base
#62
100072711
|
100072711 |
|
|
| 66 |
|
Service Window
#66
100775022
|
100775022 |
|
|
| 67 |
|
Left Cover Board
#67
100760566-0014
|
100760566-0014 |
|
|
| 68 |
|
Right Hull
#68
100760575-0003
|
100760575-0003 |
|
|
