1005800094

Novinka 1005800094

1005800094

Order no.: 1005800094

Documents to download
Format Name Size
PDF Katalogový list 708 kB

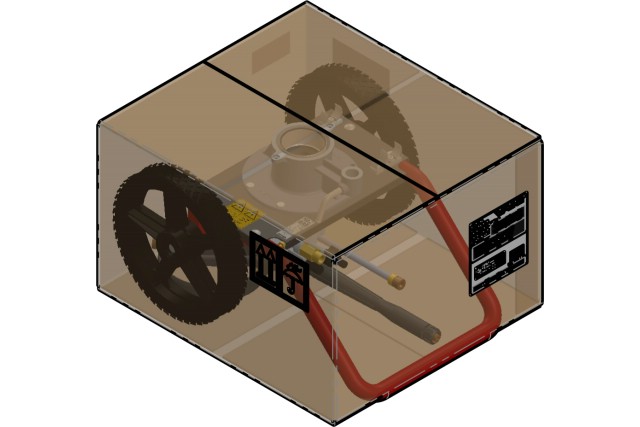

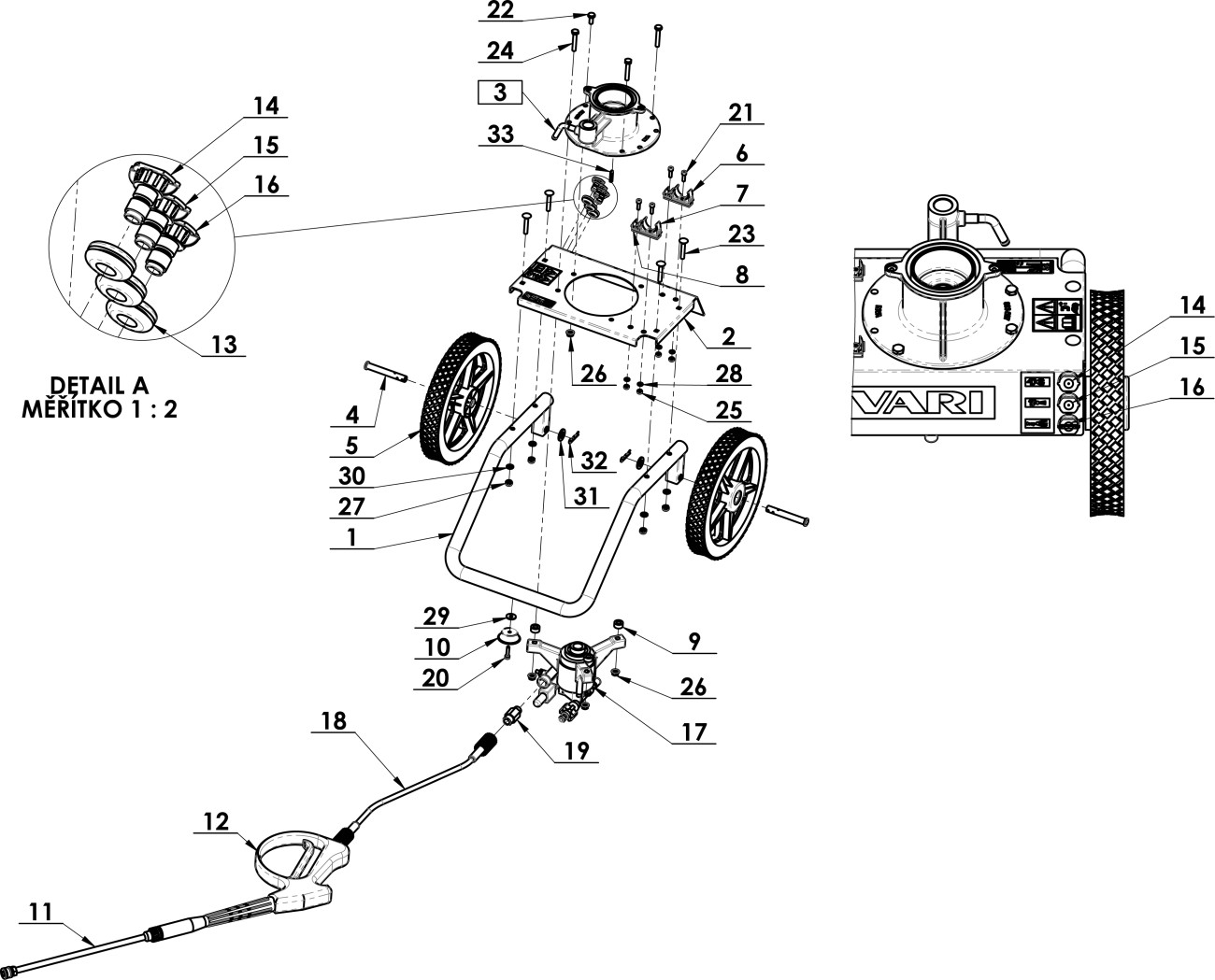

Technical drawing
1005800094
Spare part list
Position Name Order no. Price incl. VAT
1 Handle weldment
#1 FR101-LS301
FR101-LS301
2 Holder
#2 HB201-MS003
HB201-MS003
3 Flange
#3 2004200082
2004200082
4 Pin
#4 AS000-WHP02
AS000-WHP02
5 Wheel
#5 AP000-A16001.014
AP000-A16001.014
6 Holder
#6 AG000-10025P
AG000-10025P
7 Holder
#7 AG000-1T032CU
AG000-1T032CU
8 MATICE UNIVERZALNI KOMPLETNI
#8 PP000-001-05
PP000-001-05
8 Holder
#8 AB000-10012CU
AB000-10012CU
9 less than 5 pcs Pillar
#9 SADTR-7508264
SADTR-7508264
29,00 Kč
29,00 Kč
10 Stop
#10 AB000-4909
AB000-4909
11 in stock Extension
#11 AS000-LA001
AS000-LA001
544,50 Kč
544,50 Kč
12 in stock High pressure pistol
#12 AP000-PG001
AP000-PG001
701,80 Kč
701,80 Kč
13 Rubber washer
#13 AB000-GR001
AB000-GR001
14 less than 5 pcs Nozzle
#14 ASW00-N2940
ASW00-N2940
72,60 Kč
72,60 Kč
15 0 pcs in stock Nozzle
#15 ASY00-N2915
ASY00-N2915
72,60 Kč
72,60 Kč
16 last 3 pcs Nozzle
#16 ASBS0-N0065
ASBS0-N0065
72,60 Kč
72,60 Kč
17 in stock Pump
#17 PA000-PWVR28-2.5H
PA000-PWVR28-2.5H
3 146,00 Kč
3 146,00 Kč
18 in stock Hose
#18 AP000-HO002
AP000-HO002
1 149,50 Kč
1 149,50 Kč
19 last 2 pcs Spojka mosazna velka
#19 PP000-001-02
PP000-001-02
121,00 Kč
121,00 Kč
20 Screw
#20 51309543017
51309543017
21 in stock Bolt
#21 182507
182507
1,20 Kč
1,20 Kč
22 in stock Bolt
#22 189548
189548
1,80 Kč
1,80 Kč
23 in stock Bolt
#23 189593
189593
3,60 Kč
3,60 Kč
24 Bolt
#24 51309019148
51309019148
25 in stock Nut
#25 168516
168516
0,60 Kč
0,60 Kč
26 in stock Nut
#26 51311900006
51311900006
1,80 Kč
1,80 Kč
27 in stock Nut
#27 104622
104622
1,20 Kč
1,20 Kč
28 in stock Washer
#28 189571
189571
0,60 Kč
0,60 Kč
29 in stock Washer
#29 169508
169508
1,20 Kč
1,20 Kč
30 in stock Washer
#30 131517
131517
0,60 Kč
0,60 Kč
31 in stock Wascher
#31 138512
138512
4,20 Kč
4,20 Kč
32 Cotter pin
#32 CA000-39610
CA000-39610
33 Key
#33 3000700064
3000700064
34 Sticker
#34 3208731064
3208731064
35 Sticker
#35 3003500050
3003500050
36 Sticker Left brake
#36 51482489155
51482489155
37 Label
#37 3005800095
3005800095
