Cutting Plate

Cutting Plate

Order no.: RL98H-8

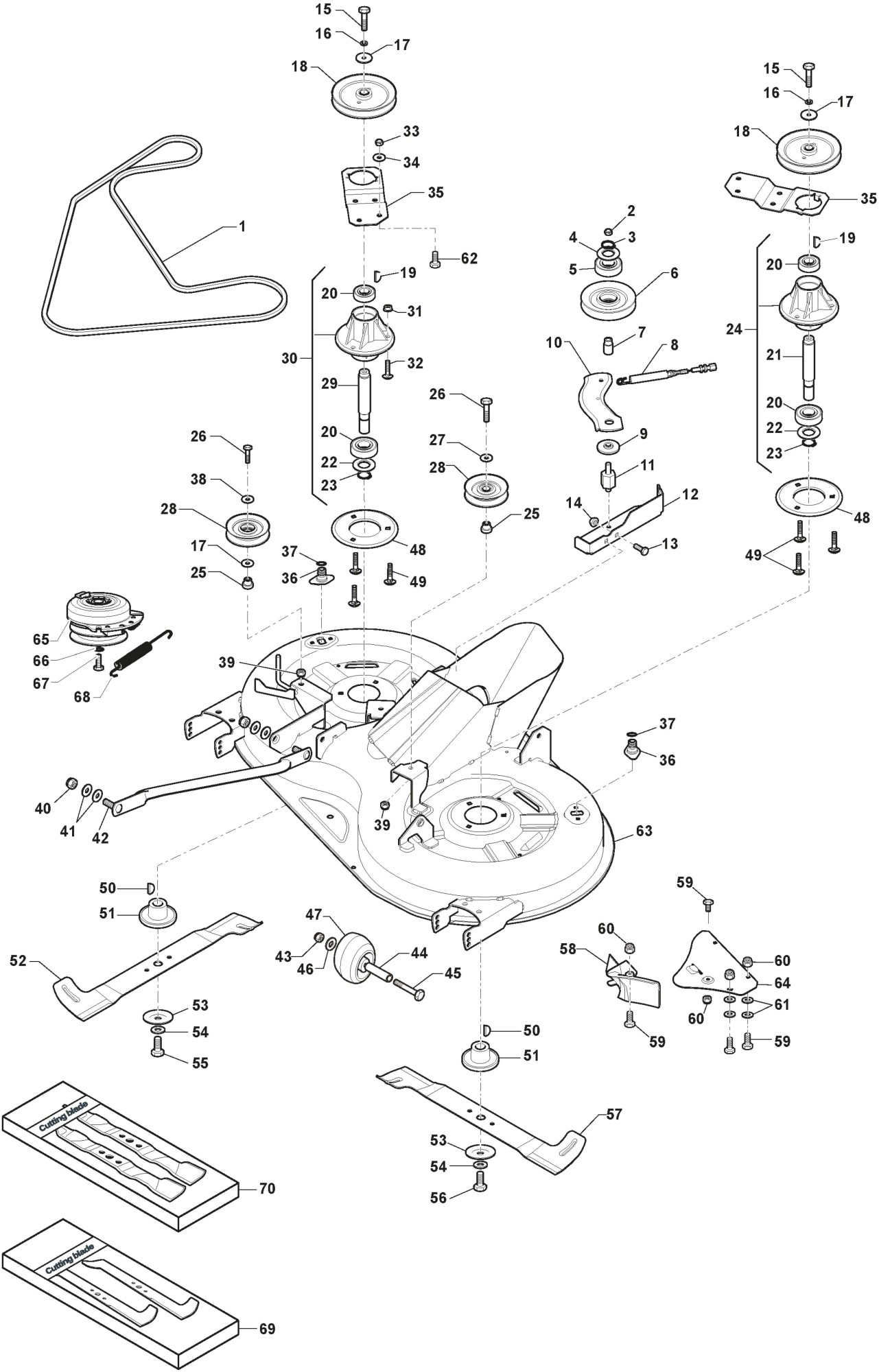

Technical drawing
Cutting Plate
Spare part list
Position Name Order no. Price incl. VAT
1 less than 5 pcs V-Belt
#1 135061509
135061509
2 528,90 Kč
2 528,90 Kč
2 Nut
#2 112293201
112293201
3 Washer
#3 112524010
112524010
4 Seeger
#4 112610800
112610800
5 0 pcs in stock Bearing
#5 119216048
119216048
496,10 Kč
496,10 Kč
5 Bearing
#5 119216041
119216041
6 Pulley
#6 125601595
125601595
7 Spacer
#7 125160052
125160052
8 0 pcs in stock Wire
#8 382004618
382004618
532,40 Kč
532,40 Kč
9 Bushing
#9 125040635
125040635
10 Lever
#10 325318343
325318343
11 Spacer
#11 125160049
125160049
12 Bracket
#12 325785391
325785391
13 Screw
#13 112818690
112818690
14 0 pcs in stock Nut
#14 112154210
112154210
41,10 Kč
41,10 Kč
15 Screw
#15 112793102
112793102
16 Washer
#16 112540260
112540260
17 Washer
#17 125670007
125670007
18 Pulley
#18 125601604
125601604
19 Feather
#19 112139480
112139480
20 Bearing
#20 119216040
119216040
20 Bearing
#20 119216047
119216047
21 in stock Shaft
#21 125020804
125020804
871,20 Kč
871,20 Kč
22 Dust Cover Disc
#22 325160501
325160501
23 Seeger
#23 112609260
112609260
24 0 pcs in stock Flange Assy
#24 382207204
382207204
2 420,00 Kč
2 420,00 Kč
25 last 1 pc Spacer
#25 125160110
125160110
96,80 Kč
96,80 Kč
25 Spacer
#25 125160082
125160082
26 Screw
#26 112691115
112691115
27 Washer
#27 112524010
112524010
28 less than 5 pcs Pulley
#28 325601599
325601599
484,00 Kč
484,00 Kč
29 last 1 pc Shaft
#29 125020805
125020805
871,20 Kč
871,20 Kč
30 last 1 pc Flange Assy
#30 382207205
382207205
2 420,00 Kč
2 420,00 Kč
31 0 pcs in stock Nut
#31 112154210
112154210
41,10 Kč
41,10 Kč
32 Screw
#32 112818690
112818690
33 0 pcs in stock Nut
#33 112154210
112154210
41,10 Kč
41,10 Kč
34 Washer
#34 112523060
112523060
35 Stiffening
#35 325774617
325774617
36 last 1 pc Water Hose Connection
#36 325033086
325033086
50,80 Kč
50,80 Kč
37 last 1 pc Or Ring
#37 119035000
119035000
181,50 Kč
181,50 Kč
38 Washer
#38 112523060
112523060
39 Nut
#39 112293201
112293201
40 Nut
#40 112156602
112156602
41 Washer
#41 325670008
325670008
42 Equalizer Rod
#42 382000565
382000565
43 Nut
#43 112293201
112293201
44 Spacer
#44 125160072
125160072
45 Screw
#45 112692100
112692100
46 last 1 pc Washer
#46 112521350
112521350
48,40 Kč
48,40 Kč
47 Anti Scalp Wheel O 90
#47 182700005
182700005
48 Disc
#48 325160505
325160505
49 0 pcs in stock Screw
#49 112818700
112818700
65,30 Kč
65,30 Kč
50 in stock Key
#50 112139100
112139100
36,30 Kč
36,30 Kč
51 in stock Blade Hub
#51 125463200
125463200
242,00 Kč
242,00 Kč
52 in stock Right Blade, Winged
#52 182004362
182004362
726,00 Kč
726,00 Kč
52 less than 5 pcs Right Mulching Blade
#52 182004364
182004364
726,00 Kč
726,00 Kč
53 in stock Elastic Disc
#53 122160400
122160400
46,00 Kč
46,00 Kč
54 in stock Washer
#54 112523080
112523080
42,40 Kč
42,40 Kč
55 in stock Screw
#55 112735695
112735695
96,80 Kč
96,80 Kč
56 less than 5 pcs Screw
#56 112735694
112735694
54,40 Kč
54,40 Kč
57 in stock Left Blade, Winged
#57 182004363
182004363
726,00 Kč
726,00 Kč
57 less than 5 pcs Mulching Blade
#57 182004346
182004346
726,00 Kč
726,00 Kč
58 last 2 pcs Deflector
#58 325140111
325140111
242,00 Kč
242,00 Kč
59 0 pcs in stock Screw
#59 112791213
112791213
60,50 Kč
60,50 Kč
60 last 3 pcs Nut
#60 112154510
112154510
36,30 Kč
36,30 Kč
61 Washer
#61 112523040
112523040
62 Screw
#62 112793102
112793102
63 0 pcs in stock Cutting Plate Black
#63 382564118
382564118
12 705,00 Kč
12 705,00 Kč
64 last 1 pc Rear Deflector Suppot
#64 325785509
325785509
350,90 Kč
350,90 Kč
65 last 2 pcs Electromagnetic Clutch
#65 118399069
118399069
11 071,50 Kč
11 071,50 Kč
66 last 1 pc Washer
#66 112543000
112543000
43,60 Kč
43,60 Kč
67 last 1 pc Screw
#67 112737320
112737320
229,90 Kč
229,90 Kč
68 Spring
#68 125430277
125430277
69 Winged Blades
#69 1134922601
1134922601
70 Mulching Blades
#70 1134923401
1134923401
