Electrical Parts

Electrical Parts

Order no.: RL102H-12

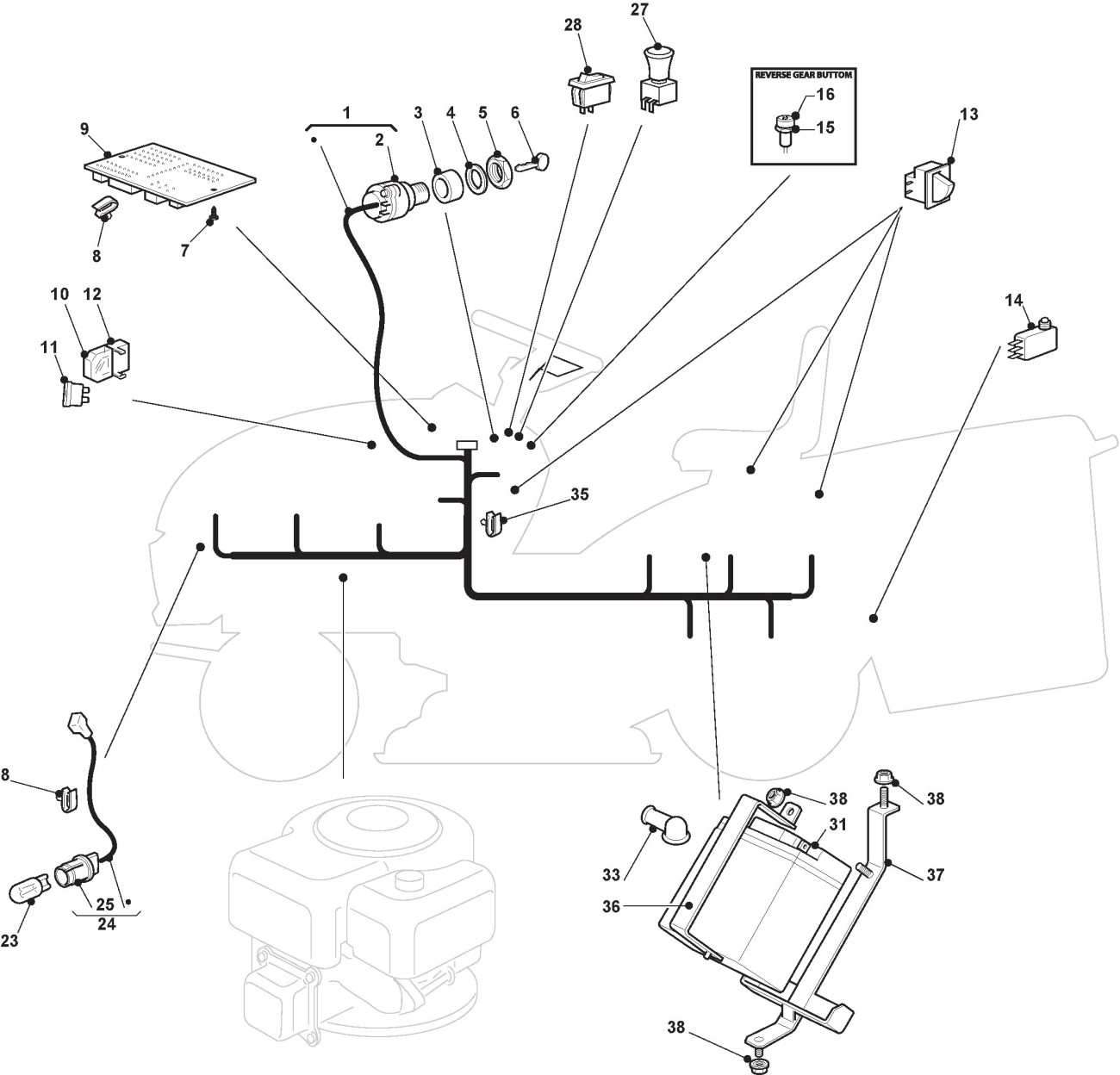

Technical drawing

Spare part list

Position	Name	Order no.	Price incl. VAT
1	Cables Ass.Y - ISO #1 182040201	182040201
2	Starting Switch #2 118450072	118450072
3	Spacer #3 118550136	118550136
4	Washer #4 118550135	118550135
5	last 2 pcs Ring Nut #5 118400862	118400862	145,20 Kč	145,20 Kč
6	in stock Starting Key #6 118210022	118210022	242,00 Kč	242,00 Kč
7	Screw #7 112727810	112727810
8	Fairlead #8 133320506	133320506
8	Fairlead #8 133320506	133320506
9	Electronic Card (1 Led) #9 125722443	125722443
10	Cover #10 133215000	133215000
11	Fuse 25 A #11 133340036	133340036
11	Fuse 10 A #11 133340040	133340040
12	Fuse Carrier #12 133500007	133500007
13	last 3 pcs Microswitch #13 119410622	119410622	169,40 Kč	169,40 Kč
14	last 2 pcs Microswitch #14 119410605	119410605	943,80 Kč	943,80 Kč
15	Screwed Ring #15 325256250	325256250
16	? 0 pcs in stock Button #16 325605003	325605003	1 070,80 Kč	1 070,80 Kč
23	last 2 pcs Lamp For Lights #23 118459100	118459100	48,40 Kč	48,40 Kč
24	Headlight Cable #24 182040073	182040073
25	Lamp Holder #25 133500030	133500030
27	Clutch Switch #27 118450074	118450074
27	? 0 pcs in stock Clutch Switch #27 118450073	118450073	399,30 Kč	399,30 Kč
28	last 3 pcs Headlight Switch #28 118450084	118450084	96,80 Kč	96,80 Kč
31	Battery #31 118120007	118120007
33	Protection #33 118564861	118564861
36	Clamp #36 327772099	327772099
37	Battery Support #37 382785191	382785191
38	? 0 pcs in stock Nut #38 112155000	112155000	42,40 Kč	42,40 Kč
