Steering 15”

Steering 15”

Order no.: RL102H-3

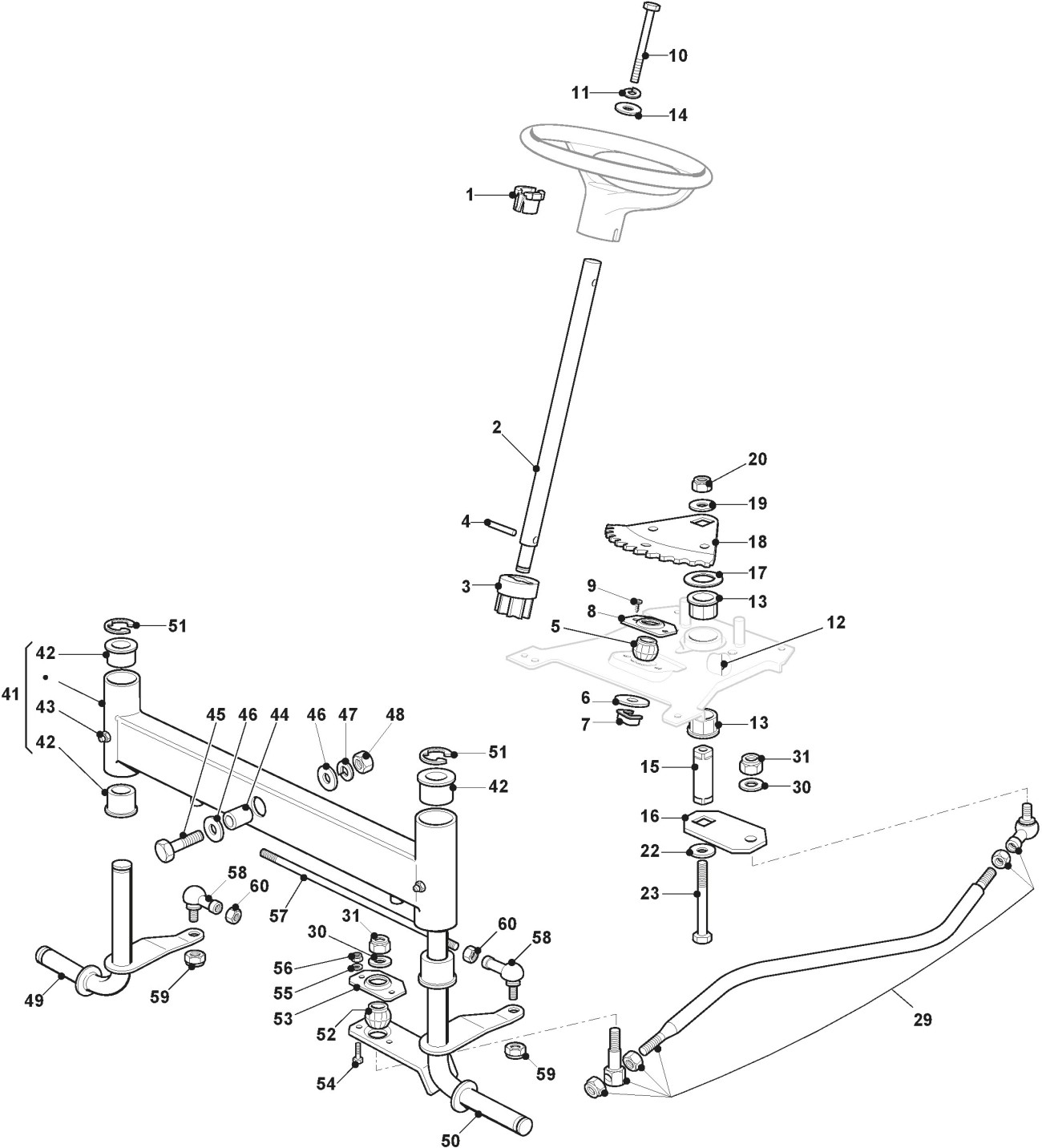

Technical drawing
Steering 15”
Spare part list
Position Name Order no. Price incl. VAT
1 Bushing
#1 325038004
325038004
2 Steering Column
#2 125520014
125520014
3 Pinion
#3 127570050
127570050
4 Dowel pin
#4 112622650
112622650
5 Joint
#5 325743000
325743000
6 Washer
#6 112521370
112521370
7 Plate
#7 112436030
112436030
8 Support
#8 325785213
325785213
9 Screw
#9 112729601
112729601
10 Screw
#10 112691800
112691800
11 Grower
#11 112583500
112583500
12 Grease Dispenser
#12 112379511
112379511
13 0 pcs in stock Bushing
#13 325040624
325040624
47,20 Kč
47,20 Kč
14 Washer
#14 112523060
112523060
15 Pin
#15 125510132
125510132
16 Lever
#16 325318281
325318281
17 Washer
#17 125670019
125670019
18 Steering Sector
#18 325735513
325735513
19 in stock Washer
#19 112523080
112523080
42,40 Kč
42,40 Kč
20 last 2 pcs Nut
#20 112155020
112155020
31,50 Kč
31,50 Kč
22 in stock Washer
#22 112523080
112523080
42,40 Kč
42,40 Kč
23 Screw
#23 112794950
112794950
29 Steering Rod
#29 382000610
382000610
30 Washer
#30 112523070
112523070
31 Nut
#31 112155010
112155010
41 Equalizer With Bush And Lubricator
#41 382034036
382034036
42 Bushing
#42 125034002
125034002
43 Grease Dispenser
#43 112379511
112379511
44 Spacer
#44 125160016
125160016
45 Screw
#45 112692695
112692695
46 Washer
#46 112523100
112523100
47 Grower
#47 112587100
112587100
48 Nut
#48 112295300
112295300
49 Right Stub Axle
#49 382230377
382230377
50 Left Stub Axle
#50 382230379
382230379
51 Benzing Ring
#51 112001000
112001000
52 Joint
#52 325743000
325743000
53 Support
#53 325785213
325785213
54 0 pcs in stock Screw
#54 112791213
112791213
60,50 Kč
60,50 Kč
55 Washer
#55 112521330
112521330
56 last 3 pcs Nut
#56 112154510
112154510
36,30 Kč
36,30 Kč
57 Tie Rod
#57 125840023
125840023
58 Joint
#58 122746609
122746609
59 Nut
#59 112156602
112156602
60 Nut
#60 112295200
112295200
