4590 VARI RL 102H
Optionals On Request
Optionals On Request
Optionals On Request
Order no.:
RL102H-13

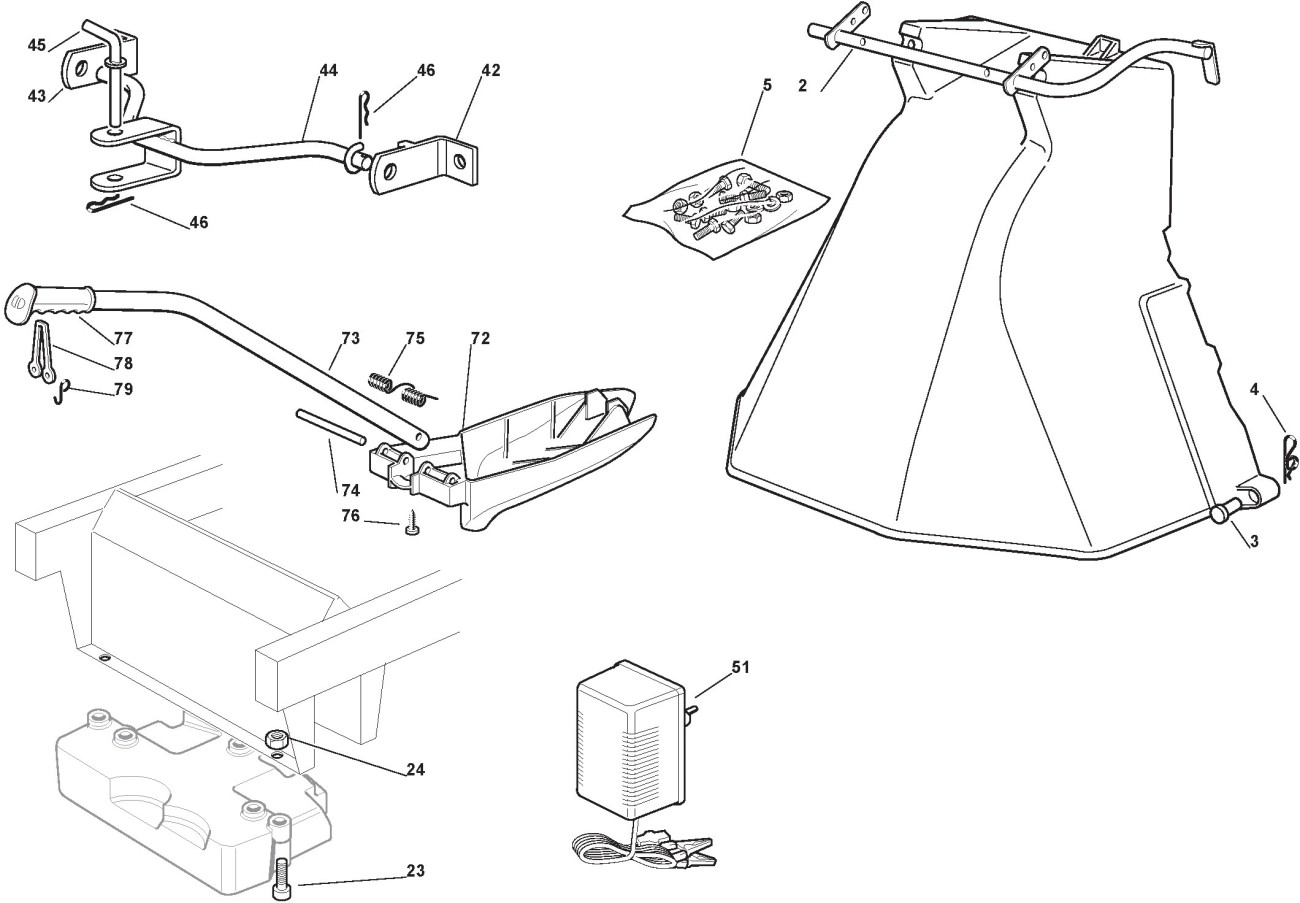

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
2
Stone Guard Tube
#2
382869035
382869035
Question
3
last 3 pcs
Pin
#3
125510022
125510022
84,70 Kč
Buy
84,70 Kč
4
Cotter Pin
#4
124487998
124487998
Question
5
Outfit, Screws
#5
382180062
382180062
Question
23
Screw
#23
112760520
112760520
Question
24
?
0 pcs in stock
Nut
#24
112155000
112155000
42,40 Kč
Buy
42,40 Kč
42
Bracket
#42
382735502
382735502
Question
43
Bracket
#43
325774213
325774213
Question
44
Rod
#44
382033117
382033117
Question
45
?
0 pcs in stock
Hitch Pin
#45
125510021
125510021
217,80 Kč
Buy
217,80 Kč
46
?
0 pcs in stock
Spring Pin
#46
124487999
124487999
36,30 Kč
Buy
36,30 Kč
51
Battery Charger 12V 1A - CE Plugg
#51
182180090
182180090
Replacement
72
Mulching Deflector
#72
125140091
125140091
Question
73
Handle
#73
325394005
325394005
Question
74
Pin
#74
125510074
125510074
Question
75
Spring
#75
125430240
125430240
Question
76
Screw
#76
112728680
112728680
Question
77
Handgrip
#77
325280000
325280000
Question
78
?
0 pcs in stock
Tie Rod
#78
125840011
125840011
243,20 Kč
Buy
243,20 Kč
79
Mulch.Kit Fixing Hook
#79
125253004
125253004
Question
