Transmission Unit

Transmission Unit

Order no.: RL102H-18

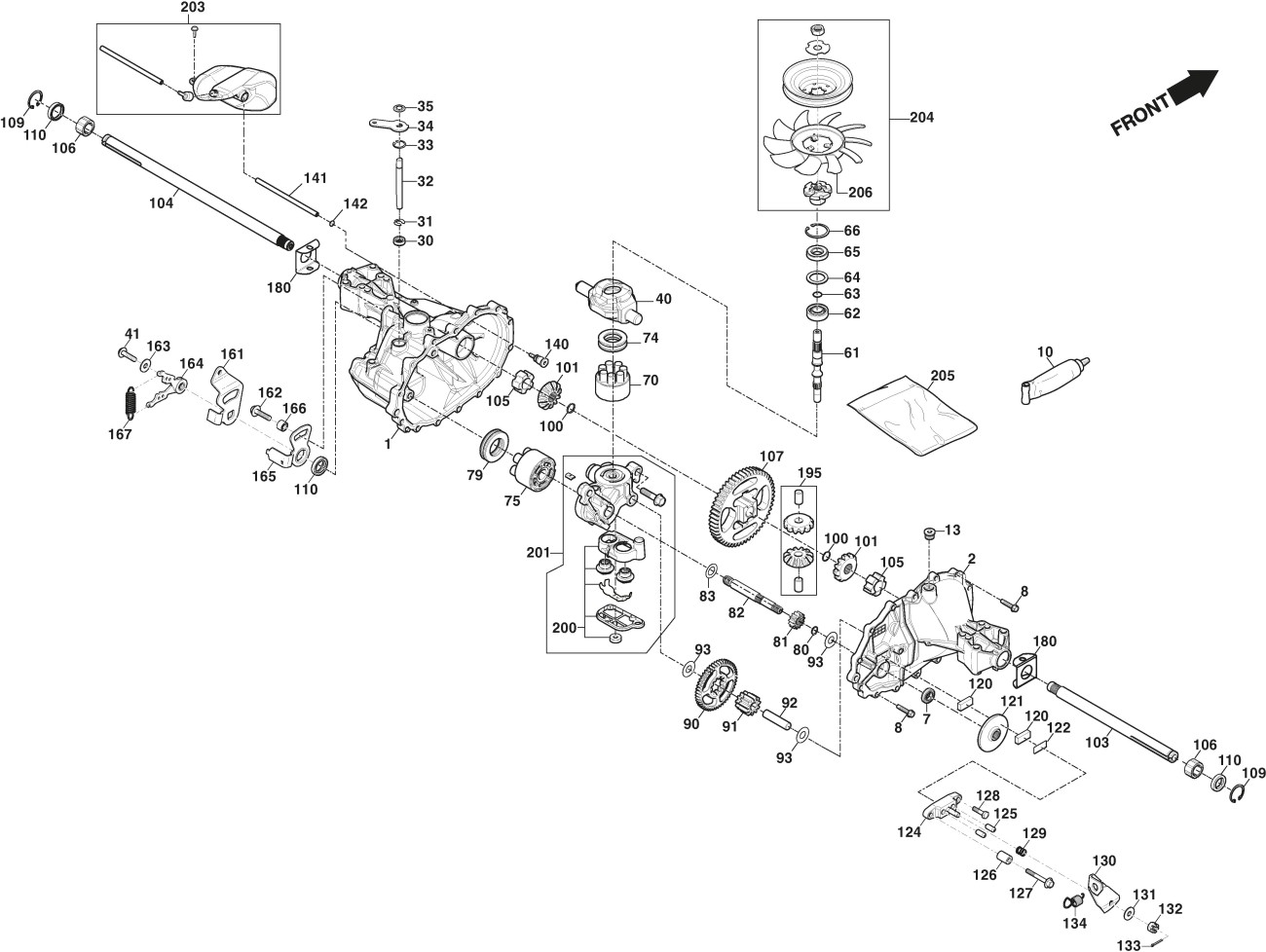

Technical drawing
Transmission Unit
Spare part list
Position Name Order no. Price incl. VAT
1 Main Housing
#1 118870120
118870120
2 Side Housing
#2 118870121
118870121
7 Seal
#7 118870111
118870111
8 Screw
#8 1139204201
1139204201
10 unavailable Sealant
#10 1139202201
1139202201
13 Plug
#13 1139201001
1139201001
30 Seal
#30 118870079
118870079
31 Retaining ring
#31 118870081
118870081
32 Rod
#32 1139220301
1139220301
33 Retaining ring
#33 118870080
118870080
34 Arm
#34 118870091
118870091
35 Retaining ring
#35 118870082
118870082
40 Swashplate
#40 118870090
118870090
41 Screw
#41 118870083
118870083
61 Shaft
#61 118870092
118870092
62 Ball Bearing
#62 1139200101
1139200101
63 Wire Retaining Ring
#63 1139200301
1139200301
64 Spacer
#64 1139200401
1139200401
65 Lip Seal
#65 1139200001
1139200001
66 Retaining Ring
#66 1139200201
1139200201
70 Pump Block Assy
#70 118870125
118870125
74 Bearing
#74 118870093
118870093
75 Cylinder Block
#75 1139206301
1139206301
79 Thrust Bearing
#79 1139202101
1139202101
80 Retaining ring
#80 118870070
118870070
81 Gear
#81 118870094
118870094
82 Shaft
#82 118870095
118870095
83 Washer
#83 118870096
118870096
90 Gear
#90 118870097
118870097
91 Gear
#91 118870098
118870098
92 Pin
#92 118870099
118870099
93 Washer
#93 1139201601
1139201601
100 Retaining ring
#100 118870072
118870072
101 Gear
#101 118870063
118870063
103 Shaft
#103 118870114
118870114
104 Shaft
#104 118870113
118870113
105 Bushing
#105 118870086
118870086
106 last 2 pcs Bushing
#106 118870085
118870085
217,80 Kč
217,80 Kč
107 Gear
#107 118870100
118870100
109 unavailable Retaining ring
#109 118870084
118870084
110 in stock Shaft
#110 1139220401
1139220401
290,40 Kč
290,40 Kč
120 Brake Pad
#120 118870066
118870066
121 Brake
#121 118870101
118870101
122 Brake Pad Support
#122 118870067
118870067
124 Brake Caliper
#124 118870119
118870119
125 Pin
#125 118870069
118870069
126 Spacer
#126 118870062
118870062
127 Screw
#127 118870077
118870077
128 Bolt
#128 118870071
118870071
129 Spring
#129 118870076
118870076
130 Brake Lever
#130 118870088
118870088
131 Flat washer
#131 1139201101
1139201101
132 Nut
#132 118870068
118870068
133 Pin
#133 118870065
118870065
134 Spring
#134 118870078
118870078
140 Fitting
#140 1139203801
1139203801
141 Tube
#141 118870102
118870102
142 O-Ring
#142 1139207501
1139207501
161 Arm
#161 118870103
118870103
162 Bolt
#162 1139202601
1139202601
163 Flat washer
#163 1139201101
1139201101
164 Arm Assy
#164 118870107
118870107
165 Arm
#165 118870108
118870108
166 Bushing
#166 118870104
118870104
167 Spring
#167 118870089
118870089
180 Plate
#180 118870112
118870112
195 Kit-Gears and Pins
#195 118870126
118870126
200 Kit-Filter
#200 118870123
118870123
201 Center Section Kit
#201 118870127
118870127
203 Kit-Expansion Tank
#203 118870122
118870122
204 Fan Kit
#204 118802723
118802723
205 Kit-Seal
#205 118870124
118870124
206 last 3 pcs Fan
#206 118870130
118870130
580,80 Kč
580,80 Kč
207 in stock OLEJ SYNTHETIC SAE 5W-40 1,4L
#207 1111924001
1111924001
363,00 Kč
363,00 Kč
