Cutting Plate Lifting
Cutting Plate Lifting
Cutting Plate Lifting
Order no.:
RL102H-6

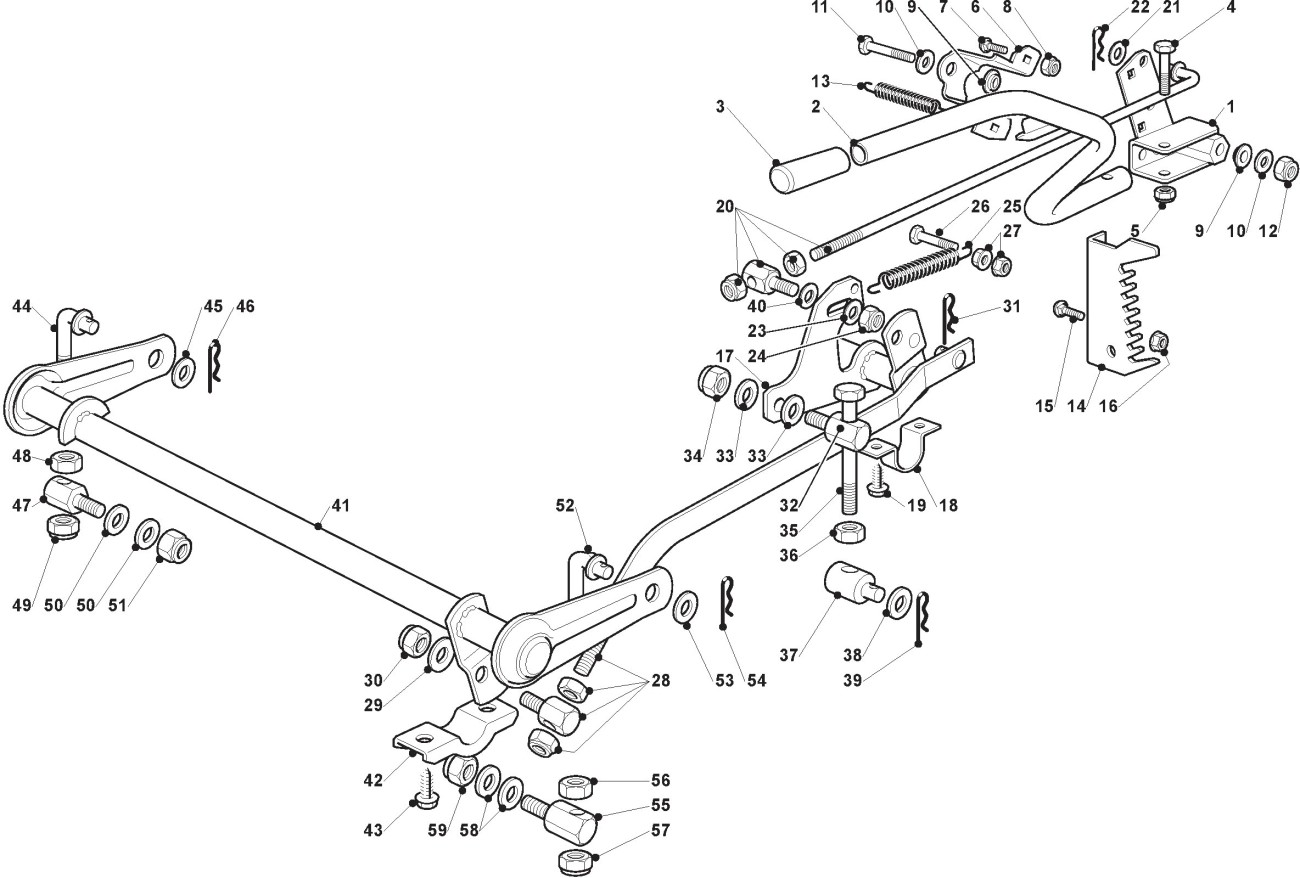

Technical drawing
Spare part list
Position
Name
Order no.
Price incl. VAT
1
Clamp
#1
382774249
382774249
Inquiry
2
Lever
#2
382318219
382318219
Inquiry
3
Knob
#3
325394535
325394535
Inquiry
4
Screw
#4
112674700
112674700
Inquiry
5
last 3 pcs
Nut
#5
112154510
112154510
36,30 Kč
Buy
36,30 Kč
6
Plate
#6
325650113
325650113
Inquiry
7
Screw
#7
112818690
112818690
Inquiry
8
?
0 pcs in stock
Nut
#8
112155000
112155000
42,40 Kč
Buy
42,40 Kč
9
Bushing
#9
122041980
122041980
Inquiry
10
Washer
#10
112523060
112523060
Inquiry
11
Screw
#11
112691600
112691600
Inquiry
12
?
0 pcs in stock
Nut
#12
112155000
112155000
42,40 Kč
Buy
42,40 Kč
13
Spring
#13
125430259
125430259
Inquiry
14
Sector
#14
325735511
325735511
Inquiry
15
Screw
#15
112818690
112818690
Inquiry
16
Nut
#16
112293201
112293201
Inquiry
17
Axle
#17
382000387
382000387
Inquiry
18
Plate
#18
325547041
325547041
Inquiry
19
Screw
#19
112731580
112731580
Inquiry
20
Rod
#20
382000618
382000618
Inquiry
21
Antifriction Washer
#21
325670011
325670011
Inquiry
22
Cotter Pin
#22
124487998
124487998
Inquiry
23
Washer
#23
112523040
112523040
Inquiry
24
?
0 pcs in stock
Nut
#24
112154210
112154210
41,10 Kč
Buy
41,10 Kč
25
Spring
#25
122446402
122446402
Inquiry
26
Screw
#26
112792410
112792410
Inquiry
27
?
0 pcs in stock
Nut
#27
112292102
112292102
48,40 Kč
Buy
48,40 Kč
28
Connecting Rod
#28
382000589
382000589
Inquiry
29
Washer
#29
325670008
325670008
Inquiry
30
Nut
#30
112156602
112156602
Inquiry
31
Cotter Pin
#31
124487998
124487998
Inquiry
32
Pin
#32
125510070
125510070
Inquiry
32
Pin
#32
125510070
125510070
Inquiry
33
Washer
#33
325670008
325670008
Inquiry
34
Nut
#34
112156602
112156602
Inquiry
35
Tie Rod
#35
125840031
125840031
Inquiry
36
Nut
#36
112295200
112295200
Inquiry
38
Washer
#38
112523090
112523090
Inquiry
39
Cotter Pin
#39
124487998
124487998
Inquiry
40
?
0 pcs in stock
Washer
#40
112521360
112521360
43,60 Kč
Buy
43,60 Kč
41
Axle
#41
382000587
382000587
Inquiry
42
?
0 pcs in stock
Plate
#42
327546015
327546015
43,60 Kč
Buy
43,60 Kč
43
Screw
#43
112731350
112731350
Inquiry
44
Tie Rod
#44
125840024
125840024
Inquiry
45
Washer
#45
325670008
325670008
Inquiry
46
Cotter Pin
#46
124487998
124487998
Inquiry
47
Pin
#47
125510098
125510098
Inquiry
48
Nut
#48
112295200
112295200
Inquiry
49
Nut
#49
112156602
112156602
Inquiry
50
Washer
#50
325670008
325670008
Inquiry
51
Nut
#51
112156602
112156602
Inquiry
52
Tie Rod
#52
125840025
125840025
Inquiry
53
Washer
#53
325670008
325670008
Inquiry
54
Cotter Pin
#54
124487998
124487998
Inquiry
55
Pin
#55
125510090
125510090
Inquiry
56
Nut
#56
112295200
112295200
Inquiry
57
Nut
#57
112156602
112156602
Inquiry
58
Washer
#58
325670008
325670008
Inquiry
59
Nut
#59
112156602
112156602
Inquiry
