3683 VARI 10-TON GAS FORCE

Archiv 3683 VARI 10-TON GAS FORCE

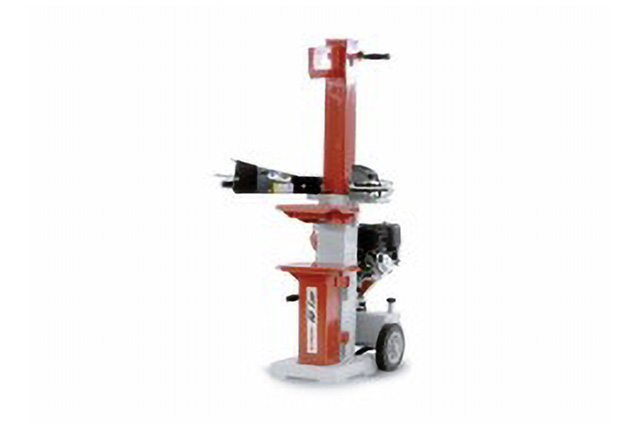

3683 10 TON GAS FORCE

Order no.: 3683ND

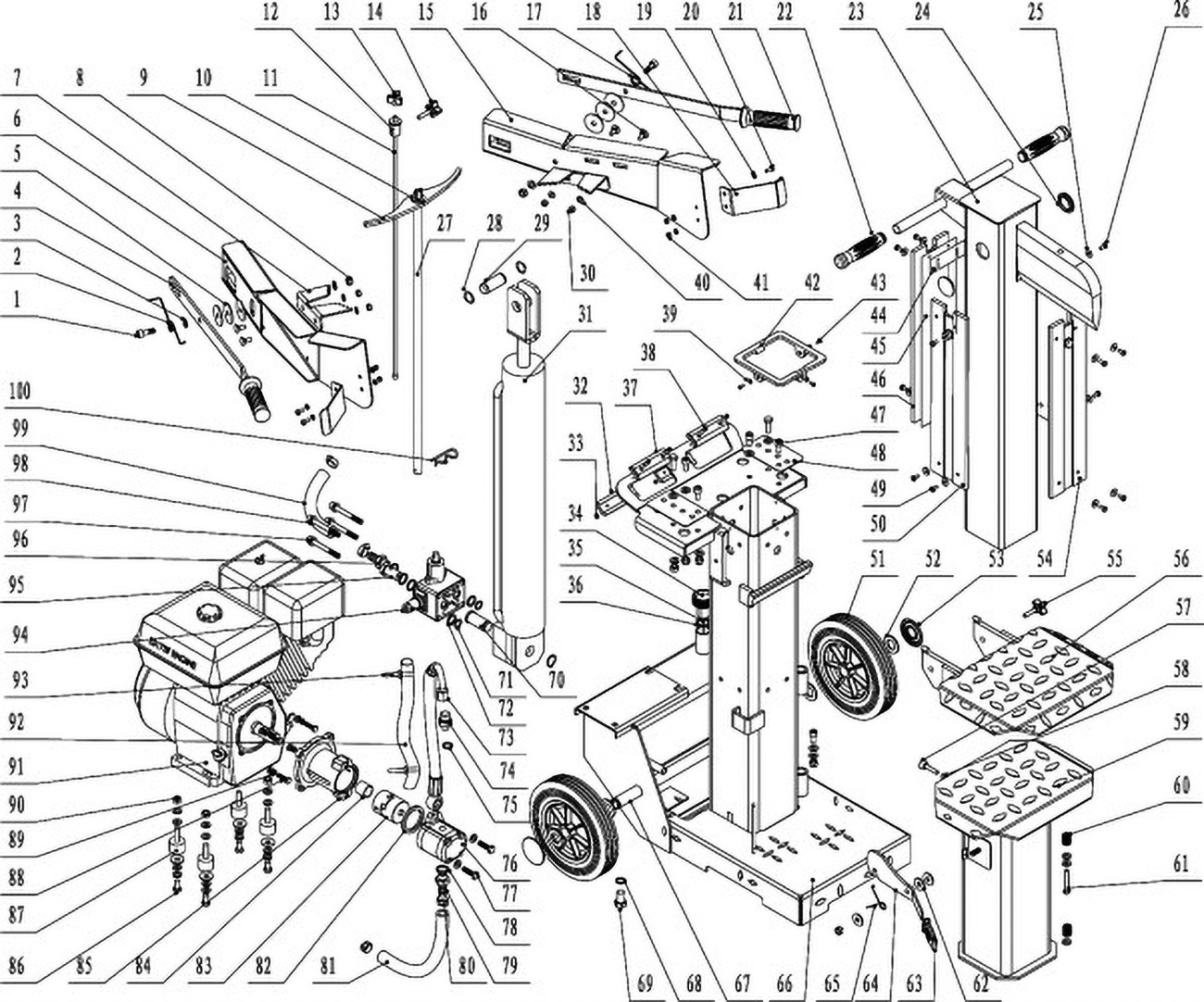

Technical drawing
3683 10 TON GAS FORCE
Spare part list
Position Name Order no. Price incl. VAT
1 Inner Hexangular Screw
#1 210001
210001
2 Left Spring
#2 210002
210002
3 Washer
#3 210003
210003
4 Handle K
#4 210004
210004
5 Seal-ring K
#5 210005
210005
6 Guard Assy Left
#6 210006
210006
7 Holding Rubber
#7 210007
210007
8 Locknut
#8 210008
210008
9 Lever
#9 210009
210009
10 Washer for guide rod
#10 210010
210010
11 Stroke Adjustment bar
#11 210011
210011
12 Clip
#12 210012
210012
13 Nut
#13 210013
210013
14 Star Knob
#14 210014
210014
15 Guard Assy Right
#15 210015
210015
16 Bolt
#16 210016
210016
17 Right Spring
#17 210017
210017
18 Guard Plate
#18 210018
210018
19 Washer
#19 210019
210019
20 Screw
#20 210020
210020
21 Handle Sleeve
#21 210021
210021
22 Handle Sleeve
#22 210022
210022
23 Frame
#23 210023
210023
24 Plug
#24 210024
210024
25 Big Washer
#25 210025
210025
26 Screw
#26 210026
210026
27 Guide Rod
#27 210027
210027
28 Circlip
#28 210028
210028
29 Pin
#29 210029
210029
30 Locknut
#30 210030
210030
31 last 2 pcs Cylinder
#31 210031
210031
4 961,00 Kč
4 961,00 Kč
32 Lower Handle Sleeve
#32 210032
210032
33 Nut
#33 210033
210033
34 Nipple
#34 210034
210034
35 Dipstick
#35 210035
210035
36 in stock Filter K
#36 WU-40-CYZZ
WU-40-CYZZ
272,20 Kč
272,20 Kč
36 O-ring
#36 210036
210036
37 Upper Handle Sleeve
#37 210037
210037
38 Screw
#38 210038
210038
39 Washer
#39 210039
210039
40 Washer
#40 210040
210040
41 Locknut
#41 210041
210041
42 in stock Square Tube
#42 210042
210042
48,40 Kč
48,40 Kč
43 Screw
#43 210043
210043
44 Gasket
#44 210044
210044
45 Plate
#45 210045
210045
46 in stock Rear Guide
#46 210046
210046
90,80 Kč
90,80 Kč
47 Inner Hexangular Screw
#47 210047
210047
48 Square Plate
#48 210048
210048
49 Bolt
#49 210049
210049
50 in stock Guide
#50 210050
210050
242,00 Kč
242,00 Kč
51 Wheel
#51 210051
210051
52 Washer
#52 210052
210052
53 Wheel Cover
#53 210053
210053
54 in stock Front guide
#54 210054
210054
338,80 Kč
338,80 Kč
55 Star handle
#55 210055
210055
56 Log Table
#56 210056
210056
57 Bolt
#57 210057
210057
58 Nut
#58 210058
210058
59 Swivel Table
#59 210059
210059
60 Pressure Spring
#60 210060
210060
61 Bolt
#61 210061
210061
62 Big Washer
#62 210062
210062
63 Lever Knob
#63 210063
210063
64 Handle
#64 210064
210064
65 Spring
#65 210065
210065
66 Frame Base
#66 210066
210066
67 Wheel shaft
#67 210067
210067
68 Washer
#68 210068
210068
69 Bolt
#69 210069
210069
70 Pin
#70 210070
210070
71 O-ring
#71 210071
210071
72 Circlip
#72 210072
210072
73 last 2 pcs High pressure Oil tube
#73 210073
210073
871,20 Kč
871,20 Kč
74 Nipple
#74 210074
210074
75 Washer
#75 210075
210075
76 last 2 pcs Pump
#76 210076
210076
2 420,00 Kč
2 420,00 Kč
77 Bolt
#77 210077
210077
78 Washer
#78 210078
210078
79 Nipple
#79 210079
210079
80 Hoop
#80 210080
210080
81 last 2 pcs Oil Tube
#81 210081
210081
151,20 Kč
151,20 Kč
82 last 1 pc Coupling
#82 210082
210082
36,30 Kč
36,30 Kč
83 last 2 pcs Lock ring
#83 210083
210083
665,50 Kč
665,50 Kč
84 Sleeve
#84 210084
210084
85 Connector
#85 210085
210085
86 Bolt
#86 210086
210086
87 in stock Vibrasion absorber
#87 210087
210087
242,00 Kč
242,00 Kč
88 Bolt
#88 210088
210088
89 Washer
#89 210089
210089
90 Nut
#90 210090
210090
91 last 1 pc Engine
#91 210091
210091
14 520,00 Kč
14 520,00 Kč
92 Tube Guard
#92 210092
210092
93 Nylon Thread
#93 210093
210093
94 last 2 pcs Valve
#94 210094
210094
1 815,00 Kč
1 815,00 Kč
95 Oil Plug
#95 210095
210095
96 Nipple
#96 210096
210096
97 Inner Hexangular Screw
#97 210097
210097
98 Washer
#98 210098
210098
99 last 2 pcs Oil Tube
#99 210099
210099
151,20 Kč
151,20 Kč
100 Clip
#100 210100
210100
