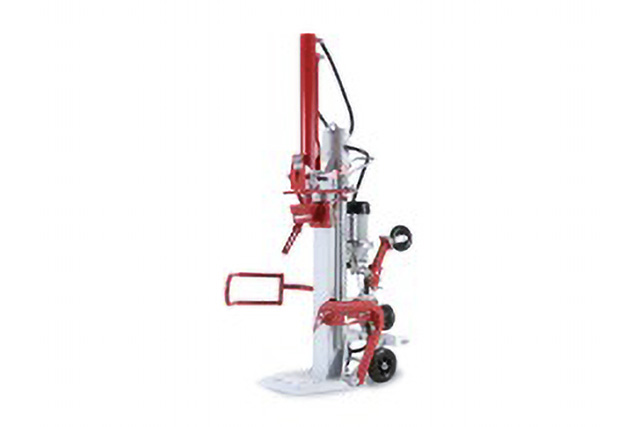

4525 VARI 22-TON 400V

Novinka 4525 VARI 22-TON 400V

4525 VARI 22-TON

Order no.: 4525ND

Documents to download
Format Name Size
JPG Katalogový list 1 055 kB

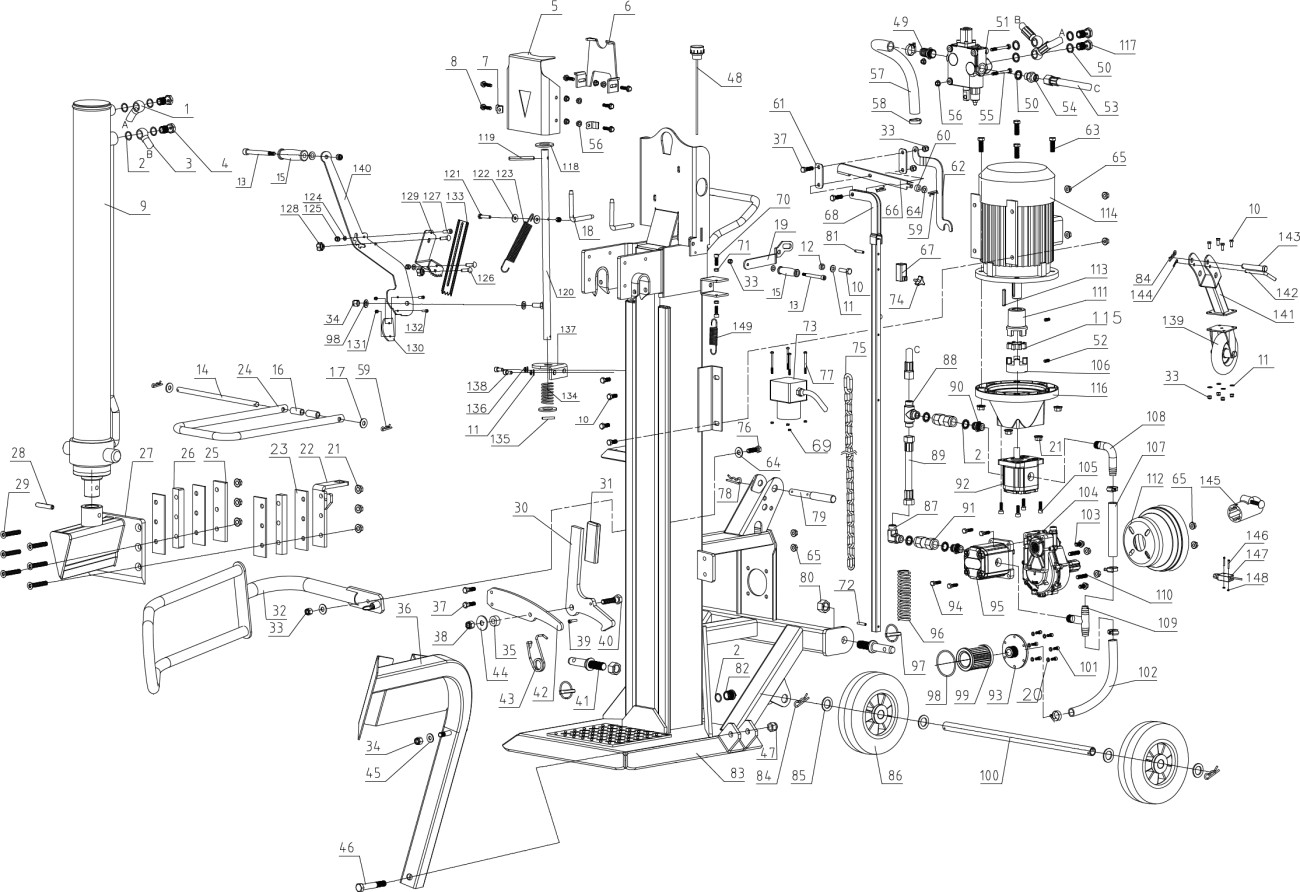

Technical drawing
4525 VARI 22-TON
Spare part list
Position Name Order no. Pieces Price incl. VAT
1 ? 0 pcs in stock Horní vysokotlaká hadice
#1 1 pc 216001
216001 1
508,20 Kč
508,20 Kč
2 in stock Těsnění 22
#2 9 pcs 216002
216002 9
4,20 Kč
4,20 Kč
3 ? 0 pcs in stock Spodní vysokotlaká hadice
#3 1 pc 216003
216003 1
508,20 Kč
508,20 Kč
4 last 3 pcs Hadicová spojka
#4 2 pcs 216004
216004 2
82,30 Kč
82,30 Kč
5 last 1 pc Horní kryt
#5 1 pc 218005
218005 1
290,40 Kč
290,40 Kč
6 Cylinder lock plate
#6 1 pc 222006
222006 1
7 less than 5 pcs Úchyt
#7 2 pcs 216007
216007 2
90,80 Kč
90,80 Kč
8 Bolt M8x25
#8 6 pcs 222008
222008 6
9 last 3 pcs Cylinder
#9 1 pc 222009
222009 1
12 100,00 Kč
12 100,00 Kč
9 in stock Sada tesnicích kroužků
#9 1 pc 222150
222150 1
847,00 Kč
847,00 Kč
10 Bolt M10x25
#10 9 pcs 222010
222010 9
11 Washer 10
#11 7 pcs 222011
222011 7
12 in stock Průchodka 2
#12 1 pc 216012
216012 1
21,80 Kč
21,80 Kč
13 in stock Šroub rukojeti
#13 2 pcs 216013
216013 2
36,30 Kč
36,30 Kč
14 less than 5 pcs Osa páky
#14 1 pc 218094
218094 1
78,60 Kč
78,60 Kč
15 in stock Rukojeť
#15 2 pcs 216015
216015 2
72,60 Kč
72,60 Kč
16 Váleček
#16 2 pcs 216016
216016 2
17 Flat washer 12
#17 2 pcs 222017
222017 2
18 Cylinder pin
#18 2 pcs 222018
222018 2
19 in stock Páka pravá
#19 1 pc 216083
216083 1
242,00 Kč
242,00 Kč
20 Flat washer 6
#20 6 pcs 222020
222020 6
21 Flange nut M12
#21 10 pcs 222021
222021 10
22 last 2 pcs Right plate
#22 1 pc 222022
222022 1
242,00 Kč
242,00 Kč
23 in stock Deska střední
#23 4 pcs 218023
218023 4
108,90 Kč
108,90 Kč
24 less than 5 pcs Zarážka
#24 1 pc 216024
216024 1
363,00 Kč
363,00 Kč
25 in stock Deska levá
#25 1 pc 218025
218025 1
193,60 Kč
193,60 Kč
26 in stock Svorník desek
#26 2 pcs 218026
218026 2
121,00 Kč
121,00 Kč
27 last 3 pcs Wedge weldment
#27 1 pc 222027
222027 1
2 178,00 Kč
2 178,00 Kč
28 last 2 pcs Pin 12x70
#28 1 pc 222028
222028 1
41,10 Kč
41,10 Kč
29 Screw M12x70
#29 6 pcs 222029
222029 6
30 last 2 pcs Západka
#30 1 pc 216061
216061 1
242,00 Kč
242,00 Kč
31 last 2 pcs Grip
#31 1 pc 222031
222031 1
60,50 Kč
60,50 Kč
32 Ochranné rameno levé
#32 1 pc 218030
218030 1
33 Locknut M10
#33 9 pcs 222033
222033 9
34 Locknut M12
#34 2 pcs 222034
222034 2
35 Pružina
#35 1 pc 216056
216056 1
36 Zdvihač
#36 1 pc 218034
218034 1
37 Bolt M10x35
#37 4 pcs 222037
222037 4
38 Nut M14
#38 1 pc 222038
222038 1
39 Screw M6x10
#39 1 pc 222039
222039 1
40 Screw
#40 1 pc 222040
222040 1
41 Pin
#41 2 pcs 222041
222041 2
42 last 2 pcs Zajišťovací deska
#42 1 pc 216053
216053 1
363,00 Kč
363,00 Kč
43 in stock Pružina háku
#43 1 pc 216058
216058 1
84,70 Kč
84,70 Kč
44 Washer 14
#44 1 pc 222044
222044 1
45 Big washer 12
#45 1 pc 222045
222045 1
46 Bolt M16x90
#46 1 pc 222046
222046 1
47 Matice M16
#47 1 pc 216037
216037 1
48 in stock Víčko
#48 1 pc 216066
216066 1
121,00 Kč
121,00 Kč
49 last 1 pc Hadicová spojka
#49 1 pc 216095
216095 1
121,00 Kč
121,00 Kč
50 Sealing kit 20
#50 5 pcs 222050
222050 5
51 in stock Ventil
#51 1 pc 216097
216097 1
1 815,00 Kč
1 815,00 Kč
52 Screw M6x15
#52 2 pcs 222052
222052 2
53 last 1 pc High pressure hose 2 D12
#53 1 pc 222053
222053 1
605,00 Kč
605,00 Kč
54 ? 0 pcs in stock Půlspojka
#54 1 pc 216100
216100 1
84,70 Kč
84,70 Kč
55 Bolt M8x65
#55 2 pcs 222055
222055 2
56 Nut M8
#56 8 pcs 222056
222056 8
57 last 2 pcs Oil return hose
#57 1 pc 222057
222057 1
139,20 Kč
139,20 Kč
58 Hose clamp
#58 6 pcs 222058
222058 6
59 Pin 3
#59 2 pcs 222059
222059 2
60 Zarážka
#60 1 pc 216088
216088 1
61 Valve connecting plate
#61 2 pcs 222061
222061 2
62 Držák
#62 1 pc 216103
216103 1
63 Bolt M12x45
#63 4 pcs 222063
222063 4
64 Big washer 10
#64 2 pcs 222064
222064 2
65 Nut M10
#65 13 pcs 222065
222065 13
66 ? 0 pcs in stock Deska
#66 1 pc 218019
218019 1
242,00 Kč
242,00 Kč
67 Pouzdro
#67 1 pc 216093
216093 1
68 in stock Táhlo
#68 1 pc 216082
216082 1
471,90 Kč
471,90 Kč
69 Nut M4
#69 4 pcs 222069
222069 4
70 Screw M8x25
#70 4 pcs 222070
222070 4
71 Nut M8
#71 4 pcs 222071
222071 4
72 Pin 6x45
#72 1 pc 222072
222072 1
73 in stock Spínač
#73 1 pc 216080
216080 1
1 573,00 Kč
1 573,00 Kč
74 Ovládací element
#74 1 pc 218092
218092 1
75 Řetěz
#75 1 pc 216079
216079 1
76 Bolt M10x40
#76 1 pc 222076
222076 1
77 Screw M4x60
#77 4 pcs 222077
222077 4
78 R-pin
#78 1 pc 222078
222078 1
79 Pin
#79 1 pc 222079
222079 1
80 Nut M22x1,5
#80 2 pcs 222080
222080 2
81 Pin 6x35
#81 1 pc 222081
222081 1
82 Screwed plug
#82 1 pc 222082
222082 1
83 Main frame
#83 1 pc 222083
222083 1
84 R-pin
#84 3 pcs 222084
222084 3
85 Washer 24
#85 4 pcs 222085
222085 4
86 in stock Wheel 10”
#86 2 pcs 222086
222086 2
363,00 Kč
363,00 Kč
87 High pressure elbow part
#87 1 pc 222087
222087 1
88 High pressure T-connector
#88 1 pc 222088
222088 1
89 last 2 pcs High pressure hose 1
#89 1 pc 222089
222089 1
363,00 Kč
363,00 Kč
90 in stock Nipple Zg 1/2-M22x1,5
#90 2 pcs 222090
222090 2
96,80 Kč
96,80 Kč
91 last 3 pcs One-way valve D=12
#91 2 pcs 222091
222091 2
423,50 Kč
423,50 Kč
92 in stock Gear pump 1
#92 1 pc 222092
222092 1
1 512,50 Kč
1 512,50 Kč
93 Flange plate
#93 1 pc 222093
222093 1
94 Bolt M8x30
#94 4 pcs 222094
222094 4
95 last 2 pcs Gear pump 2
#95 1 pc 222095
222095 1
1 512,50 Kč
1 512,50 Kč
96 last 1 pc Pružina
#96 1 pc 216050
216050 1
29,80 Kč
29,80 Kč
97 Elastic ring pin assy
#97 2 pcs 222097
222097 2
98 in stock O-ring 81x3,1
#98 1 pc 222098
222098 1
18,20 Kč
18,20 Kč
99 in stock Olejový filtr
#99 1 pc 216048
216048 1
242,00 Kč
242,00 Kč
100 Wheel axle
#100 1 pc 222100
222100 1
101 Screw M6x14
#101 6 pcs 222101
222101 6
102 last 2 pcs Suction hose 1
#102 1 pc 222102
222102 1
242,00 Kč
242,00 Kč
103 Bolt M10x20
#103 2 pcs 222103
222103 2
104 last 1 pc Accelerator
#104 1 pc 222104
222104 1
3 751,00 Kč
3 751,00 Kč
105 Screw M8x30
#105 4 pcs 222105
222105 4
106 in stock Spojka 1
#106 1 pc 216069
216069 1
496,10 Kč
496,10 Kč
107 last 2 pcs Suction hose 2
#107 1 pc 222107
222107 1
90,80 Kč
90,80 Kč
108 Low pressure elbow part
#108 1 pc 222108
222108 1
109 Low pressure T-connector
#109 1 pc 222109
222109 1
110 Set screw M10x40
#110 2 pcs 222110
222110 2
111 in stock Spojka 2
#111 1 pc 216076
216076 1
496,10 Kč
496,10 Kč
112 in stock Spline shaft sheath
#112 1 pc 222112
222112 1
296,40 Kč
296,40 Kč
113 Key 8x50
#113 1 pc 222113
222113 1
114 last 3 pcs Motor
#114 1 pc 222114
222114 1
12 826,00 Kč
12 826,00 Kč
115 in stock Jádro spojky
#115 1 pc 216075
216075 1
151,20 Kč
151,20 Kč
116 Pump bracket
#116 1 pc 222116
222116 1
117 last 2 pcs Ventilová spojka
#117 2 pcs 218106
218106 2
96,80 Kč
96,80 Kč
118 Flat washer 22
#118 2 pcs 222118
222118 2
119 Cylindrical pin 8x70
#119 1 pc 222119
222119 1
120 last 1 pc Nastavitelné táhlo svařenec
#120 1 pc 218115
218115 1
169,40 Kč
169,40 Kč
121 Bolt M8x45
#121 1 pc 222121
222121 1
122 Flat washer 8
#122 2 pcs 222122
222122 2
123 in stock Pružina
#123 1 pc 218118
218118 1
60,50 Kč
60,50 Kč
124 Washer 8
#124 4 pcs 222124
222124 4
125 Locknut M8
#125 3 pcs 222125
222125 3
126 Bolt 8x20
#126 2 pcs 222126
222126 2
127 Bolt 8x20
#127 2 pcs 222127
222127 2
128 in stock Adjusting knob M8
#128 2 pcs 222128
222128 2
30,20 Kč
30,20 Kč
129 last 1 pc Držák špalku
#129 1 pc 218124
218124 1
121,00 Kč
121,00 Kč
130 in stock Třecí podložka
#130 1 pc 218125
218125 1
12,10 Kč
12,10 Kč
131 Locknut M5
#131 2 pcs 222131
222131 2
132 Bolt M5x16
#132 2 pcs 222132
222132 2
133 last 1 pc Dlouhý držák špalku
#133 1 pc 218128
218128 1
60,50 Kč
60,50 Kč
134 in stock Reset spring
#134 1 pc 222134
222134 1
36,30 Kč
36,30 Kč
135 Cylindrical pin 5x35
#135 1 pc 222135
222135 1
136 Spring washer 10
#136 2 pcs 222136
222136 2
137 Opěrná deska
#137 1 pc 218132
218132 1
138 Bolt M10x20
#138 2 pcs 222138
222138 2
139 in stock Opěrné kolo sestava
#139 1 pc 218112
218112 1
726,00 Kč
726,00 Kč
140 in stock Páka levá
#140 1 pc 218017
218017 1
205,70 Kč
205,70 Kč
141 Support arm
#141 1 pc 222141
222141 1
142 Pin 12
#142 1 pc 222142
222142 1
143 Rotating shaft
#143 1 pc 222143
222143 1
144 R-pin
#144 1 pc 222144
222144 1
145 Shaft guard
#145 1 pc 222145
222145 1
146 Screw 3x25
#146 2 pcs 222146
222146 2
147 less than 5 pcs Microswitch
#147 1 pc 222147
222147 1
60,50 Kč
60,50 Kč
148 Nut M3
#148 2 pcs 222148
222148 2
149 in stock Spring
#149 1 pc 222149
222149 1
60,50 Kč
60,50 Kč
