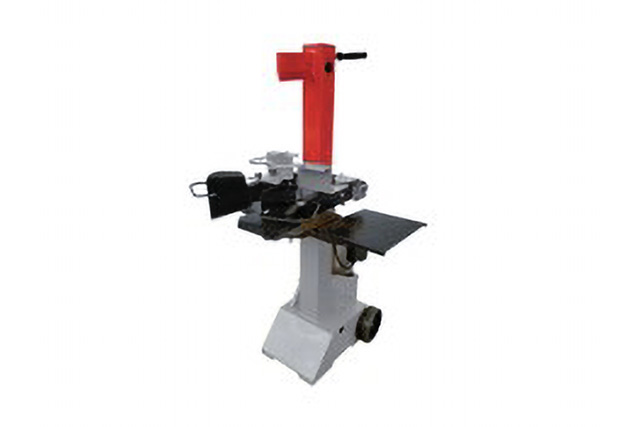

4513 VARI 8-TON 230V

Novinka 4513 VARI 8-TON 230V

4513 VARI 8TON 230V

Order no.: 4513ND

Documents to download
Format Name Size
PNG Katalogový list 534 kB

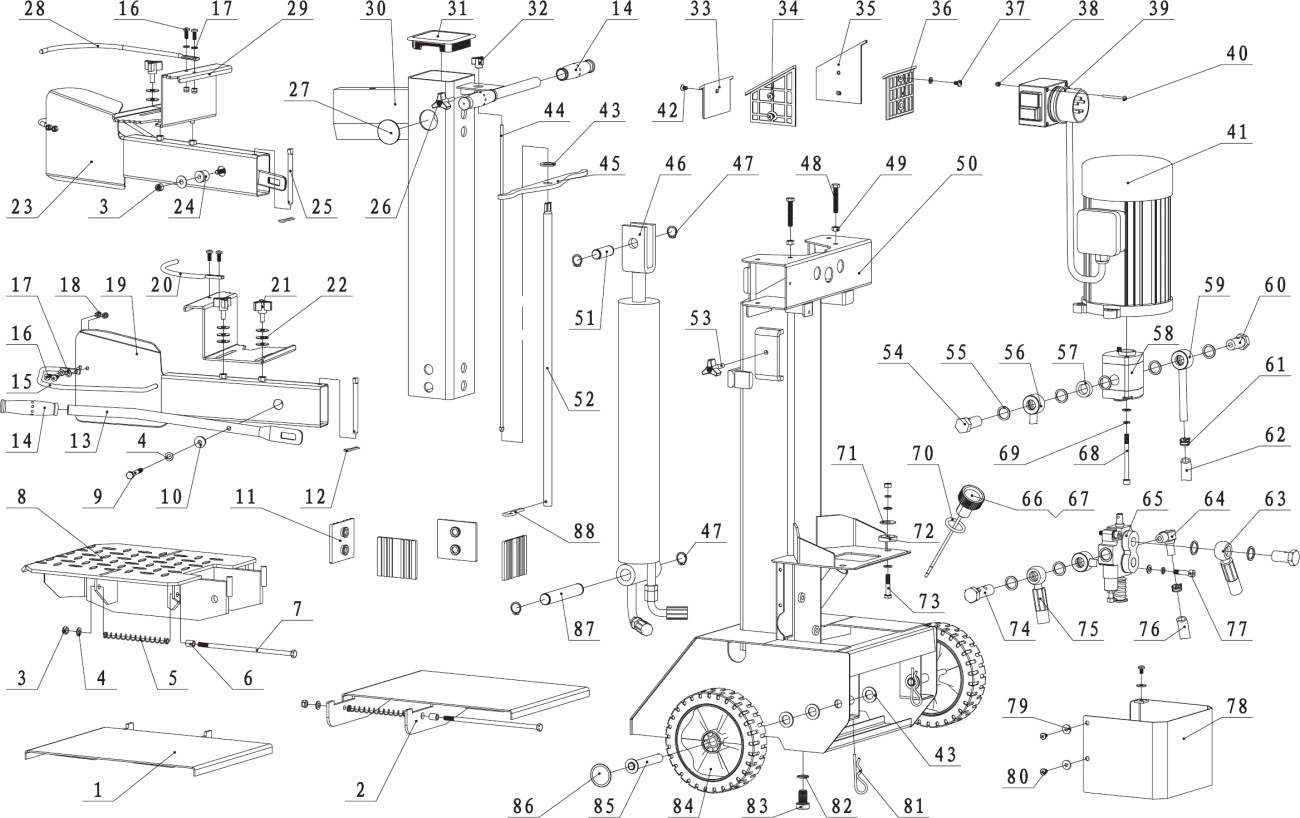

Technical drawing
4513 VARI 8TON 230V
Spare part list
Position Name Order no. Pieces Price incl. VAT
1 last 2 pcs Side log support 2
#1 1 pc 208001
208001 1
471,90 Kč
471,90 Kč
2 last 1 pc Side log support 1
#2 1 pc 208002
208002 1
471,90 Kč
471,90 Kč
3 Locknut M8
#3 4 pcs 208003
208003 4
4 Washer 8
#4 8 pcs 208004
208004 8
5 in stock Spring
#5 2 pcs 208005
208005 2
21,80 Kč
21,80 Kč
6 in stock Bush
#6 2 pcs 208006
208006 2
24,20 Kč
24,20 Kč
7 in stock Bolt 8,8 M8x210
#7 2 pcs 208007
208007 2
30,20 Kč
30,20 Kč
8 ? 0 pcs in stock Log support C1
#8 1 pc 208008
208008 1
1 452,00 Kč
1 452,00 Kč
9 Bolt 8,8 M8x60
#9 2 pcs 208009
208009 2
10 in stock Bush 2
#10 2 pcs 208010
208010 2
6,00 Kč
6,00 Kč
11 in stock Lining plate
#11 4 pcs 208011
208011 4
54,40 Kč
54,40 Kč
12 Clip 2,5
#12 2 pcs 208012
208012 2
13 in stock Handle C1
#13 2 pcs 208013
208013 2
181,50 Kč
181,50 Kč
14 in stock Handgrip
#14 4 pcs 208014
208014 4
42,40 Kč
42,40 Kč
15 in stock Guard ring C1
#15 2 pcs 208015
208015 2
121,00 Kč
121,00 Kč
16 Screw M6x16
#16 8 pcs 208016
208016 8
17 Washer 6
#17 6 pcs 208017
208017 6
18 Locknut M6
#18 8 pcs 208018
208018 8
19 ? 0 pcs in stock Right armguard C1
#19 1 pc 208019
208019 1
338,80 Kč
338,80 Kč
20 in stock Retainer 1
#20 1 pc 208020
208020 1
121,00 Kč
121,00 Kč
21 in stock Star knob
#21 4 pcs 208021
208021 4
24,20 Kč
24,20 Kč
22 Big washer 8
#22 19 pcs 208022
208022 19
23 last 1 pc Left armguard C1
#23 1 pc 208023
208023 1
338,80 Kč
338,80 Kč
24 less than 5 pcs Bush 1
#24 2 pcs 208024
208024 2
12,10 Kč
12,10 Kč
25 in stock Pin C1
#25 2 pcs 208025
208025 2
24,20 Kč
24,20 Kč
26 in stock Star knob M6
#26 1 pc 208026
208026 1
30,20 Kč
30,20 Kč
27 in stock Cap
#27 2 pcs 208027
208027 2
6,00 Kč
6,00 Kč
28 in stock Retainer 2
#28 1 pc 208028
208028 1
121,00 Kč
121,00 Kč
29 in stock Clamp
#29 2 pcs 208029
208029 2
302,50 Kč
302,50 Kč
30 in stock Splitting pipe G5
#30 1 pc 208030
208030 1
1 815,00 Kč
1 815,00 Kč
31 last 1 pc Square cap
#31 1 pc 208031
208031 1
24,20 Kč
24,20 Kč
32 in stock Star knob M5 (black)
#32 1 pc 208032
208032 1
24,20 Kč
24,20 Kč
33 in stock Podlozka vymezovaci k < 33 a 36 >
#33 2 pcs 208094
208094 2
9,70 Kč
9,70 Kč
33 in stock Upper lining plate 2-C
#33 1 pc 208033
208033 1
54,40 Kč
54,40 Kč
34 in stock Upper lining plate 4
#34 1 pc 208034
208034 1
54,40 Kč
54,40 Kč
34 in stock Podlozka vymezovaci
#34 2 pcs 208093
208093 2
12,10 Kč
12,10 Kč
35 in stock Upper lining plate 3
#35 1 pc 208035
208035 1
54,40 Kč
54,40 Kč
36 in stock Upper lining plate 1
#36 1 pc 208036
208036 1
54,40 Kč
54,40 Kč
37 Screw M6x8
#37 1 pc 208037
208037 1
38 Locknut M4 (motor 230 V)
#38 2 pcs 208038A
208038A 2
39 in stock Switch (motor 230 V)
#39 1 pc 208039A
208039A 1
1 573,00 Kč
1 573,00 Kč
40 Screw M4x60 (motor 230 V)
#40 2 pcs 208040A
208040A 2
41 in stock Motor 230 V
#41 1 pc 208041A
208041A 1
6 352,50 Kč
6 352,50 Kč
41 in stock Kondenzator rozbehovy 60mF
#41 1 pc 201554
201554 1
392,00 Kč
392,00 Kč
42 Screw M6x10
#42 1 pc 208042
208042 1
43 Washer 16
#43 7 pcs 208043
208043 7
44 last 1 pc Pull rod G5
#44 1 pc 208044
208044 1
36,30 Kč
36,30 Kč
45 last 1 pc Lever C1
#45 1 pc 208045
208045 1
145,20 Kč
145,20 Kč
46 in stock Cylinder C1
#46 1 pc 208046
208046 1
3 146,00 Kč
3 146,00 Kč
46 in stock SADA (SEDA) TESNENI K VALCI – 8T
#46 1 pc 208089
208089 1
786,50 Kč
786,50 Kč
46 in stock SADA (ZELENA) TESNENI K VALCI – 8T
#46 1 pc 208090
208090 1
786,50 Kč
786,50 Kč
46 in stock SADA
#46 1 pc 208092
208092 1
786,50 Kč
786,50 Kč
47 Circlip 22
#47 4 pcs 208047
208047 4
48 Bolt M8x50
#48 2 pcs 208048
208048 2
49 Nut M8
#49 5 pcs 208049
208049 5
50 Main frame C1
#50 1 pc 208050
208050 1
51 in stock Short shaft D
#51 1 pc 208051
208051 1
72,60 Kč
72,60 Kč
52 in stock Tube C1
#52 1 pc 208052
208052 1
145,20 Kč
145,20 Kč
53 in stock Star knob (black)
#53 1 pc 208053
208053 1
24,20 Kč
24,20 Kč
54 in stock Oil plug A1
#54 1 pc 208054
208054 1
60,50 Kč
60,50 Kč
55 in stock Podložka 20
#55 10 pcs 201775
201775 10
36,30 Kč
36,30 Kč
56 Oil hose C1
#56 1 pc 208056
208056 1
57 in stock Collar
#57 1 pc 208057
208057 1
48,40 Kč
48,40 Kč
58 in stock Gear pump C1
#58 1 pc 208058A
208058A 1
1 573,00 Kč
1 573,00 Kč
59 Nozzle C1
#59 1 pc 208059
208059 1
60 last 1 pc Oil plug A2
#60 2 pcs 208060
208060 2
54,40 Kč
54,40 Kč
61 Hose clamp 18-23 (24)
#61 4 pcs 208061
208061 4
62 last 3 pcs Oil hose 13
#62 1 pc 208062
208062 1
242,00 Kč
242,00 Kč
63 last 3 pcs Oil hose C1
#63 1 pc 208063
208063 1
363,00 Kč
363,00 Kč
64 in stock Nozzle A
#64 1 pc 208064
208064 1
96,80 Kč
96,80 Kč
65 in stock CCA valve
#65 1 pc 208065
208065 1
907,50 Kč
907,50 Kč
66 last 2 pcs Oil cap K
#66 1 pc 208066
208066 1
36,30 Kč
36,30 Kč
67 in stock Oil dipstick KG
#67 1 pc 208067
208067 1
30,20 Kč
30,20 Kč
68 Screw M8x90
#68 2 pcs 208068
208068 2
69 Spring Washer 8
#69 7 pcs 208069
208069 7
70 ? 0 pcs in stock O-ring 25x2,65
#70 1 pc 208070
208070 1
12,10 Kč
12,10 Kč
71 Big washer 10
#71 3 pcs 208071
208071 3
72 Motor support
#72 3 pcs 208072
208072 3
73 Bolt 8,8 M8x45
#73 3 pcs 208073
208073 3
74 in stock Oil plug A6
#74 1 pc 208074
208074 1
60,50 Kč
60,50 Kč
75 last 2 pcs Oil hose C1
#75 1 pc 208075
208075 1
423,50 Kč
423,50 Kč
76 Oil hose 13
#76 1 pc 208076
208076 1
77 Screw M8x35
#77 2 pcs 208077
208077 2
78 last 2 pcs Shield C1
#78 1 pc 208078
208078 1
363,00 Kč
363,00 Kč
79 Big washer 6
#79 3 pcs 208079
208079 3
80 Screw M6x10
#80 5 pcs 208080
208080 5
81 Clip 3
#81 2 pcs 208081
208081 2
82 Washer groupware 16
#82 1 pc 208082
208082 1
83 Bolt M16x25
#83 1 pc 208083
208083 1
84 in stock Wheel
#84 2 pcs 208084
208084 2
242,00 Kč
242,00 Kč
85 Wheel axle C1
#85 2 pcs 208085
208085 2
86 ? 0 pcs in stock Wheel cap
#86 2 pcs 208086
208086 2
6,00 Kč
6,00 Kč
87 last 3 pcs Long shaft A4
#87 1 pc 208087
208087 1
90,80 Kč
90,80 Kč
88 Clip 4
#88 1 pc 208088
208088 1
