Order no.: 3686_1

Documents to download
Format Name Size
JPG Rozkres ve vysokém rozlišení 1 049 kB

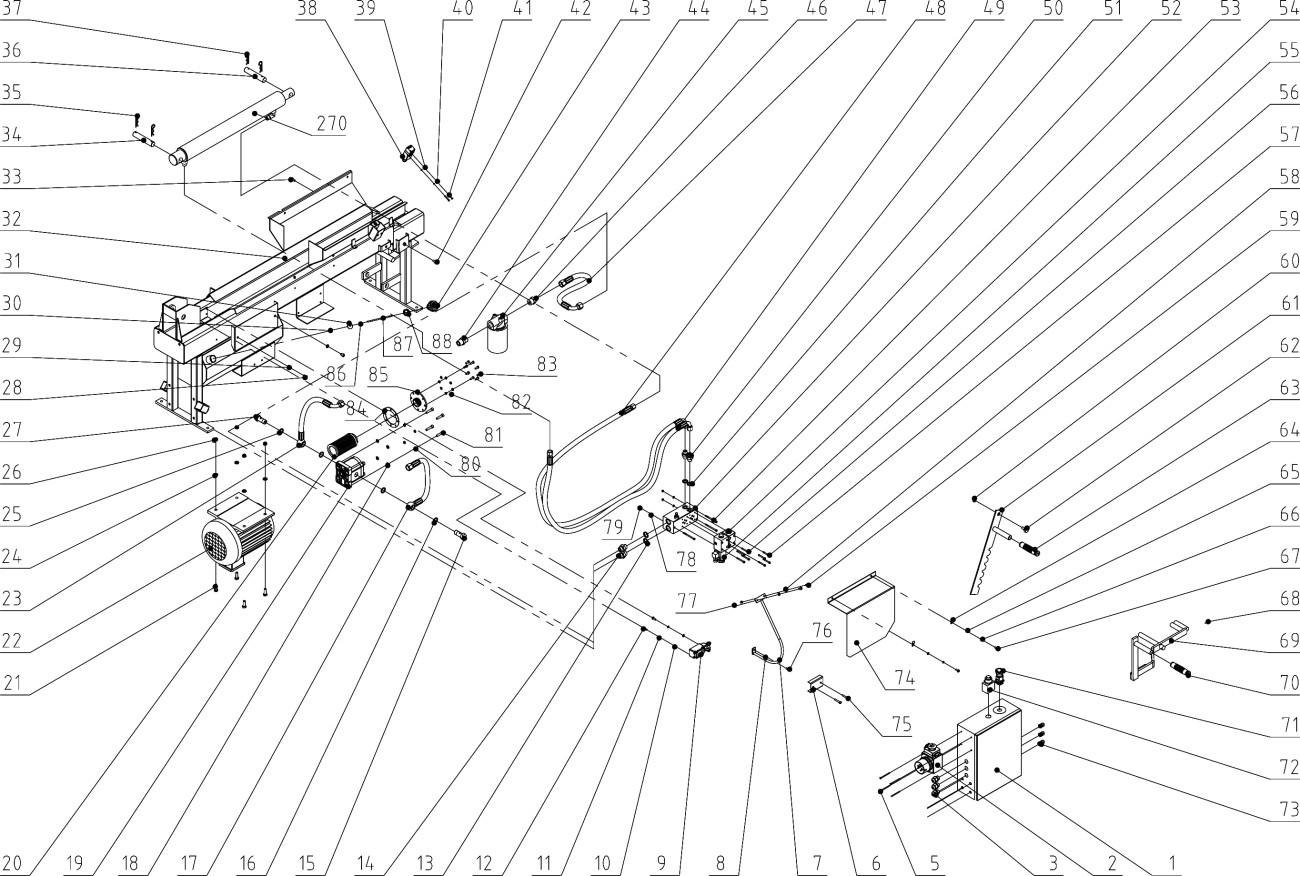

Technical drawing
3686_1
Spare part list
Position Name Order no. Price incl. VAT
1 Electric Box
#1 230001
230001
2 last 1 pc Motor Switch
#2 230002
230002
1 815,00 Kč
1 815,00 Kč
3 Strain Clamp
#3 230003
230003
5 Screw M4x60
#5 230005
230005
6 Pipe Clamp
#6 230006
230006
7 Bent Bar
#7 230007
230007
8 Plain Washer 6
#8 230008
230008
9 0 pcs in stock Limit Switch For Cylinder Backstroke
#9 230009
230009
847,00 Kč
847,00 Kč
10 Plain Washer 6
#10 230010
230010
11 Elastic Washer 6
#11 230011
230011
12 Screw M6x16
#12 230012
230012
13 Washer Groupware 22
#13 230013
230013
14 Valve Joint 2
#14 230014
230014
15 Short Oil Plug M1
#15 230015
230015
16 Washer Groupware 20
#16 230016
230016
17 Oil Suction Pipe D3
#17 230017
230017
18 Plain Washer 8
#18 230018
230018
19 last 2 pcs Gear Pump D3
#19 230019
230019
2 480,50 Kč
2 480,50 Kč
20 in stock Oil suction Filter
#20 230020
230020
532,40 Kč
532,40 Kč
21 Bolt M10x30
#21 230021
230021
22 last 2 pcs Pump Motor
#22 230022
230022
5 082,00 Kč
5 082,00 Kč
23 Outlet Pipe D3
#23 230023
230023
24 Plain Washer 10
#24 230024
230024
25 Washer Groupware 20
#25 230025
230025
26 Locknut M10
#26 230026
230026
27 Short Oil Plug M1
#27 230027
230027
28 Screw M8x10
#28 230028
230028
29 Plain Washer 8
#29 230029
230029
30 Nut M5
#30 230030
230030
31 Oil Seal
#31 230031
230031
32 Main Body
#32 230032
230032
33 Bolt M8x16
#33 230033
230033
34 Clevis Pin
#34 230034
230034
35 Clip 3
#35 230035
230035
36 Clevis Pin
#36 230036
230036
37 Clip 3
#37 230037
230037
38 in stock Limit Switch For Steel Mesh
#38 230038
230038
145,20 Kč
145,20 Kč
39 Plain Washer 4
#39 230039
230039
40 Elastic Washer 4
#40 230040
230040
41 Screw M4x30
#41 230041
230041
42 Bolt M8x16
#42 230042
230042
43 Oil Plug Z
#43 230043
230043
44 Oil Outlet
#44 230044
230044
45 in stock Oil Return Filter SP06-25
#45 230045
230045
1 089,00 Kč
1 089,00 Kč
46 Oil Inlet
#46 230046
230046
47 Oil Return Pipe D3
#47 230047
230047
48 Cylinder Retract Oil Pipe D3
#48 230048
230048
49 Cylinder Forward Oil Pipe D3
#49 230049
230049
50 Valve Joint 1
#50 230050
230050
51 Washer Groupware 18
#51 230051
230051
52 last 1 pc Valve Body D3
#52 230052
230052
653,40 Kč
653,40 Kč
53 Screw M5x70
#53 230053
230053
54 last 3 pcs Automatic Shuttle Valve
#54 230054
230054
5 445,00 Kč
5 445,00 Kč
55 last 3 pcs Electromagnetic Reversing Valve
#55 230055
230055
2 904,00 Kč
2 904,00 Kč
56 Screw M5x45
#56 230056
230056
57 Screw M5x40
#57 230057
230057
58 Plain Washer 6
#58 230058
230058
59 Screw M6x16
#59 230059
230059
60 Locknut M10
#60 230060
230060
61 Regulator 2
#61 230061
230061
62 Adjusting Bolt
#62 230062
230062
63 Handle Sleeve
#63 230063
230063
64 Tablet
#64 230064
230064
65 Plain Washer 6
#65 230065
230065
66 Elastic Washer 6
#66 230066
230066
67 Screw M6x16
#67 230067
230067
68 Cotter Pin 2.5X25
#68 230068
230068
69 Regulator 1
#69 230069
230069
70 Handle Sleeve
#70 230070
230070
71 last 2 pcs Emergency Stop Button
#71 230071
230071
423,50 Kč
423,50 Kč
72 in stock Cylinder Control Switch
#72 230072
230072
242,00 Kč
242,00 Kč
73 Strain Clamp M12x1.5
#73 230073
230073
74 Valve Guard
#74 230074
230074
75 Bolt M6x35
#75 230075
230075
76 Screw M6x16
#76 230076
230076
77 Locknut M6
#77 230077
230077
78 Plain Washer 5
#78 230078
230078
79 Locknut M5
#79 230079
230079
80 Elastic Washer 8
#80 230080
230080
81 Screw M8x35
#81 230081
230081
82 Plain Washer 6
#82 230082
230082
83 Bolt M6x16
#83 230083
230083
84 Gasket
#84 230084
230084
85 Oil suction Filter Joint
#85 230085
230085
86 Plain Washer 5
#86 230086
230086
87 Dipstick
#87 230087
230087
88 O-Ring 25x2.65
#88 230088
