  4. 3686 VARIMATIC 300
  5. 3686_4

3686_4

3686_4

Order no.: 3686_4

Documents to download
Format Name Size
JPG Rozkres ve vysokém rozlišení 748 kB

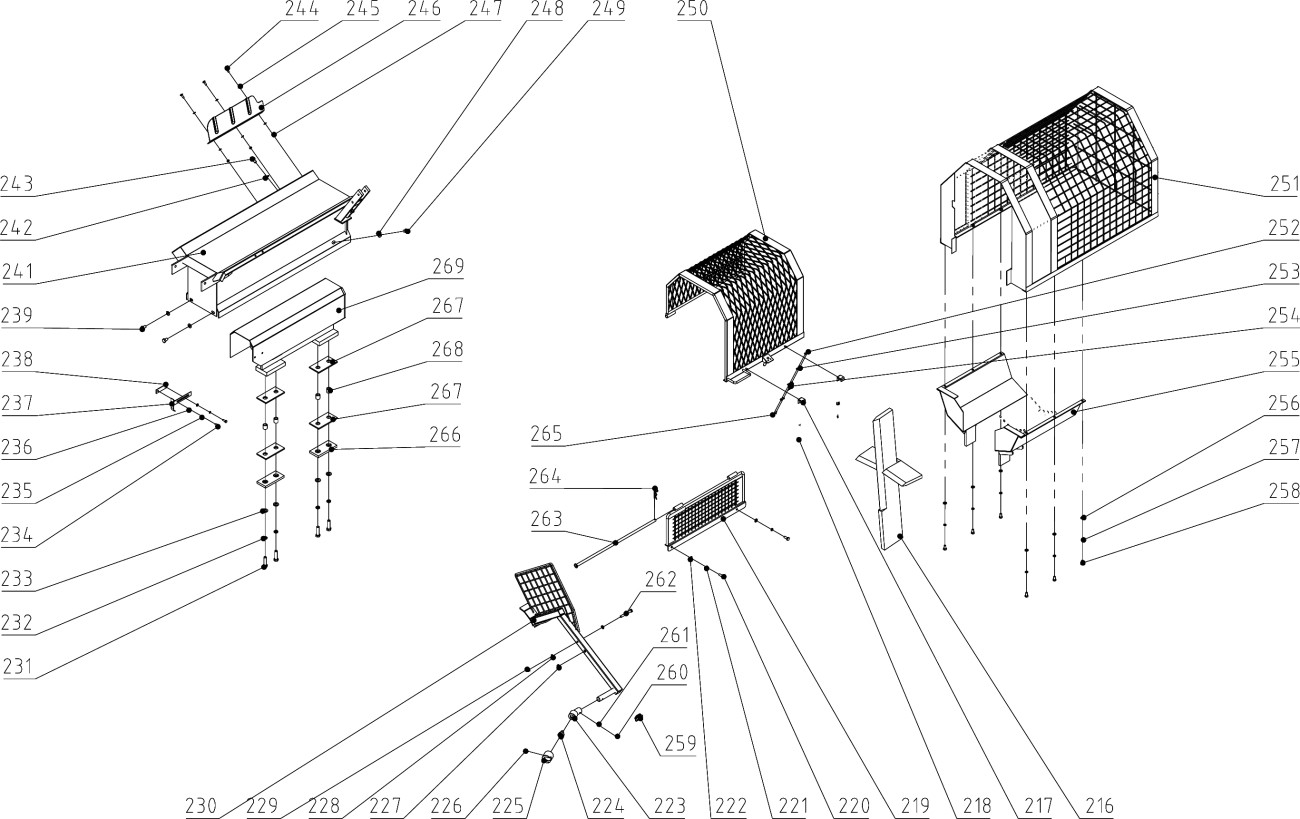

Technical drawing
3686_4
Spare part list
Position Name Order no. Price incl. VAT
216 in stock Cross Wedge
#216 230216
230216
726,00 Kč
726,00 Kč
217 Hook
#217 230217
230217
218 Spring
#218 230218
230218
219 Minor Steel Mesh
#219 230219
230219
220 Bolt M8x20
#220 230220
230220
221 Elastic Washer 8
#221 230221
230221
222 Plain Washer 8
#222 230222
230222
223 Iron Handle Sleeve
#223 230223
230223
224 in stock Button Switch for Log Lock Handle
#224 230224
230224
350,90 Kč
350,90 Kč
225 Button Cover
#225 230225
230225
226 Screw M4x8
#226 230226
230226
227 Bushing
#227 230227
230227
228 Plain Washer 8
#228 230228
230228
229 Locknut M8
#229 230229
230229
230 Log Lock Handle
#230 230230
230230
231 Bolt M12x45
#231 230231
230231
232 Elastic Washer 12
#232 230232
230232
233 Plain Washer 12
#233 230233
230233
234 Bolt M6x18
#234 230234
230234
235 Elastic Washer 6
#235 230235
230235
236 Plain Washer 6
#236 230236
230236
237 Limit Plate
#237 230237
230237
238 Clamping Plate
#238 230238
230238
239 Bolt M10x16
#239 230239
230239
240 Plain Washer 10
#240 230240
230240
241 Machine Case
#241 230241
230241
242 Plain Washer 10
#242 230242
230242
243 Bolt M10x16
#243 230243
230243
244 Screw M6x16
#244 230244
230244
245 Plain Washer 6
#245 230245
230245
246 Guard Plate
#246 230246
230246
247 Locknut M6
#247 230247
230247
248 Plain Washer 10
#248 230248
230248
249 Bolt M10x16
#249 230249
230249
250 Main Steel Mesh
#250 230250
230250
251 Protecting Wire Net
#251 230251
230251
252 Locknut M4
#252 230252
230252
253 Plain Washer 4
#253 230253
230253
254 Key For Limit Switch
#254 230254
230254
255 Side Rail
#255 230255
230255
256 Plain Washer 8
#256 230256
230256
257 Elastic Washer 8
#257 230257
230257
258 Bolt M8x16
#258 230258
230258
259 Tube Plug 30
#259 230259
230259
260 Screw M5x10
#260 230260
230260
261 Plain Washer 5
#261 230261
230261
262 Bolt M8x65
#262 230262
230262
263 Connecting Shaft
#263 230263
230263
264 Clip 3
#264 230264
230264
265 Screw M4x12
#265 230265
230265
266 Retaining Plate
#266 230266
230266
267 0 pcs in stock Sliding Plate D3
#267 230267
230267
242,00 Kč
242,00 Kč
268 Spacer
#268 230268
230268
269 Cylinder Cover
#269 230269
230269
270 Cylinder D3
#270 230270
230270
