  4. 3686 VARIMATIC 300
  5. 3686_2

3686_2

3686_2

Order no.: 3686_2

Documents to download
Format Name Size
JPG Rozkres ve vysokém rozlišení 665 kB

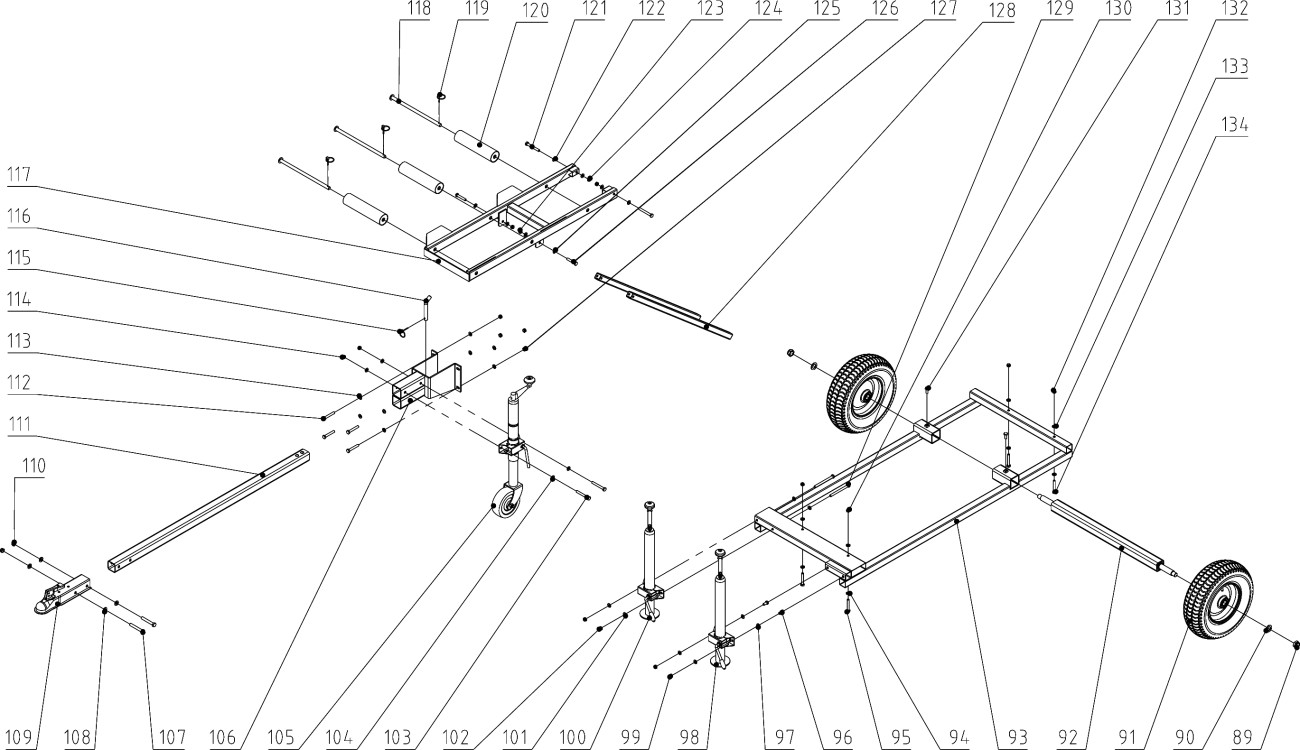

Technical drawing
3686_2
Spare part list
Position Name Order no. Price incl. VAT
89 Locknut M20
#89 230089
230089
90 Plain Washer 20
#90 230090
230090
91 last 1 pc Transport Wheel
#91 230091
230091
847,00 Kč
847,00 Kč
92 Wheel Shaft
#92 230092
230092
93 Chassis
#93 230093
230093
94 Plain Washer 10
#94 230094
230094
95 Bolt M10x65
#95 230095
230095
96 Bolt M10X20
#96 230096
230096
97 Plain Washer 10
#97 230097
230097
98 last 2 pcs Support Leg
#98 230098
230098
726,00 Kč
726,00 Kč
99 Locknut M10
#99 230099
230099
100 Support Leg
#100 230100
230100
101 Plain Washer 10
#101 230101
230101
102 Locknut M10
#102 230102
230102
103 Bolt M10x80
#103 230103
230103
104 Plain Washer 10
#104 230104
230104
105 last 2 pcs Nose Wheel
#105 230105
230105
1 391,50 Kč
1 391,50 Kč
106 Connecting Piece
#106 230106
230106
107 Bolt M12x80
#107 230107
230107
108 Plain Washer 12
#108 230108
230108
109 Coupler 2*2
#109 230109
230109
110 Locknut M12
#110 230110
230110
111 Connecting Tube
#111 230111
230111
112 Bolt M10x65
#112 230112
230112
113 Plain Washer 10
#113 230113
230113
114 Locknut M10
#114 230114
230114
115 Lock Pin
#115 230115
230115
116 Clevis Pin
#116 230116
230116
117 Rolling Support
#117 230117
230117
118 Fixed Shaft
#118 230118
230118
119 Shaft End Bolt
#119 230119
230119
120 Roller
#120 230120
230120
121 Bolt M10x80
#121 230121
230121
122 Plain Washer 10
#122 230122
230122
123 Locknut M10
#123 230123
230123
124 Locknut M10
#124 230124
230124
125 Plain Washer 10
#125 230125
230125
126 Bolt M10x55
#126 230126
230126
127 Locknut M10
#127 230127
230127
128 Support Stand
#128 230128
230128
129 Bolt M10x120
#129 230129
230129
130 Locknut M10
#130 230130
230130
131 Bolt M10X25
#131 230131
230131
132 Locknut M10
#132 230132
230132
133 Plain Washer 10
#133 230133
230133
134 Bolt M10X65
#134 230134
230134
